Husqvarna RRT 900 (96093000900) (2009-04) Tiller

Model: RRT 900 (96093000900) (2009-04)

Back To Assemblies

Save Part Not Listed?
product name

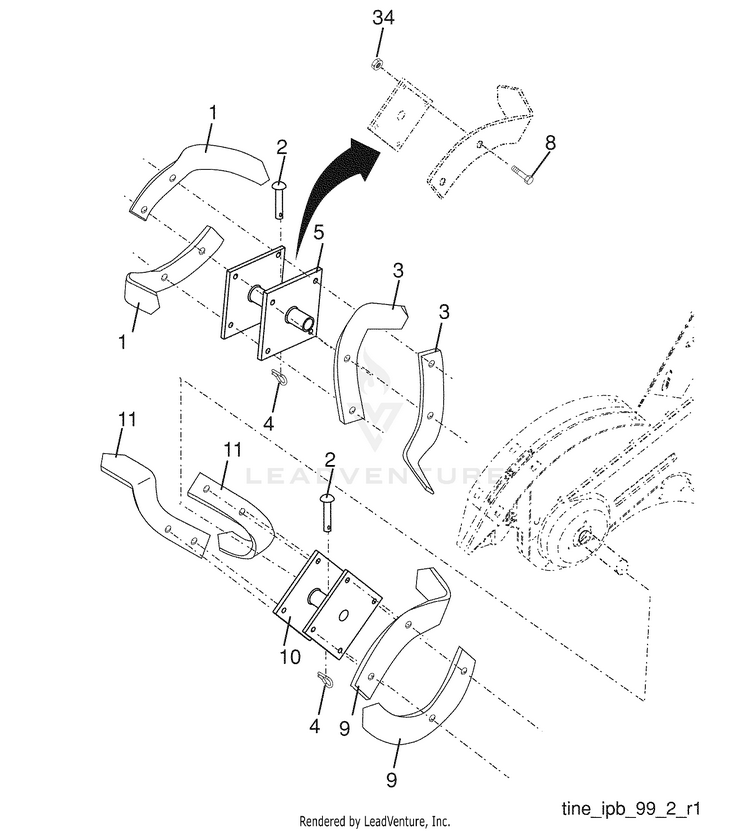

Tine Assembly

...
...
1
TINE.LH.12"(72L) HUS-532006554
...
2
PIN RETAINING SCREW HUS-532132673
...
3
TINE.LH.12"(72L) HUS-532006554
...
4
SPRING RETAINER HUS-532003146
...
5
HUB.ASM.LH.14.PNT HUS-584309601
...
8
BOLT.HEX.001X20.37-24X1.ZINC HUS-874610616
...
9
TINE.RH.12"(72R) HUS-532006555
...
10
HUB.ASM.RH.14".BLACK.TILLER HUS-532132722
...
11
TINE.RH.12"(72R) HUS-532006555
...
34
NUT CROWNLOCK 3/8-24 HUS-873540600
