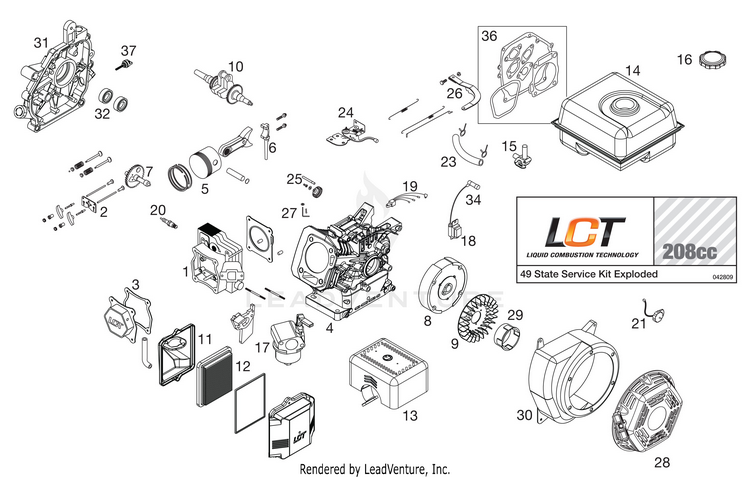

Husqvarna RRT 900 (96093000900) (2009-04) Tiller

Model: RRT 900 (96093000900) (2009-04)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
CYLINDER HEAD.208CC.EPA W/GASK HUS-582045701
...
2
KIT.PUSH.ROD.SRV(SK208-1001) HUS-532420579
...
3
VALVE COVER LCT 179/208 HUS-587176901
...
4
KIT.CYLINDER.SRV(SK208-1300) HUS-532420581
...
5
KIT.PISTON.SRV(SK208-1400) HUS-532420582
...
6
KIT.CONNECT.ROD.SRV(SK208-1500 HUS-532420583
...
7
CAMSHAFT.208CC.EPA HUS-582051401
...
8
FLYWHL.ASSY.MANUL.SK2081700 HUS-532429236
...
9
FLYWHEEL FAN 420586 HUS-532420586
...
10
RP KIT.CRANKSHAFT.SRV HUS-532420587
...
11
KIT.AIRFLTR.ASY.SRV(SK208-2002 HUS-532420588
...
12
FILTER.ASSEM.PANEL.LCT.208CC HUS-532432715
...
13
KIT.49STATE.MUFFLER(SK208-2101 HUS-532420590
...
14
KIT FUEL TNK.ASM(LCT SK2082205 HUS-583569901
...
15
FUEL.PETCOCK.1/4".LCT HUS-532429597
...
16
KIT.49STATE.FUEL.TK(SK208-2300 HUS-532420593
...
17
CARB.KIT.W/O.SPACER.LCT.208CC HUS-585020301
...
18
KIT.IGNITION.COIL HUS-532420595
...
19
KIT.IGNITION.COIL HUS-532420595
...
20
SPARK.PLUG(2083810) HUS-532424939
...
21
KIT.ENGINE.ON/OFF.LCT.208CC HUS-532420598
...
23
KIT.FUEL.HOSE.208CC.SING/STAGE HUS-532438014
...
24
KIT.THROTTLE.CONTRL(SK206-2800 HUS-532420599
...
25
GOVENOR.GEARS ASM(SK2082900) HUS-532429646
...
26
CARBURETTOR GOVERNOR LINK.ASM. HUS-581768701
...
27
KIT.GOVERNOR.CRANK(SK208-3100) HUS-532420602
...
28
KIT.RECOIL.STARTER(HEX) BLACK HUS-532420603
...
29
KIT.STARTER.CUP.SRV(SK208-3300 HUS-532420604
...
30
KIT.BLOWER.HSG.SRV(SK208-3400) HUS-532420605
...
31
COVER.CRANKCASE.LCT.208CC HUS-583630001
...
32
SEAL KIT (2 PCS) HUS-532429599
...
34
SPARK.PLUG.BOOT(SK2083800) HUS-532429246
...
37
DIPSTICK SMALL HUS-532420961
