Husqvarna ROYAL 53 Walk Behind Mower

Model: ROYAL 53

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

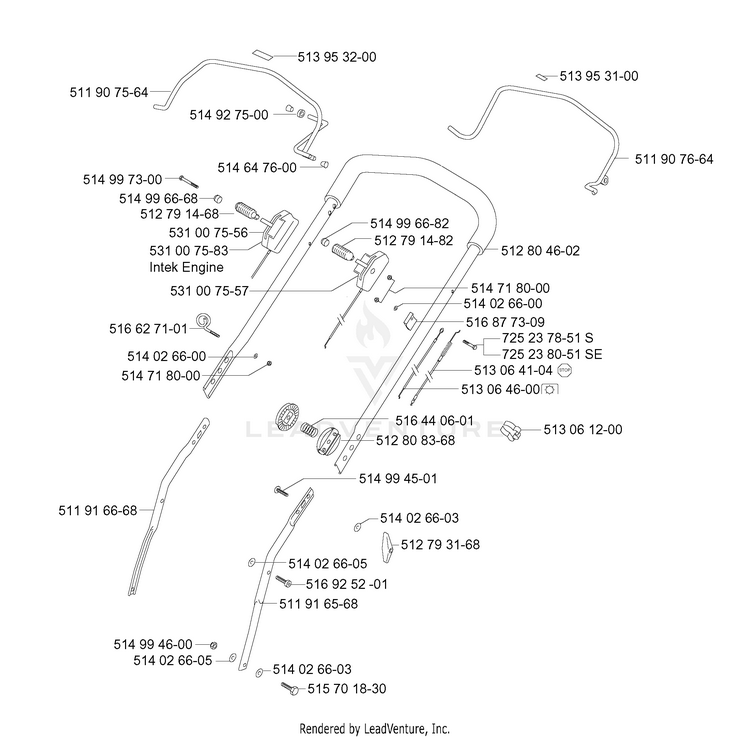

HANDLE & CONTROLS 17

...
...
511 90 76-64
BAIL ARM: DRIVE HUS-511907668
...
531 00 75-57
NEEDS DESCRIPTION HUS-531007557
...
514 02 66-05
WASHER HUS-514026605
...
512 79 14-82
HANDLE HUS-512791482
...
513 06 41-04
CABLE, ENGINE BRAKE HUS-513064104
...
516 87 73-09
BRACKET HUS-516877309
...
513 06 12-00
CABLE CLIP STANDARD HUS-513061200
...
516 44 06-01
SPRING HUS-516440601
...
531 00 75-56
NEEDS DESCRIPTION HUS-531007556
...
516 92 52 -01
SCREW HUS-516924101
...
514 02 66-03
WASHER HUS-514026603
...
511 90 75-64
BAIL ARM:BRAKE HUS-511907564
...
512 80 83-68
HUS-512808368
...
531 00 75-83
NEEDS DESCRIPTION INTEK ENGINE HUS-531007583
...
512 79 14-68
Handle HUS-512791468
...
513 95 32-00
DECAL HUS-513953200
...
516 62 71-01
HOLDER HUS-513076300
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
514 64 76-00
Knob HUS-514647600
...
514 99 66-82
REGULATOR KNOB (RED) HUS-514996682
...
513 95 31-00
Decal HUS-513953100
...
511 91 65-68
LOWER HANDLE HUS-511916568
...
514 99 73-00
HEAD BOLT HEX M6 HUS-514997300
...
514 99 66-68
HUS-514996668
...
513 06 46-00
CABLE, DRIVE 53CM HUS-513064600
...
512 79 31-68
WINGNUT HUS-512793167
...
514 02 66-00
WASHER HUS-514026600
...
725 23 80-51
SCREW M6X50 SE HUS-725238051
...
725 23 78-51
SCREW S HUS-725237851
...
514 99 45-01
Bolt HUS-514994501
...
512 80 46-02
COMFORT HANDLE W/ GRIP HUS-512804602
...
514 99 46-00
NUT HUS-514994600
...
514 92 75-00
NEEDS DESCRIPTION HUS-514927500
...
515 70 18-30
SCREW HUS-725245751
...
511 91 66-68
HUS-511916668
