Husqvarna ROYAL 53 Walk Behind Mower

Model: ROYAL 53

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

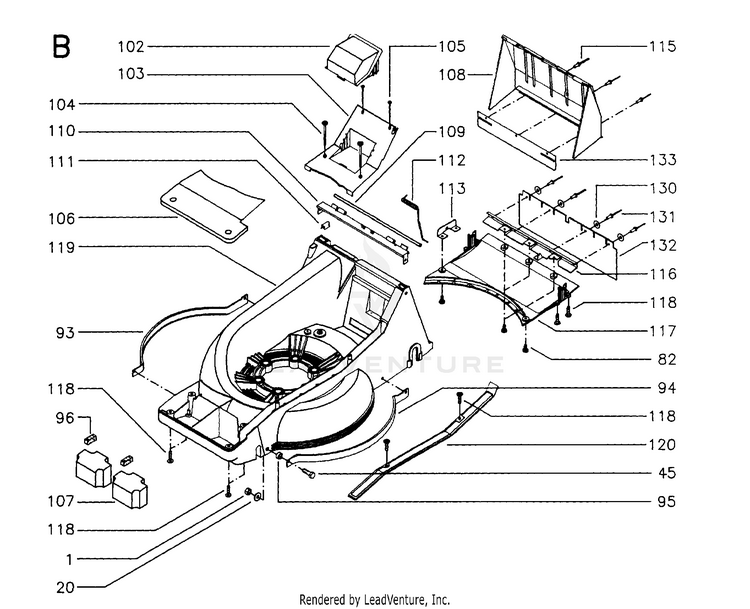

FRAME 11

...
...
109
Shaft HUS-516490201
...
117
Cover HUS-516848911
...
118
SCREW HUS-516924701
...
131
RIVET HUS-516924000
...
95
SLEEVE HUS-516509601
...
115
RIVET HUS-516927900
...
132
PROTECTOR HUS-516855000
...
133
BRACKET HUS-516627611
...
102
Cover HUS-516850511
...
130
WASHER HUS-516492301
...
110
BRACKET TOP HUS-512807968
...
1
LOCKNUT M8 HUS-732211801
...
113
BOTTOM PLATE BRACKET HUS-513075400
...
106
DECK FRONT COVER HUS-516873907
...
112
NEEDS DESCRIPTION HUS-516612G01
...
82
SCREW HUS-515745046
...
94
DECK PROTECTOR LH HUS-516614411
...
96
Damper HUS-516841100
...
93
DECK PROTECTOR RH HUS-516614311
...
105
SCREW HUS-516924901
...
107
COUNTERWEIGHT HUS-516852200
...
116
Bracket HUS-516492701
...
45
SCREW HUS-725245371
...
111
Washer HUS-516924400
...
104
SCREW HUS-516924801
...
20
SPACER HUS-734116441
...
120
LINK ARM COVER HUS-511918268
...
108
Cover HUS-516873797
...
119
DECK HUS-516873607
...
103
COVER HUS-516850411
