Husqvarna ROYAL 53 Walk Behind Mower

Model: ROYAL 53

Back To Assemblies

Save Part Not Listed?
product name

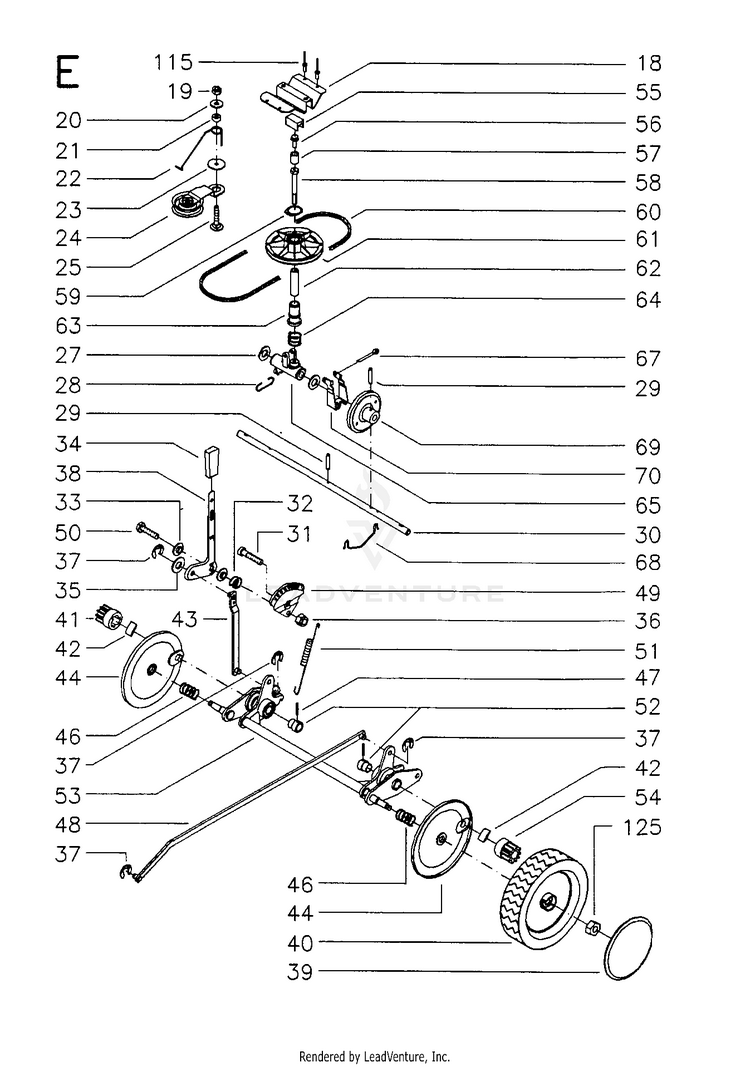

DRIVE 5

...
...
38
CONTROL HUS-516496611
...
37
Ring HUS-516905100
...
60
BELT HUS-531005032
...
23
WASHER HUS-516492201
...
68
HOLDER SPACER HUS-516441401
...
61
DISC HUS-513906200
...
56
SCREW HUS-516924101
...
30
REAR AXLE SHAFT HUS-516614200
...
36
NUT HUS-732212001
...
58
BOLT HUS-516909001
...
67
PIN HUS-516916201
...
49
SEGMENT HUS-516805800
...
62
SPACER HUS-516922000
...
25
SCREW HUS-515711630
...
48
STAY HUS-516708801
...
29
PIN HUS-721431250
...
43
STAY HUS-516708701
...
63
SLEEVE HUS-513950600
...
59
SNAP RING HUS-516909700
...
52
SLEEVE HUS-516614001
...
46
SPRING HUS-514930700
...
70
ARM HUS-513952700
...
34
HANDLE HUS-516874807
...
53
HUS-516807100
...
57
SPACER HUS-516495101
...
27
WASHER HUS-515796033
...
41
PINION, RIGHT HUS-516921500
...
18
PLATE HUS-516495001
...
42
PAWL HUS-514883100
...
47
PIN HUS-721421000
...
39
WHEEL COVER HUS-516845808
...
125
NUT HUS-732212031
...
44
BACKPLATE 9" HUS-512797000
...
32
Spring HUS-516499201
...
69
DISC HUS-513090005
...
55
SLIDE BEARING HUS-516850809
...
19
LOCKNUT M6 HUS-732211601
...
28
CLIP HUS-513951200
...
64
SPRING HUS-516449601
...
54
PINION, LEFT HUS-516921600
...
65
VARIATOR HOUSING HUS-513077900
...
24
BELT TENSIONER HUS-513081600
...
22
SPRING HUS-516631601
...
40
WHEEL HUS-516824900
...
21
SPACER HUS-516491901
...
33
Washer HUS-515139765
...
115
RIVET HUS-516927900
...
31
SCREW HUS-516924101
...
50
Screw HUS-725249771
...
20
SPACER HUS-734116441
...
51
SPRING HUS-516494701
...
35
WASHER HUS-516440701
