Husqvarna ROYAL 53 Walk Behind Mower

Model: ROYAL 53

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

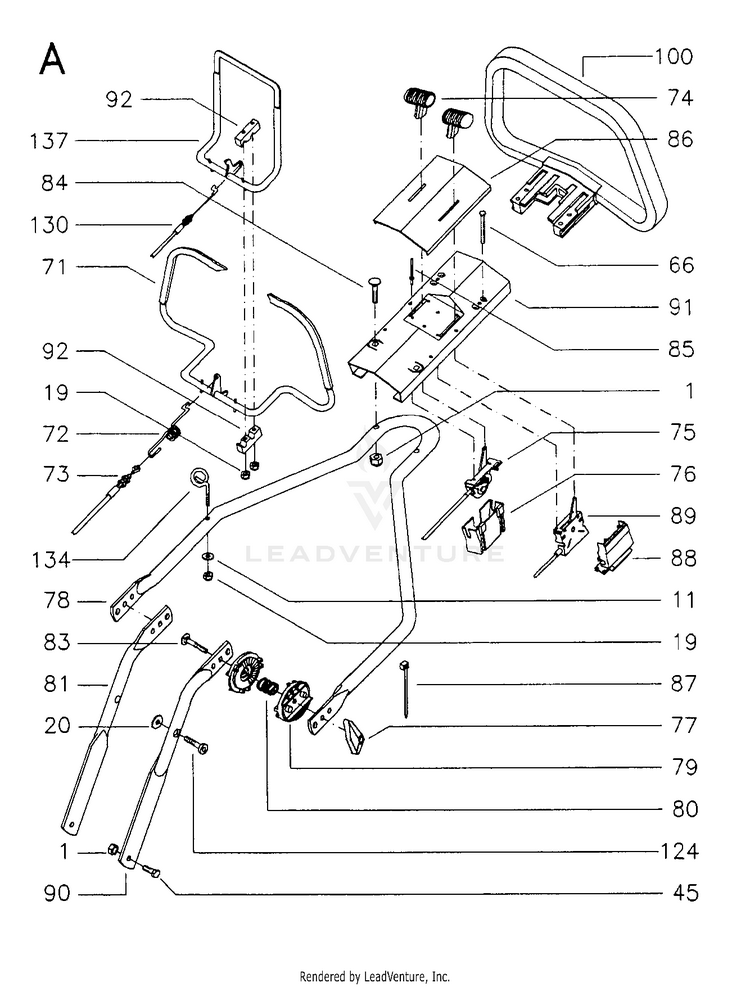

HANDLE & CONTROLS 11

...
...
72
SPRING HUS-516491001
...
19
LOCKNUT M6 HUS-732211601
...
79
ADJUSTER HUS-516858911
...
11
Washer HUS-734115301
...
78
HANDLE HUS-516612311
...
75
WIRE R 53S/SE HUS-517810048
...
76
Cover HUS-516847311
...
92
HUS-516848300
...
87
Tie-Wrap HUS-516844509
...
124
SCREW HUS-516924101
...
83
SCREW HUS-727646101
...
1
LOCKNUT M8 HUS-732211801
...
81
HANDLE HUS-516497211
...
85
RIVET HUS-516925100
...
84
SCREW HUS-727645901
...
73
CABLE HUS-516824302
...
74
KNOB HUS-516874707
...
80
SPRING HUS-516440601
...
71
LOOP HUS-516700207
...
134
HOLDER HUS-513076300
...
91
PANEL HUS-516704211
...
88
COVER HUS-516832500
...
86
PANEL HUS-516855791
...
90
LOWER HANDLE HUS-511916568
...
137
HUS-516700307
...
20
SPACER HUS-734116441
...
100
HANDLE HUS-516848411
...
89
NEEDS DESCRIPTION HUS-516823104
...
66
SCREW HUS-516922701
...
45
SCREW HUS-725245371
...
77
WINGNUT HUS-512793167
...
130
NEEDS DESCRIPTION HUS-516829800
