Husqvarna ROYAL 53 Walk Behind Mower

Model: ROYAL 53

Back To Assemblies

Save Part Not Listed?
product name

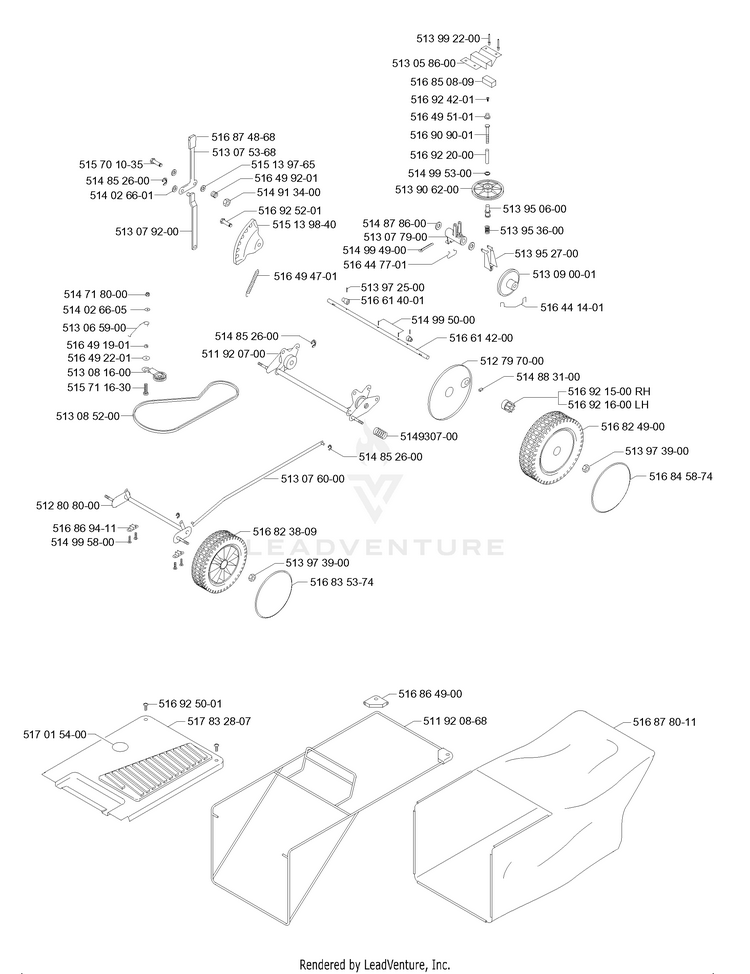

WHEEL & DEPTH STAKE ASSEMBLY 4

...
...
516 49 47-01
SPRING HUS-516494701
...
515 70 10-35
BOLT HEX HEAD HUS-515701035
...
516 87 80-11
BAG HUS-516878011
...
513 90 62-00
DISC HUS-513906200
...
516 44 77-01
CLIP HUS-513951200
...
516 84 58-74
HUB CAP 9" HUS-516845874
...
516 85 08-09
SLIDE BEARING HUS-516850809
...
513 97 39-00
HUS-513973900
...
513 07 92-00
LEVER ARM HUS-513079200
...
514 02 66-01
HUS-514026601
...
513 09 00-01
DISC HUS-513090005
...
516 61 40-01
SLEEVE HUS-516614001
...
516 49 51-01
SPACER HUS-516495101
...
516 49 19-01
SPACER HUS-516491901
...
513 07 53-68
HEIGHT ADJUST LEVER HUS-513075368
...
516 92 42-01
SCREW HUS-516924101
...
516 87 48-68
HUS-516874868
...
513 07 60-00
HEIGHT ADJUST LINK HUS-513076000
...
516 92 15-00
PINION, RIGHT RH HUS-516921500
...
514 85 26-00
RETAINING RING HUS-514852600
...
516 44 14-01
HOLDER SPACER HUS-516441401
...
515 13 98-40
SEGMENT HUS-516805800
...
516 82 49-00
WHEEL HUS-516824900
...
513 95 06-00
SLEEVE HUS-513950600
...
513 07 79-00
VARIATOR HOUSING HUS-513077900
...
513 95 36-00
SPRING HUS-513953600
...
513 08 52-00
V BELT 43IN HUS-513085200
...
511 92 08-68
BAG FRAME HUS-511920868
...
513 08 16-00
BELT TENSIONER HUS-513081600
...
514 99 53-00
Clip HUS-514995300
...
516 49 92-01
Spring HUS-516499201
...
514 88 31-00
PAWL HUS-514883100
...
513 06 59-00
SPRING, BELT TENSIONER HUS-513065900
...
516 92 16-00
PINION, LEFT LH HUS-516921600
...
516 61 42-00
REAR AXLE SHAFT HUS-516614200
...
511 92 07-00
REAR AXLE ASSY HUS-511920700
...
516 92 20-00
SPACER HUS-516922000
...
516 82 38-09
WHEEL HUS-516823809
...
514 99 58-00
SCREW HUS-514995800
...
514 99 49-00
HUS-514994900
...
513 97 25-00
DRIVE PIN HUS-513972500
...
517 83 28-07
COVER HUS-517832807
...
516 90 90-01
BOLT HUS-516909001
...
515 71 16-30
SCREW HUS-515711630
...
516 83 53-74
HUB CAP 8" HUS-516835374
...
5149307-00
SPRING HUS-514930700
...
514 99 50-00
PIN HUS-514995000
...
513 95 27-00
ARM HUS-513952700
...
516 92 52-01
SCREW HUS-516924101
...
512 80 80-00
FRONT AXLE ASSY HUS-512808000
...
513 99 22-00
RIVET HUS-513992200
...
517 01 54-00
Decal HUS-517015400
...
516 92 50-01
SCREW HUS-516924701
...
514 91 34-00
Nut HUS-514913400
...
516 86 94-11
CLAMP HUS-516869411
...
515 13 97-65
Washer HUS-515139765
...
516 49 22-01
WASHER HUS-516492201
...
516 86 49-00
BRACKET HUS-516864900
...
514 02 66-05
WASHER HUS-514026605
...
514 87 86-00
WASHER HUS-514878600
...
513 05 86-00
HUS-513058600
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
512 79 70-00
BACKPLATE 9" HUS-512797000
