Husqvarna ROYAL 53 Walk Behind Mower

Model: ROYAL 53

Back To Assemblies

Save Part Not Listed?
product name

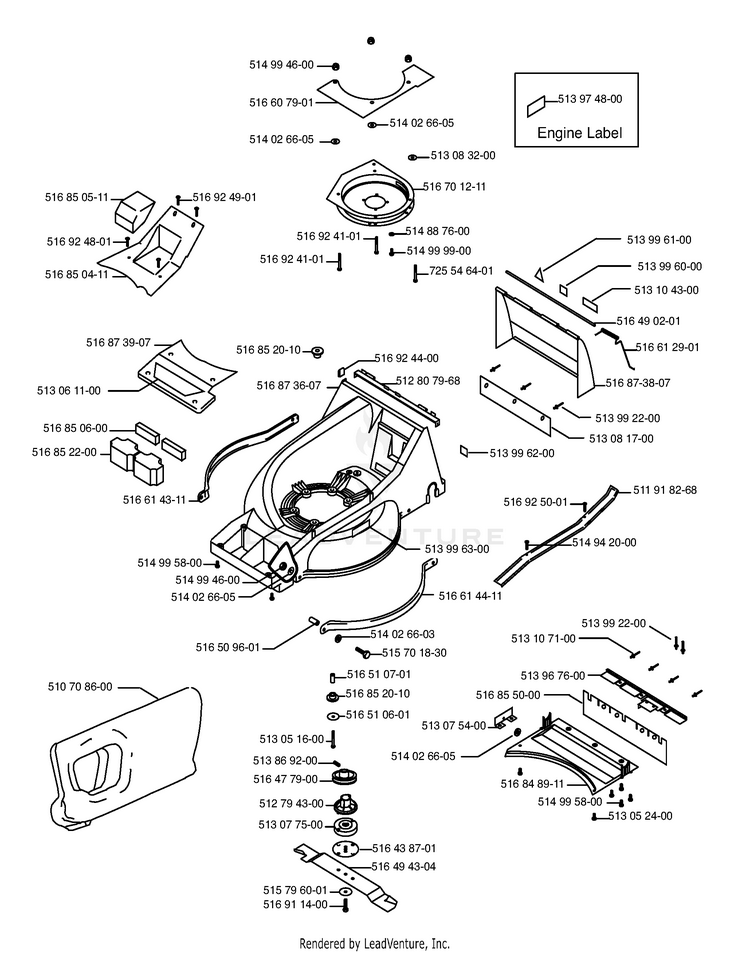

FRAME 4

...
...
513 86 92-00
Screw HUS-513869200
...
516 43 87-01
STEEL PLATE ADAPTER HUS-516438701
...
516 92 44-00
Washer HUS-516924400
...
514 99 46-00
NUT HUS-514994600
...
516 60 79-01
Protector HUS-516607901
...
514 02 66-05
WASHER HUS-514026605
...
516 85 20-10
BUSHING HUS-516852010
...
516 51 06-01
WASHER HUS-516510601
...
515 70 18-30
SCREW HUS-725245751
...
516 49 02-01
Shaft HUS-516490201
...
513 08 32-00
HUS-513083200
...
511 91 82-68
LINK ARM COVER HUS-511918268
...
516 49 43-04
BLADE FOR ROYAL 53 HUS-516494310
...
516 70 12-11
ADAPTER HUS-512807867
...
516 92 41-01
SCREW HUS-516924101
...
513 99 61-00
DECAL HUS-513996102
...
510 70 86-00
HUS-531030104
...
516 84 89-11
Cover HUS-516848911
...
513 96 76-00
BRACKET ASSY HUS-513967600
...
513 08 17-00
SAFETY FLAP EXTENSION HUS-513081700
...
513 10 71-00
POP RIVET: LARGE HEAD HUS-513107100
...
516 87 38-07
COVER HUS-516873807
...
516 85 50-00
PROTECTOR HUS-516855000
...
513 99 60-00
HUS-513996000
...
516 91 14-00
BOLT HUS-516911400
...
516 51 07-01
Sleeve HUS-516510701
...
516 61 29-01
SPRING HUS-516612901
...
516 92 49-01
SCREW HUS-516924901
...
513 07 54-00
BOTTOM PLATE BRACKET HUS-513075400
...
513 05 16-00
SCREW M6X45 HUS-513051600
...
512 79 43-00
DRIVE BUSH DIA 25MM HUS-512794300
...
513 06 11-00
HUS-513061100
...
514 99 99-00
SCREW HUS-514999900
...
516 47 79-00
PULLEY HUS-516477900
...
513 99 63-00
HUS-513996300
...
516 85 22-00
COUNTERWEIGHT HUS-516852200
...
725 54 64-01
Screw HUS-725546401
...
515 79 60-01
WASHER HUS-515796001
...
514 99 58-00
SCREW HUS-514995800
...
516 61 43-11
DECK PROTECTOR RH HUS-516614311
...
513 99 62-00
HUS-513996200
...
516 92 48-01
SCREW HUS-516924801
...
513 97 48-00
DECAL ENGINE LABEL HUS-513974800
...
512 80 79-68
BRACKET TOP HUS-512807968
...
516 92 50-01
SCREW HUS-516924701
...
513 05 24-00
SCREW M6.5X16 SELF TAP HUS-513052400
...
516 85 05-11
Cover HUS-516850511
...
513 99 22-00
RIVET HUS-513992200
...
513 07 75-00
SPACER HUS-513077500
...
513 10 43-00
HUS-513104300
...
514 02 66-03
WASHER HUS-514026603
...
516 85 04-11
COVER HUS-516850411
...
516 87 39-07
DECK FRONT COVER HUS-516873907
...
516 85 06-00
HUS-516850600
...
516 87 36-07
DECK HUS-516873607
...
514 88 76-00
WASHER HUS-514887600
...
514 94 20-00
HUS-514942000
...
516 61 44-11
DECK PROTECTOR LH HUS-516614411
...
516 50 96-01
SLEEVE HUS-516509601
