Husqvarna ROYAL 53 Walk Behind Mower

Model: ROYAL 53

Back To Assemblies

Save Part Not Listed?
product name

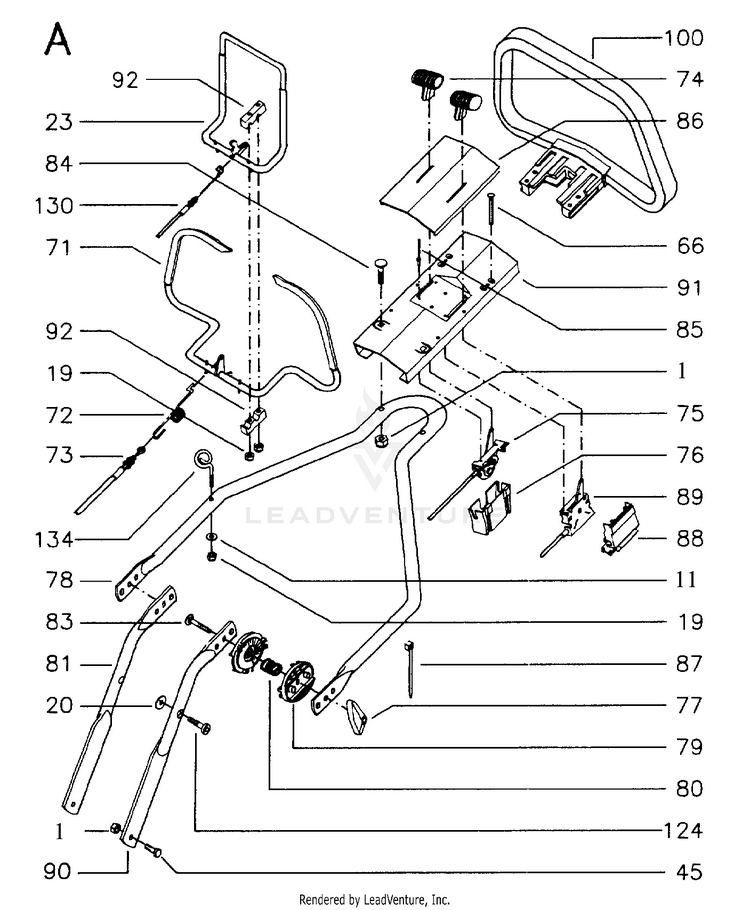

HANDLE & CONTROLS 4

...
...
59
GRIP HUS-516868311
...
19
WASHER HUS-516449101
...
15
SCREW HUS-727645701
...
17
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
7
Screw HUS-725249551
...
25
SCREW HUS-727645901
...
3
ROD HUS-516644201
...
21
LOOP HUS-516626307
...
2
CLUTCH ARM, GREY HUS-13989011
...
61
ARM HUS-516629501
...
12
WASHER HUS-515796001
...
26
HANDLE HUS-516712611
...
23
BOLT FLANGE HUS-725237651
...
22
NEEDS DESCRIPTION HUS-516630525
...
62
WIRE HUS-517810078
...
18
GUIDE HUS-516623301
...
1
HANDLE HUS-516874807
...
9
PRESSURE SPRING HUS-515118038
...
24
WIRE HUS-517810031
...
58
Tie-Wrap HUS-516844509
...
16
SEGMENT HUS-516805800
...
14
LOCKNUT M8 HUS-732211801
...
13
PLATE HUS-516626711
...
8
Washer HUS-515139765
...
10
NUT HUS-732212001
...
20
LOCKNUT M6 HUS-732211601
...
11
KNOB HUS-516911509
...
60
Nut HUS-516911300
