Husqvarna ROYAL 50 Walk Behind Mower

Model: ROYAL 50

Back To Assemblies

Save Part Not Listed?
product name

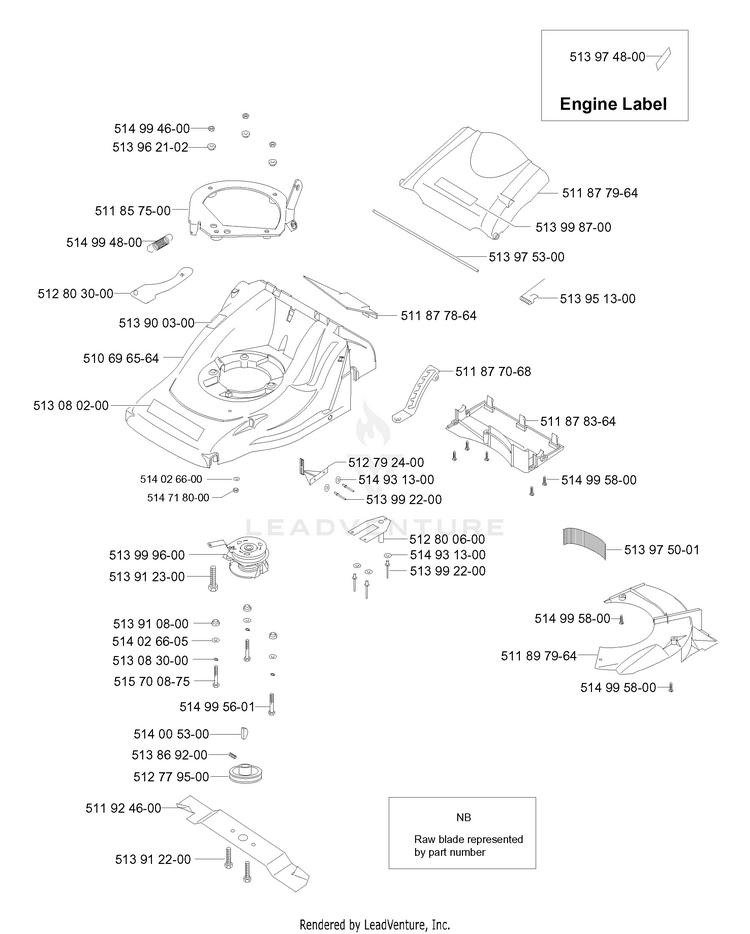

FRAME 6

...
...
513 95 13-00
SPRING HUS-513951300
...
511 87 78-64
PROTECTOR HUS-511877864
...
514 00 53-00
KEY HUS-514005300
...
513 99 87-00
NEEDS DESCRIPTION HUS-513998700
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
511 92 46-00
NEEDS DESCRIPTION HUS-511924600
...
514 99 58-00
SCREW HUS-514995800
...
515 70 08-75
BOLT HUS-515700875
...
513 99 96-00
NEEDS DESCRIPTION HUS-513999600
...
513 97 50-01
BRUSH HUS-513975001
...
514 02 66-00
WASHER HUS-514026600
...
513 90 03-00
DECAL HUS-513900300
...
512 79 24-00
BRACKET HUS-512792400
...
513 91 08-00
INSULATOR HUS-513910800
...
512 80 30-00
NEEDS DESCRIPTION HUS-512803000
...
511 85 75-00
BRACKET HUS-511857500
...
513 08 30-00
HUS-513083000
...
514 99 48-00
NEEDS DESCRIPTION HUS-514994800
...
514 99 46-00
NUT HUS-514994600
...
513 96 21-02
NEEDS DESCRIPTION HUS-513962102
...
513 08 02-00
NEEDS DESCRIPTION HUS-513080200
...
511 87 79-64
COVER HUS-511877964
...
513 86 92-00
Screw HUS-513869200
...
514 99 56-01
BOLT HUS-514995601
...
513 97 53-00
PIN HUS-513975300
...
513 99 22-00
RIVET HUS-513992200
...
512 80 06-00
NEEDS DESCRIPTION HUS-512800600
...
511 87 83-64
COVER HUS-511878364
...
514 02 66-05
WASHER HUS-514026605
...
510 69 65-64
NEEDS DESCRIPTION HUS-510696564
...
511 87 70-68
PLATE HUS-511877068
...
513 91 23-00
SCREW HUS-513912300
...
511 89 79-64
NEEDS DESCRIPTION HUS-511897964
...
512 77 95-00
V-BELT HUS-512779500
...
514 93 13-00
Washer HUS-514931300
...
513 97 48-00
DECAL ENGINE LABEL HUS-513974800
...
513 91 22-00
SCREW HUS-513912200
