Husqvarna ROYAL 50 Walk Behind Mower

Model: ROYAL 50

Back To Assemblies

Save Part Not Listed?
product name

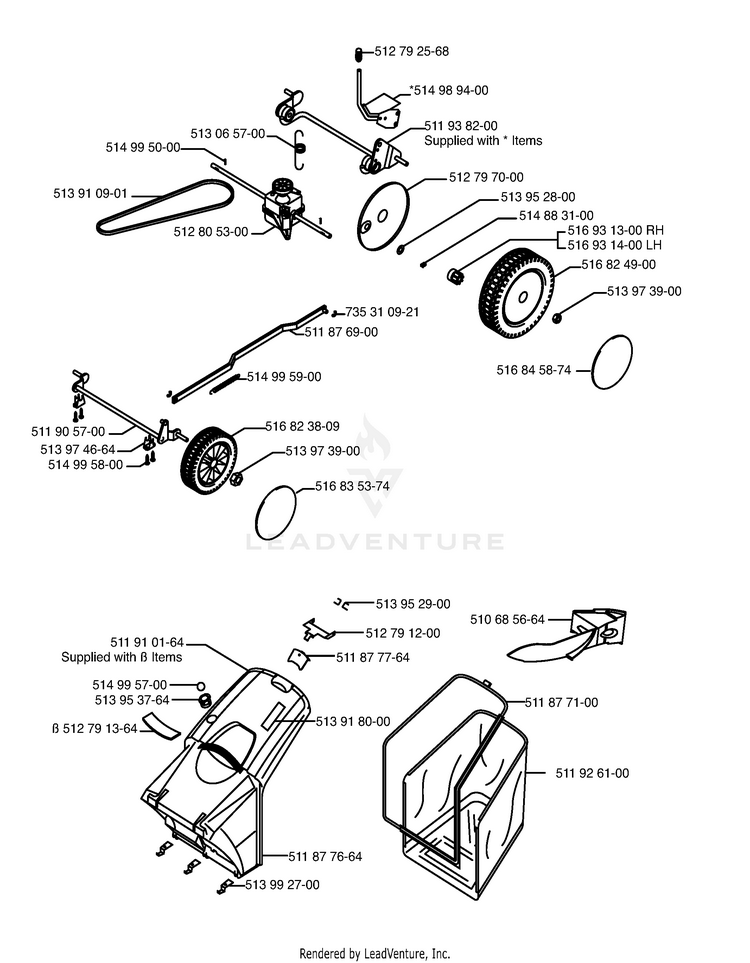

WHEELS & TIRES 5

...
...
514 98 94-00
NEEDS DESCRIPTION HUS-514989400
...
511 90 57-00
NEEDS DESCRIPTION HUS-511905700
...
513 95 28-00
WASHER HUS-513952800
...
512 79 25-68
KNOB HUS-512792568
...
513 06 57-00
NEEDS DESCRIPTION HUS-513065700
...
516 93 14-00
PINION LH HUS-516931400
...
511 87 71-00
FRAME HUS-511877100
...
512 80 53-00
NEEDS DESCRIPTION HUS-512805300
...
512 79 12-00
CATCH HUS-512791200
...
513 95 29-00
PIN HUS-513952900
...
514 99 50-00
PIN HUS-514995000
...
514 88 31-00
PAWL HUS-514883100
...
513 97 39-00
HUS-513973900
...
512 79 13-64
NEEDS DESCRIPTION HUS-512791364
...
511 87 76-64
PLATE HUS-511877664
...
511 91 01-64
NEEDS DESCRIPTION HUS-511910164
...
511 87 69-00
SHAFT HUS-511876900
...
516 84 58-74
HUB CAP 9" HUS-516845874
...
513 91 80-00
HARDTOP LABEL HUS-513918000
...
516 93 13-00
NEEDS DESCRIPTION RH HUS-516931300
...
512 79 70-00
BACKPLATE 9" HUS-512797000
...
516 82 38-09
WHEEL HUS-516823809
...
735 31 09-21
E-RING 5 HUS-735310920
...
510 68 56-64
PLUG HUS-510685664
...
514 99 58-00
SCREW HUS-514995800
...
513 95 37-64
HOLDER HUS-513953764
...
513 97 46-64
CLAMP HUS-513974664
...
511 93 82-00
NEEDS DESCRIPTION SUPPLIED WITH * ITEMS HUS-511938200
...
514 99 57-00
BALL HUS-514995700
...
513 91 09-01
NEEDS DESCRIPTION HUS-513910901
...
513 99 27-00
SUPPORT HUS-513992700
...
511 92 61-00
NEEDS DESCRIPTION HUS-511926100
...
511 87 77-64
COVER HUS-511877764
...
516 83 53-74
HUB CAP 8" HUS-516835374
...
516 82 49-00
WHEEL HUS-516824900
...
514 99 59-00
SPRING HUS-514995900
