Husqvarna ROYAL 50 Walk Behind Mower

Model: ROYAL 50

Back To Assemblies

Save Part Not Listed?
product name

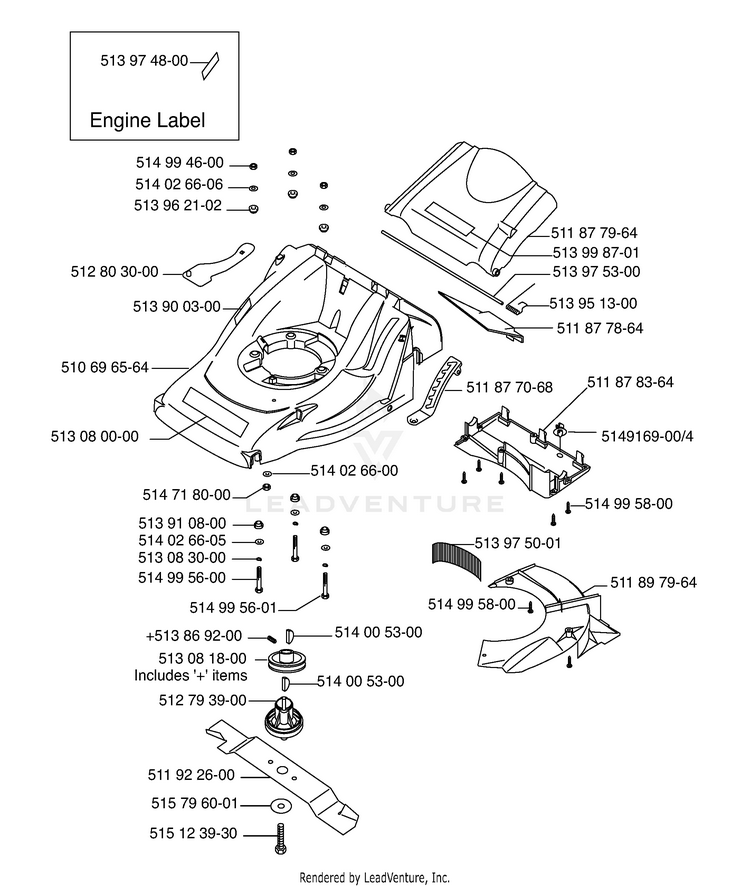

FRAME 5

...
...
514 99 56-01
BOLT HUS-514995601
...
513 97 48-00
DECAL HUS-513974800
...
511 92 26-00
NEEDS DESCRIPTION HUS-511922600
...
514 00 53-00
KEY HUS-514005300
...
510 69 65-64
NEEDS DESCRIPTION HUS-510696564
...
513 91 08-00
INSULATOR HUS-513910800
...
513 97 50-01
BRUSH HUS-513975001
...
513 99 87-01
NEEDS DESCRIPTION HUS-513998701
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
511 89 79-64
NEEDS DESCRIPTION HUS-511897964
...
514 99 58-00
SCREW HUS-514995800
...
512 80 30-00
NEEDS DESCRIPTION HUS-512803000
...
5149169-00/4
NEEDS DESCRIPTION HUS-5149169004
...
514 99 56-00
BOLT HUS-514995600
...
511 87 78-64
PROTECTOR HUS-511877864
...
515 79 60-01
WASHER HUS-515796001
...
512 79 39-00
NEEDS DESCRIPTION HUS-512793900
...
511 87 70-68
PLATE HUS-511877068
...
513 95 13-00
SPRING HUS-513951300
...
513 97 53-00
PIN HUS-513975300
...
515 12 39-30
SCREW HUS-515123931
...
513 90 03-00
DECAL HUS-513900300
...
514 99 46-00
NUT HUS-514994600
...
514 02 66-00
WASHER HUS-514026600
...
513 08 30-00
HUS-513083000
...
511 87 83-64
COVER HUS-511878364
...
514 02 66-05
WASHER HUS-514026605
...
513 08 18-00
NEEDS DESCRIPTION INCLUDES '+' ITEMS HUS-513081800
...
511 87 79-64
COVER HUS-511877964
...
513 86 92-00
Screw + HUS-513869200
...
513 96 21-02
NEEDS DESCRIPTION HUS-513962102
...
514 02 66-06
NEEDS DESCRIPTION HUS-514026606
...
513 08 00-00
NEEDS DESCRIPTION HUS-513080000
