Husqvarna ROYAL 50 Walk Behind Mower

Model: ROYAL 50

Back To Assemblies

Save Part Not Listed?
product name

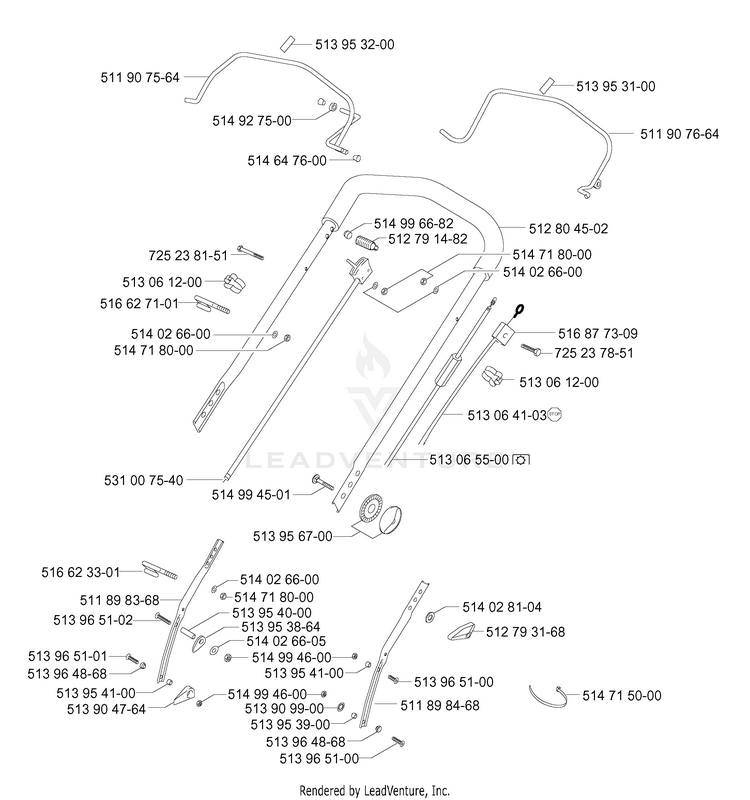

HANDLE & CONTROLS 2

...
...
513 06 12-00
CABLE CLIP STANDARD HUS-513061200
...
512 79 31-68
WINGNUT HUS-512793167
...
514 02 66-05
WASHER HUS-514026605
...
513 95 31-00
Decal HUS-513953100
...
514 02 66-00
WASHER HUS-514026600
...
513 95 67-00
CONTROL HUS-513956700
...
514 71 50-00
Cable Tie HUS-514715000
...
513 95 32-00
DECAL HUS-513953200
...
513 95 39-00
SLEEVE HUS-513953900
...
513 95 41-00
SPACER HUS-513954100
...
512 79 14-82
HANDLE HUS-512791482
...
516 87 73-09
BRACKET HUS-516877309
...
513 96 51-01
NEEDS DESCRIPTION HUS-513965101
...
511 89 84-68
NEEDS DESCRIPTION HUS-511898468
...
725 23 81-51
SCREW M6X55 HUS-725238151
...
514 92 75-00
NEEDS DESCRIPTION HUS-514927500
...
514 02 81-04
WASHER HUS-514028104
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
513 96 48-68
NEEDS DESCRIPTION HUS-513964868
...
511 90 75-64
BAIL ARM:BRAKE HUS-511907564
...
725 23 78-51
SCREW HUS-725237851
...
516 62 71-01
HOLDER HUS-513076300
...
513 96 51-00
NEEDS DESCRIPTION HUS-513965100
...
531 00 75-40
NEEDS DESCRIPTION HUS-531007540
...
513 90 47-64
SPACER HUS-513904764
...
514 99 46-00
NUT HUS-514994600
...
514 64 76-00
Knob HUS-514647600
...
513 90 99-00
WASHER HUS-513909900
...
512 80 45-02
NEEDS DESCRIPTION HUS-512804502
...
514 99 66-82
REGULATOR KNOB (RED) HUS-514996682
...
513 95 38-64
SPACER HUS-513953864
...
511 90 76-64
BAIL ARM: DRIVE HUS-511907668
...
513 06 41-03
NEEDS DESCRIPTION HUS-513064103
...
513 95 40-00
SPACER HUS-513954000
...
516 62 33-01
GUIDE HUS-516623301
...
513 06 55-00
NEEDS DESCRIPTION HUS-513065500
...
511 89 83-68
NEEDS DESCRIPTION HUS-511898368
...
513 96 51-02
NEEDS DESCRIPTION HUS-513965102
...
514 99 45-01
Bolt HUS-514994501
