Husqvarna ROYAL 49 Walk Behind Mower

Model: ROYAL 49

Back To Assemblies

Save Part Not Listed?
product name

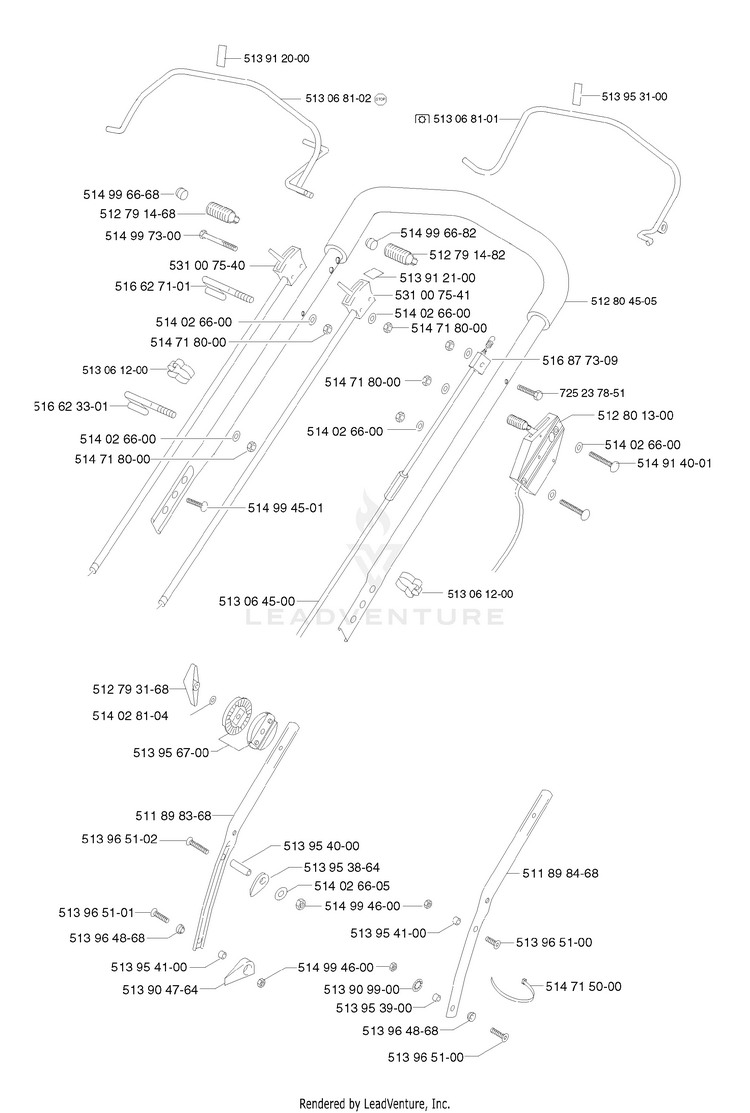

HANDLE & CONTROLS 10

...
...
531 00 75-41
NEEDS DESCRIPTION HUS-531007541
...
514 91 40-01
SCREW HUS-514914001
...
513 96 48-68
NEEDS DESCRIPTION HUS-513964868
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
513 91 21-00
LABEL ENGINE STOP HUS-513912100
...
513 96 51-02
NEEDS DESCRIPTION HUS-513965102
...
513 06 45-00
NEEDS DESCRIPTION HUS-513064500
...
514 99 46-00
NUT HUS-514994600
...
513 06 12-00
CABLE CLIP STANDARD HUS-513061200
...
514 02 66-00
WASHER HUS-514026600
...
514 99 45-01
Bolt HUS-514994501
...
513 06 81-02
NEEDS DESCRIPTION HUS-513068102
...
514 99 66-68
HUS-514996668
...
514 99 73-00
HEAD BOLT HEX M6 HUS-514997300
...
512 79 31-68
WINGNUT HUS-512793167
...
513 95 40-00
SPACER HUS-513954000
...
513 96 51-00
NEEDS DESCRIPTION HUS-513965100
...
513 96 51-01
NEEDS DESCRIPTION HUS-513965101
...
513 90 99-00
WASHER HUS-513909900
...
513 95 67-00
CONTROL HUS-513956700
...
516 62 71-01
HOLDER HUS-513076300
...
512 80 45-05
NEEDS DESCRIPTION HUS-512804505
...
512 79 14-82
HANDLE HUS-512791482
...
514 71 50-00
Cable Tie HUS-514715000
...
513 91 20-00
DECAL HUS-513912000
...
516 62 33-01
GUIDE HUS-516623301
...
513 95 39-00
SLEEVE HUS-513953900
...
725 23 78-51
SCREW HUS-725237851
...
512 80 13-00
NEEDS DESCRIPTION HUS-512801300
...
511 89 84-68
NEEDS DESCRIPTION HUS-511898468
...
513 95 41-00
SPACER HUS-513954100
...
513 95 31-00
Decal HUS-513953100
...
514 02 66-05
WASHER HUS-514026605
...
512 79 14-68
Handle HUS-512791468
...
516 87 73-09
BRACKET HUS-516877309
...
511 89 83-68
NEEDS DESCRIPTION HUS-511898368
...
531 00 75-40
NEEDS DESCRIPTION HUS-531007540
...
513 95 38-64
SPACER HUS-513953864
...
514 02 81-04
WASHER HUS-514028104
...
513 90 47-64
SPACER HUS-513904764
...
514 99 66-82
REGULATOR KNOB (RED) HUS-514996682
...
513 06 81-01
NEEDS DESCRIPTION HUS-513068101
