Husqvarna ROYAL 49 Walk Behind Mower

Model: ROYAL 49

Back To Assemblies

Save Part Not Listed?
product name

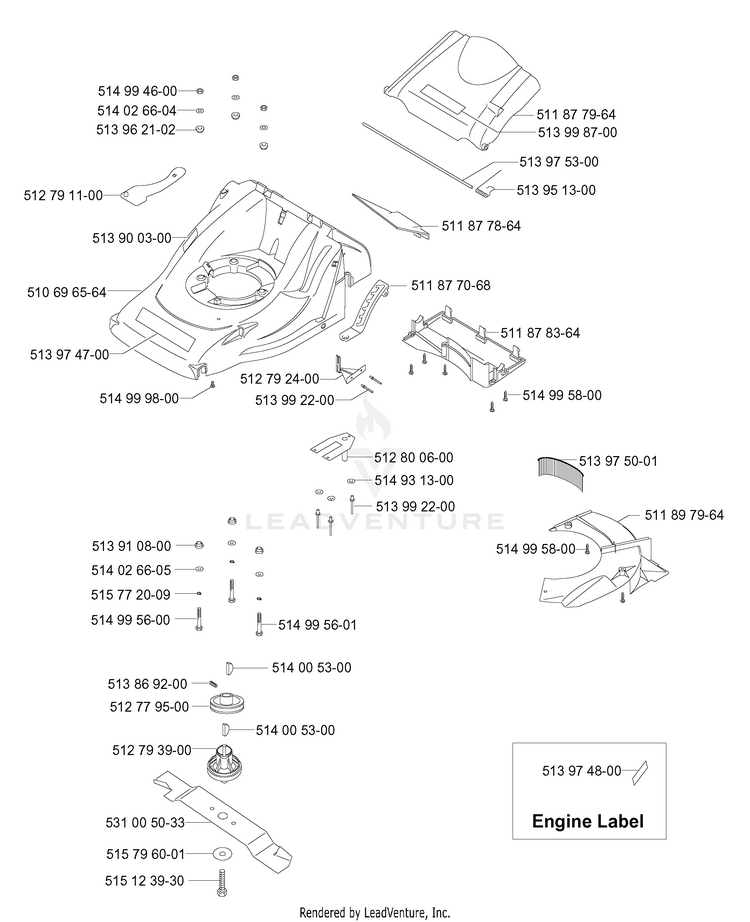

CHASSIS / FRAME

...
...
511 87 78-64
PROTECTOR HUS-511877864
...
513 99 22-00
RIVET HUS-513992200
...
511 87 79-64
COVER HUS-511877964
...
515 77 20-09
SPRING WASHER HUS-735116401
...
513 86 92-00
Screw HUS-513869200
...
515 79 60-01
WASHER HUS-515796001
...
512 80 06-00
NEEDS DESCRIPTION HUS-512800600
...
513 91 08-00
INSULATOR HUS-513910800
...
513 97 48-00
DECAL ENGINE LABEL HUS-513974800
...
513 97 50-01
BRUSH HUS-513975001
...
514 99 58-00
SCREW HUS-514995800
...
513 90 03-00
DECAL HUS-513900300
...
513 97 53-00
PIN HUS-513975300
...
510 69 65-64
NEEDS DESCRIPTION HUS-510696564
...
512 79 24-00
BRACKET HUS-512792400
...
514 99 98-00
SCREW HUS-514999800
...
513 97 47-00
DECAL HUS-513974700
...
514 00 53-00
KEY HUS-514005300
...
513 95 13-00
SPRING HUS-513951300
...
513 96 21-02
NEEDS DESCRIPTION HUS-513962102
...
511 89 79-64
NEEDS DESCRIPTION HUS-511897964
...
512 77 95-00
V-BELT HUS-512779500
...
531 00 50-33
BLADE HUS-516479710
...
514 02 66-04
WASHER HUS-514026604
...
513 99 87-00
NEEDS DESCRIPTION HUS-513998700
...
515 12 39-30
SCREW HUS-515123931
...
514 99 46-00
NUT HUS-514994600
...
514 99 56-00
BOLT HUS-514995600
...
514 93 13-00
Washer HUS-514931300
...
514 99 56-01
BOLT HUS-514995601
...
512 79 11-00
PROTECTOR HUS-512791100
...
511 87 83-64
COVER HUS-511878364
...
512 79 39-00
NEEDS DESCRIPTION HUS-512793900
...
514 02 66-05
WASHER HUS-514026605
...
511 87 70-68
PLATE HUS-511877068
