product name

Husqvarna ROYAL 47RC Walk Behind Mower

Model: ROYAL 47RC

Back To Assemblies

Save Part Not Listed?
product name

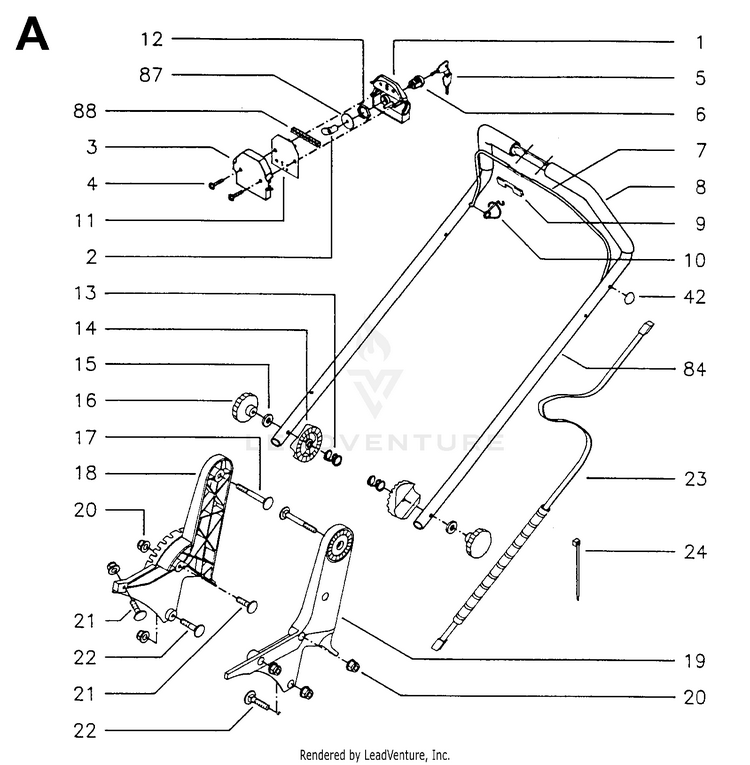

HANDLE & CONTROLS 5

...
...
14
CLAMP HUS-516870511
...
84
NEEDS DESCRIPTION HUS-516634811
...
13
SPRING HUS-516440601
...
22
SCREW HUS-515711625
...
10
NEEDS DESCRIPTION HUS-516635201
...
17
BOLT HUS-515711865
...
1
NEEDS DESCRIPTION HUS-516879111
...
6
NEEDS DESCRIPTION HUS-516883700
...
7
NEEDS DESCRIPTION HUS-516634507
...
15
WASHER HUS-515796009
...
9
NEEDS DESCRIPTION HUS-517770325
...
88
NEEDS DESCRIPTION HUS-517831500
...
4
SCREW HUS-729525971
...
42
WASHER HUS-516922500
...
5
NEEDS DESCRIPTION HUS-516635901
...
20
FLANGE NUT HUS-731711651
...
24
Tie-Wrap HUS-516844509
...
11
NEEDS DESCRIPTION HUS-516877800
...
8
VIBRATION DAMPENER HUS-516884009
...
21
SCREW HUS-515711620
...
23
NEEDS DESCRIPTION HUS-516884400
...
2
NEEDS DESCRIPTION HUS-517831311
...
16
NEEDS DESCRIPTION HUS-516870411
...
18
BRACKET HUS-516870611
...
19
BRACKET HUS-516884111
...
3
NEEDS DESCRIPTION HUS-517831111
...
87
NEEDS DESCRIPTION HUS-517831211
...
12
NEEDS DESCRIPTION HUS-516935201
