Husqvarna ROYAL 47RC Walk Behind Mower

Model: ROYAL 47RC

Back To Assemblies

Save Part Not Listed?
product name

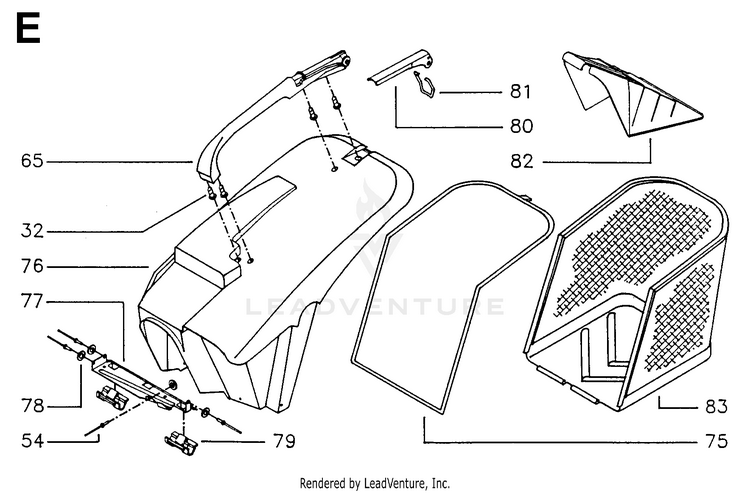

BAGGER 2

...
...
82
HUS-997008515
...
32
SCREW HUS-516924701
...
54
RIVET HUS-516923800
...
81
PAWL HUS-516632501
...
78
WASHER HUS-734114741
...
83
NEEDS DESCRIPTION HUS-516883511
...
80
LEVER HUS-516932511
...
76
COVER HUS-516871107
...
75
FRAME HUS-516713601
...
79
BRACKET HUS-516882309
...
77
BRACKET HUS-516634001
...
65
HANDLE HUS-516871011
