Husqvarna ROYAL 47RC Walk Behind Mower

Model: ROYAL 47RC

Back To Assemblies

Save Part Not Listed?
product name

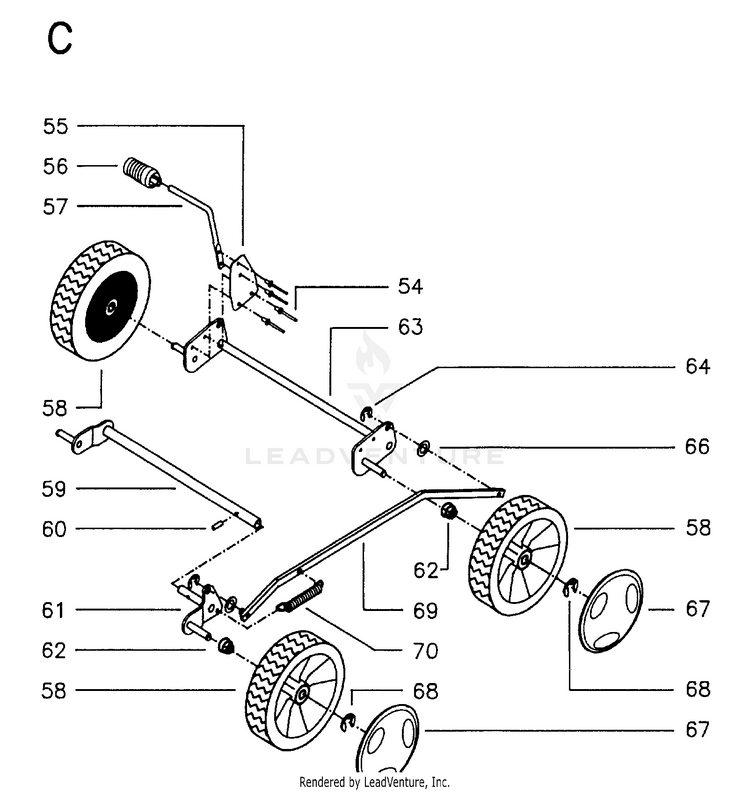

WHEELS & TIRES 4

...
...
68
SNAP RING HUS-515116038
...
61
BRACKET HUS-516710201
...
58
WHEEL HUS-517810054
...
67
HUB CAP HUS-516871310
...
56
NEEDS DESCRIPTION HUS-516872407
...
69
ROD HUS-516709901
...
62
CONE SPRING HUS-516436801
...
54
RIVET HUS-516923800
...
55
BRACKET HUS-516617301
...
64
Ring HUS-516905100
...
63
SHAFT HUS-516710401
...
60
KEY HUS-721433801
...
59
SHAFT HUS-516710301
...
57
LEVER HUS-516629401
...
66
WASHER HUS-516932000
...
70
SPRING HUS-516499701
