Husqvarna ROYAL 47RC Walk Behind Mower

Model: ROYAL 47RC

Back To Assemblies

Save Part Not Listed?
product name

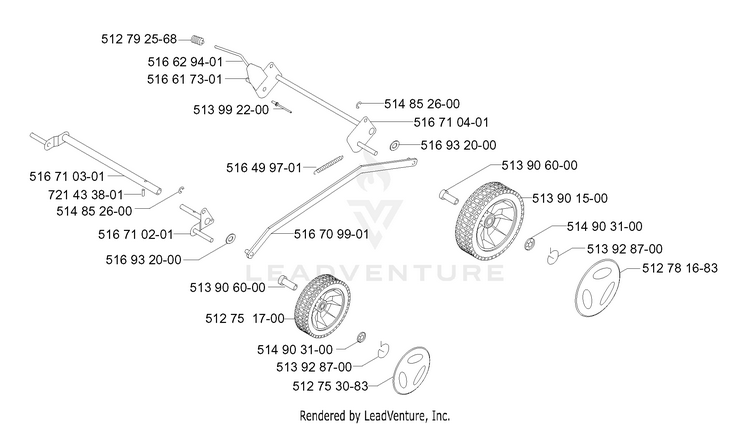

WHEELS & TIRES 3

...
...
516 93 20-00
WASHER HUS-516932000
...
513 90 60-00
SPRING HUS-513906000
...
512 75 17-00
WHEEL HUS-512828300
...
513 90 15-00
WHEEL HUS-513901500
...
516 49 97-01
SPRING HUS-516499701
...
516 62 94-01
LEVER HUS-516629401
...
516 71 02-01
BRACKET HUS-516710201
...
512 75 30-83
HUB HUS-512753083
...
512 78 16-83
HUB CAP HUS-512781683
...
721 43 38-01
KEY HUS-721433801
...
514 85 26-00
RETAINING RING HUS-514852600
...
513 99 22-00
RIVET HUS-513992200
...
516 71 04-01
SHAFT HUS-516710401
...
516 70 99-01
ROD HUS-516709901
...
514 90 31-00
STARLOCK HUS-514903100
...
516 71 03-01
SHAFT HUS-516710301
...
516 61 73-01
BRACKET HUS-516617301
...
513 92 87-00
SPRING HUS-513928700
...
512 79 25-68
KNOB HUS-512792568
