Husqvarna ROYAL 47RC Walk Behind Mower

Model: ROYAL 47RC

Back To Assemblies

Save Part Not Listed?
product name

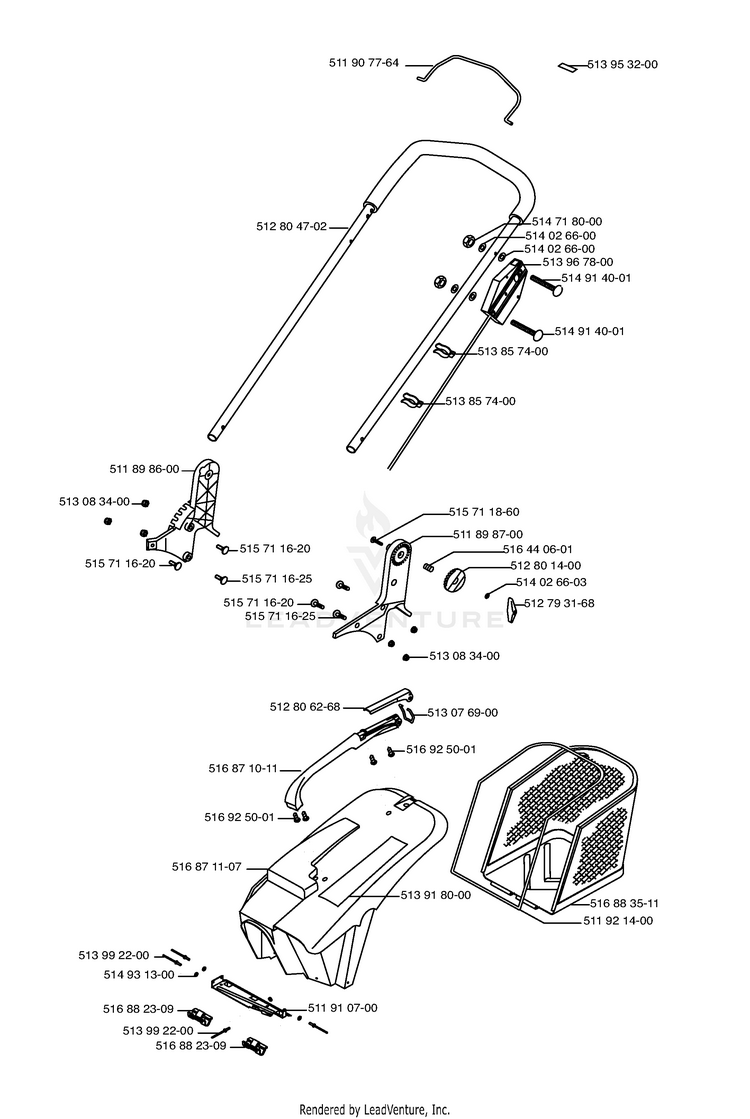

HANDLE & CONTROLS

...
...
516 92 50-01
SCREW HUS-516924701
...
513 85 74-00
NEEDS DESCRIPTION HUS-513857400
...
511 90 77-64
NEEDS DESCRIPTION HUS-511907764
...
513 08 34-00
NEEDS DESCRIPTION HUS-513083400
...
513 95 32-00
DECAL HUS-513953200
...
514 02 66-00
WASHER HUS-514026600
...
513 99 22-00
RIVET HUS-513992200
...
515 71 16-25
SCREW HUS-515711625
...
515 71 16-20
SCREW HUS-515711620
...
511 91 07-00
NEEDS DESCRIPTION HUS-511910700
...
516 88 23-09
BRACKET HUS-516882309
...
514 02 66-03
WASHER HUS-514026603
...
512 80 14-00
NEEDS DESCRIPTION HUS-512801400
...
512 79 31-68
WINGNUT HUS-512793167
...
512 80 62-68
NEEDS DESCRIPTION HUS-512806268
...
516 87 11-07
COVER HUS-516871107
...
514 93 13-00
Washer HUS-514931300
...
516 44 06-01
SPRING HUS-516440601
...
511 89 87-00
NEEDS DESCRIPTION HUS-511898700
...
516 88 35-11
NEEDS DESCRIPTION HUS-516883511
...
512 80 47-02
NEEDS DESCRIPTION HUS-512804702
...
516 87 10-11
HANDLE HUS-516871011
...
514 91 40-01
SCREW HUS-514914001
...
513 91 80-00
HARDTOP LABEL HUS-513918000
...
511 92 14-00
NEEDS DESCRIPTION HUS-511921400
...
511 89 86-00
NEEDS DESCRIPTION HUS-511898600
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
513 96 78-00
NEEDS DESCRIPTION HUS-513967800
...
513 07 69-00
NEEDS DESCRIPTION HUS-513076900
...
515 71 18-60
NEEDS DESCRIPTION HUS-515711860
