product name

Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

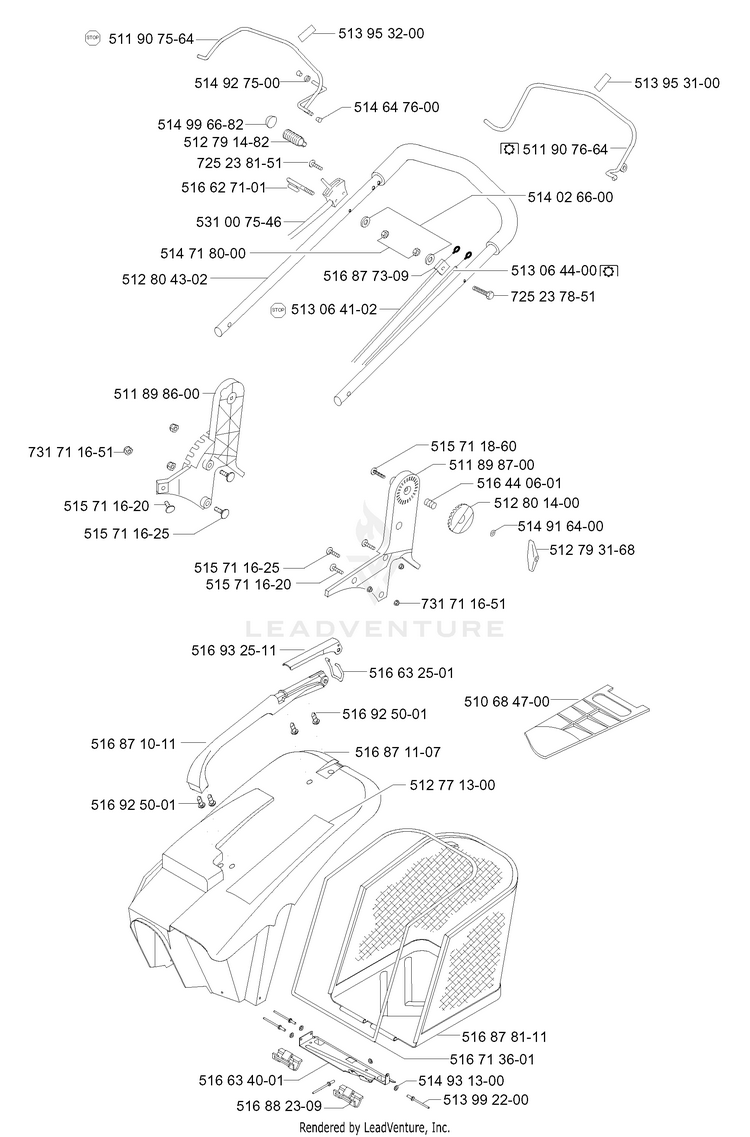

HANDLE & CONTROLS 7

...
...
725 23 78-51
SCREW HUS-725237851
...
515 71 18-60
NEEDS DESCRIPTION HUS-515711860
...
511 90 75-64
BAIL ARM:BRAKE HUS-511907564
...
516 87 11-07
COVER HUS-516871107
...
512 77 13-00
DECAL HUS-512771300
...
512 80 43-02
NEEDS DESCRIPTION HUS-512804302
...
511 89 86-00
NEEDS DESCRIPTION HUS-511898600
...
516 87 81-11
HUS-516878111
...
516 87 10-11
HANDLE HUS-516871011
...
513 06 41-02
NEEDS DESCRIPTION HUS-513064102
...
513 99 22-00
RIVET HUS-513992200
...
514 93 13-00
Washer HUS-514931300
...
514 64 76-00
Knob HUS-514647600
...
516 93 25-11
LEVER HUS-516932511
...
514 91 64-00
WASHER HUS-514916400
...
516 87 73-09
BRACKET HUS-516877309
...
511 90 76-64
BAIL ARM: DRIVE HUS-511907668
...
531 00 75-46
THROTTLE TRIGGER HUS-531007546
...
516 63 40-01
BRACKET HUS-516634001
...
513 95 32-00
DECAL HUS-513953200
...
515 71 16-20
SCREW HUS-515711620
...
514 92 75-00
NEEDS DESCRIPTION HUS-514927500
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
515 71 16-25
SCREW HUS-515711625
...
725 23 81-51
SCREW M6X55 HUS-725238151
...
510 68 47-00
NEEDS DESCRIPTION HUS-510684700
...
514 99 66-82
REGULATOR KNOB (RED) HUS-514996682
...
512 80 14-00
NEEDS DESCRIPTION HUS-512801400
...
731 71 16-51
FLANGE NUT HUS-731711651
...
512 79 31-68
WINGNUT HUS-512793167
...
516 63 25-01
PAWL HUS-516632501
...
513 95 31-00
Decal HUS-513953100
...
516 92 50-01
SCREW HUS-516924701
...
511 89 87-00
NEEDS DESCRIPTION HUS-511898700
...
516 62 71-01
HOLDER HUS-513076300
...
516 71 36-01
FRAME HUS-516713601
...
516 44 06-01
SPRING HUS-516440601
...
513 06 44-00
NEEDS DESCRIPTION HUS-513064400
...
516 88 23-09
BRACKET HUS-516882309
...
512 79 14-82
HANDLE HUS-512791482
...
514 02 66-00
WASHER HUS-514026600
