Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

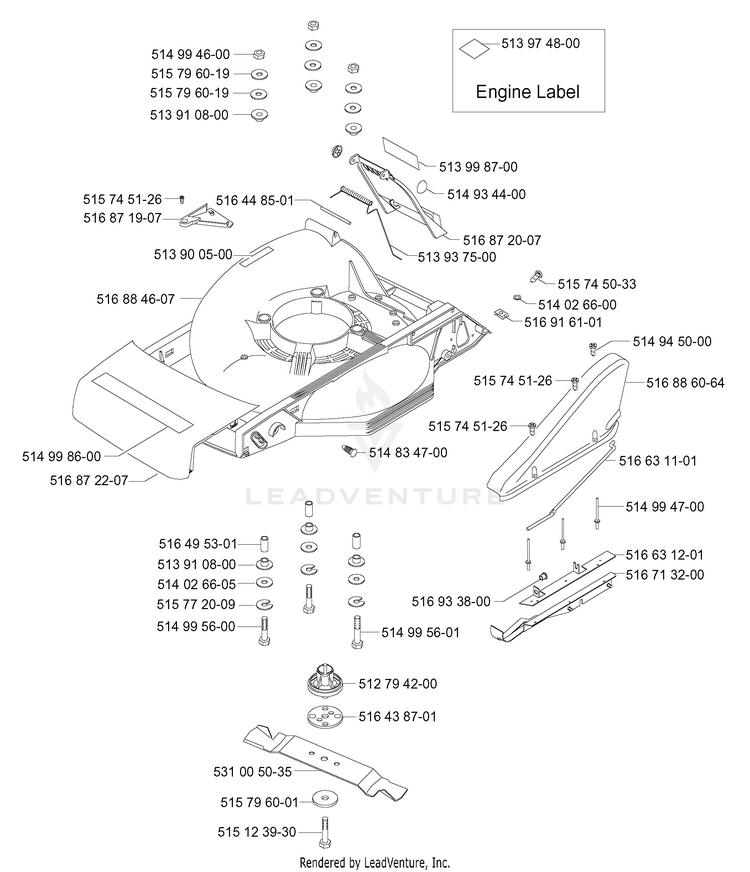

CHASSIS / FRAME 2

...
...
514 02 66-05
WASHER HUS-514026605
...
516 88 60-64
COVER HUS-516886064
...
516 43 87-01
STEEL PLATE ADAPTER HUS-516438701
...
514 99 46-00
NUT HUS-514994600
...
516 87 22-07
COVER HUS-516872207
...
513 99 87-00
NEEDS DESCRIPTION HUS-513998700
...
515 79 60-01
WASHER HUS-515796001
...
516 87 20-07
COVER HUS-516872007
...
516 93 38-00
BUSHING HUS-516933800
...
515 12 39-30
SCREW HUS-515123931
...
514 02 66-00
WASHER HUS-514026600
...
516 63 11-01
BRACKET HUS-516631101
...
516 63 12-01
PLATE HUS-516631201
...
512 79 42-00
ADAPTER HUS-512794200
...
514 94 50-00
SCREW HUS-514945000
...
514 99 47-00
RIVET HUS-514994700
...
516 91 61-01
LOCK PLATE HUS-516916101
...
514 93 44-00
HUS-514934400
...
514 83 47-00
NEEDS DESCRIPTION HUS-514834700
...
513 91 08-00
INSULATOR HUS-513910800
...
515 74 51-26
SCREW HUS-515745126
...
513 93 75-00
SPRING HUS-513937500
...
515 79 60-19
Washer HUS-515796019
...
516 87 19-07
COVER HUS-516871907
...
516 71 32-00
BRACKET HUS-516713200
...
513 97 48-00
DECAL ENGINE LABEL HUS-513974800
...
516 88 46-07
CHASSIS HUS-516884607
...
514 99 56-00
BOLT HUS-514995600
...
516 44 85-01
HOLDER HUS-516636401
...
531 00 50-35
BLADE HUS-531005035
...
515 74 50-33
HUS-729541409
...
514 99 56-01
BOLT HUS-514995601
...
514 99 86-00
DECAL HUS-514998600
...
516 49 53-01
SPACER HUS-516495301
...
513 90 05-00
DECAL HUS-513900500
...
515 77 20-09
SPRING WASHER HUS-735116401
