Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

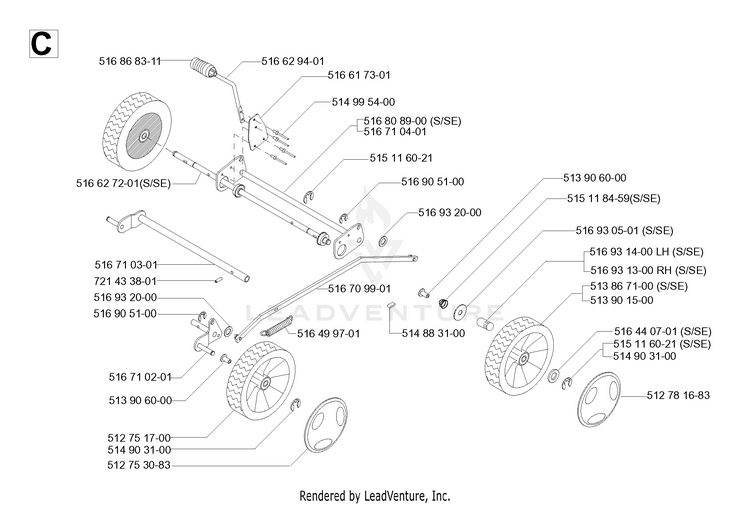

WHEELS & TIRES 4

...
...
512 78 16-83
HUB CAP HUS-512781683
...
513 90 60-00
SPRING HUS-513906000
...
516 49 97-01
SPRING HUS-516499701
...
516 71 02-01
BRACKET HUS-516710201
...
515 11 60-21
SNAP RING S/SE HUS-515116021
...
513 90 15-00
WHEEL HUS-513901500
...
512 75 17-00
WHEEL HUS-512828300
...
721 43 38-01
KEY HUS-721433801
...
516 90 51-00
Ring HUS-516905100
...
516 71 04-01
SHAFT HUS-516710401
...
514 90 31-00
STARLOCK HUS-514903100
...
514 88 31-00
PAWL HUS-514883100
...
512 75 30-83
HUB HUS-512753083
...
516 93 20-00
WASHER HUS-516932000
...
516 86 83-11
GRIP HUS-516868311
...
516 70 99-01
ROD HUS-516709901
...
513 86 71-00
WHEEL S/SE HUS-513867100
...
516 93 13-00
NEEDS DESCRIPTION RH S/SE HUS-516931300
...
516 62 94-01
LEVER HUS-516629401
...
516 62 72-01
SHAFT S/SE HUS-516627201
...
516 71 03-01
SHAFT HUS-516710301
...
515 11 60-21
SNAP RING HUS-515116021
...
516 93 05-01
WASHER S/SE HUS-516930501
...
514 99 54-00
RIVET HUS-514995400
...
516 93 14-00
PINION LH S/SE HUS-516931400
...
516 61 73-01
BRACKET HUS-516617301
...
516 44 07-01
WASHER S/SE HUS-516440701
...
515 11 84-59
SPRING S/SE HUS-515118459
...
516 80 89-00
SHAFT S/SE HUS-516808900
