Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

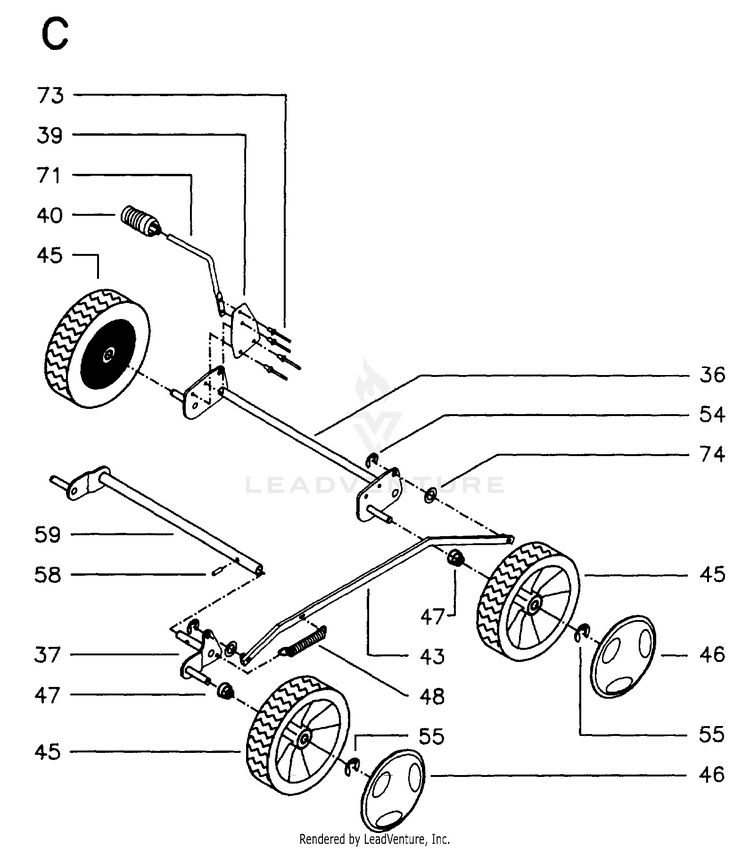

DRIVE 4

...
...
46
NEEDS DESCRIPTION HUS-516871308
...
59
SHAFT HUS-516710301
...
37
BRACKET HUS-516710201
...
45
WHEEL HUS-517810054
...
43
ROD HUS-516709901
...
47
CONE SPRING HUS-516436801
...
71
LEVER HUS-516629401
...
74
WASHER HUS-516932000
...
54
Ring HUS-516905100
...
39
BRACKET HUS-516617301
...
58
KEY HUS-721433801
...
48
SPRING HUS-516499701
...
73
RIVET HUS-516923800
...
55
SNAP RING HUS-515116038
...
36
SHAFT HUS-516710401
...
40
NEEDS DESCRIPTION HUS-516872407
