Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

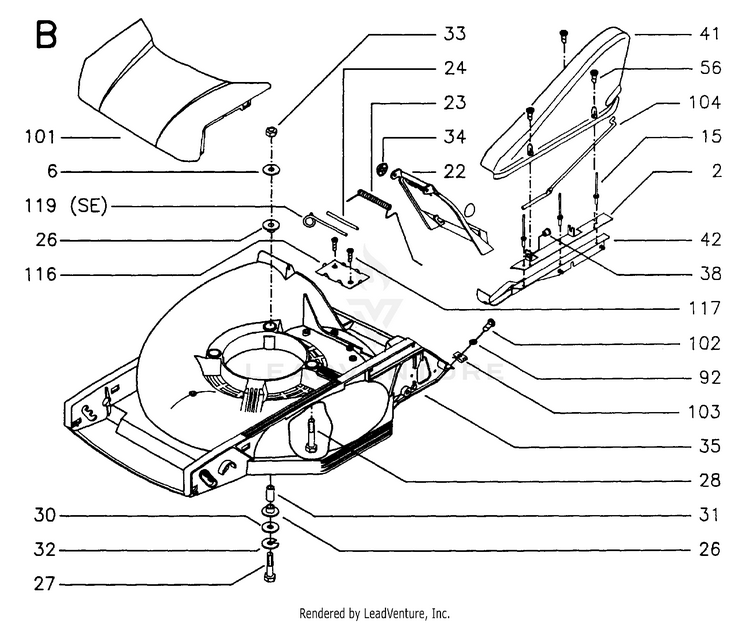

FRAME 3

...
...
6
Washer HUS-515796019
...
92
Washer HUS-734115301
...
28
SCREW HUS-515700890
...
41
NEEDS DESCRIPTION HUS-516886007
...
103
LOCK PLATE HUS-516916101
...
35
NEEDS DESCRIPTION HUS-517770282
...
31
SPACER HUS-516495301
...
116
PLATE HUS-516627401
...
2
PLATE HUS-516631201
...
30
SPACER HUS-734116441
...
56
SCREW HUS-516930701
...
26
WASHER HUS-516851000
...
33
LOCKNUT M8 HUS-732211801
...
119
HOLDER SE HUS-516636401
...
101
NEEDS DESCRIPTION HUS-516870807
...
34
WASHER HUS-516922500
...
32
SPRING WASHER HUS-735116401
...
23
SPRING HUS-516506601
...
42
BRACKET HUS-516713200
...
38
BUSHING HUS-516933800
...
102
SCREW HUS-729541401
...
24
HOLDER HUS-516636401
...
27
SCREW HUS-725246351
...
117
SCREW HUS-729528971
...
104
BRACKET HUS-516631101
...
15
RIVET HUS-516925100
...
22
COVER HUS-516872007
