Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

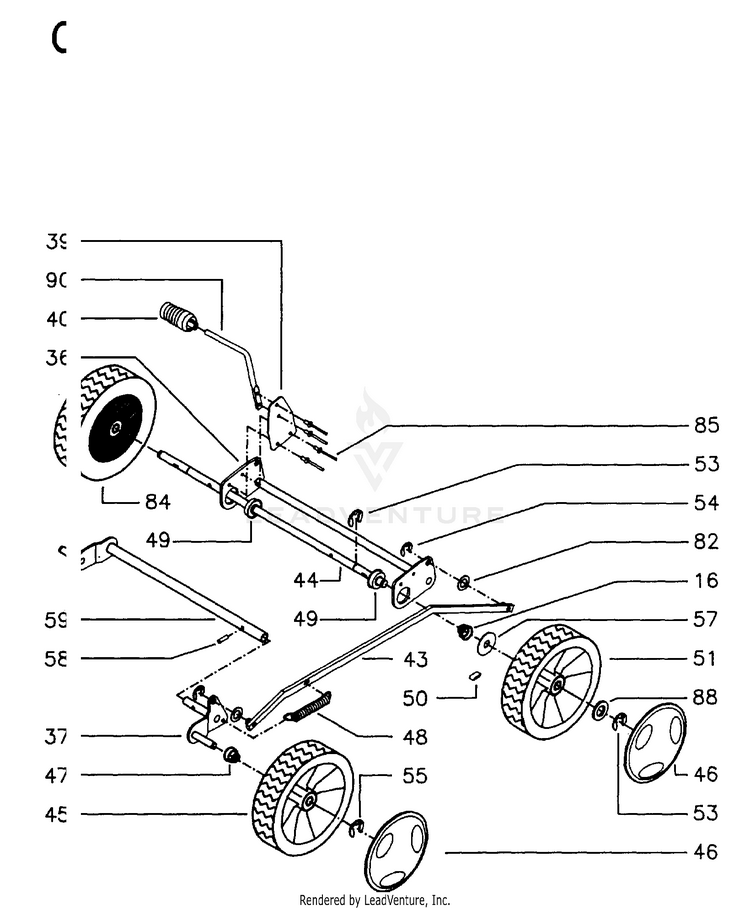

WHEELS & TIRES 3

...
...
47
CONE SPRING HUS-516436801
...
55
SNAP RING HUS-515116038
...
48
SPRING HUS-516499701
...
88
WASHER HUS-516440701
...
43
ROD HUS-516709901
...
82
WASHER HUS-516932000
...
53
SNAP RING HUS-515116021
...
59
SHAFT HUS-516710301
...
39
BRACKET HUS-516617301
...
57
WASHER HUS-516930501
...
84
WHEEL HUS-517810057
...
90
LEVER HUS-516629401
...
58
KEY HUS-721433801
...
50
PAWL HUS-514883100
...
37
BRACKET HUS-516710201
...
36
SHAFT HUS-516710001
...
46
NEEDS DESCRIPTION HUS-516871308
...
16
SPRING HUS-515118459
...
85
RIVET HUS-516923800
...
49
BEARING HUS-516930200
...
51
WHEEL HUS-517810058
...
40
NEEDS DESCRIPTION HUS-516872407
...
45
WHEEL HUS-517810054
...
54
Ring HUS-516905100
...
44
SHAFT HUS-516627201
