product name

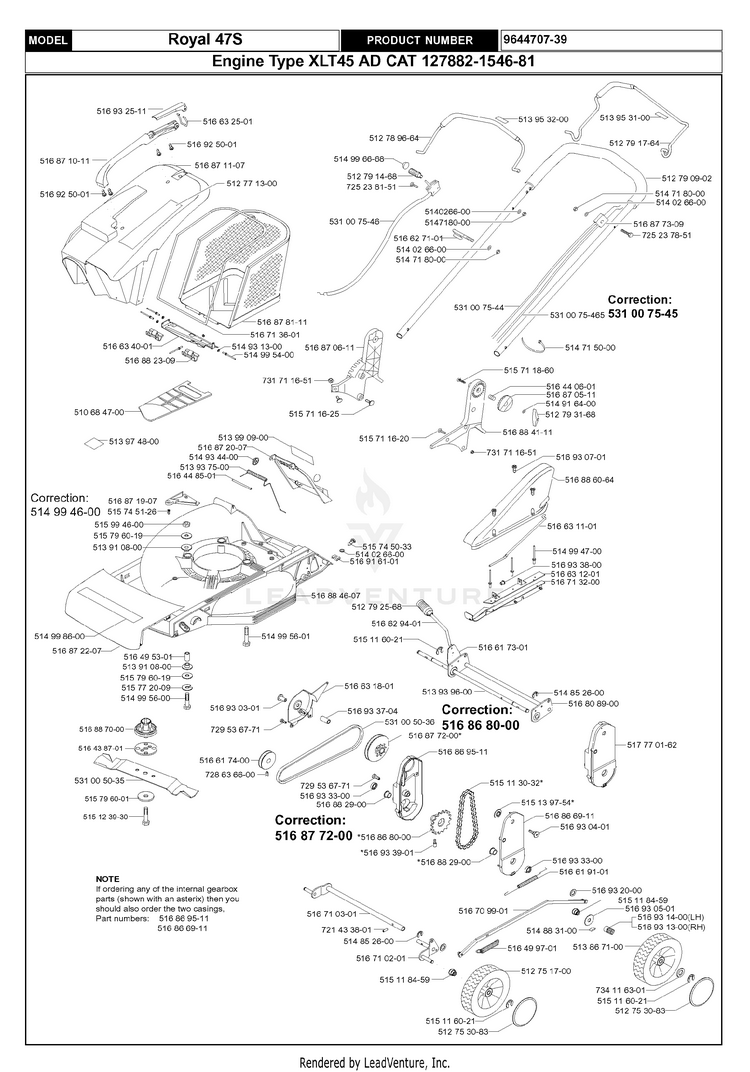

Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
516 86 69-11
COVER HUS-516866911
...
514 91 64-00
WASHER HUS-514916400
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
531 00 50-35
BLADE HUS-531005035
...
512 75 17-00
WHEEL HUS-512828300
...
5140266-00
WASHER HUS-514026600
...
516 87 11-07
COVER HUS-516871107
...
514 99 47-00
RIVET HUS-514994700
...
516 63 25-01
PAWL HUS-516632501
...
734 11 63-01
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
516 92 50-01
SCREW HUS-516924701
...
531 00 50-36
BELT HUS-531005036
...
729 53 67-71
SCREW HUS-729536771
...
513 91 08-00
INSULATOR HUS-513910800
...
514 99 46-00
NUT HUS-514994600
...
515 13 97-54
WASHER HUS-515139754
...
514 99 56-00
BOLT HUS-514995600
...
512 75 30-83
HUB HUS-512753083
...
516 93 05-01
WASHER HUS-516930501
...
725 23 78-51
SCREW HUS-725237851
...
516 71 32-00
BRACKET HUS-516713200
...
516 43 87-01
STEEL PLATE ADAPTER HUS-516438701
...
514 99 54-00
RIVET HUS-514995400
...
516 87 73-09
BRACKET HUS-516877309
...
513 95 31-00
Decal HUS-513953100
...
721 43 38-01
KEY HUS-721433801
...
516 86 80-00
PULLEY HUS-516868000
...
516 63 18-01
COVER HUS-516631801
...
516 87 20-07
COVER HUS-516872007
...
516 88 46-07
CHASSIS HUS-516884607
...
516 44 06-01
SPRING HUS-516440601
...
516 71 36-01
FRAME HUS-516713601
...
5147180-00
NUT M6 NYLOC GME/D HUS-514718000
...
516 61 73-01
BRACKET HUS-516617301
...
516 93 25-11
LEVER HUS-516932511
...
516 62 94-01
LEVER HUS-516629401
...
514 99 66-68
HUS-514996668
...
516 63 12-01
PLATE HUS-516631201
...
515 11 84-59
SPRING HUS-515118459
...
516 93 04-01
SCREW HUS-516930401
...
515 79 60-01
WASHER HUS-515796001
...
515 71 16-20
SCREW HUS-515711620
...
516 87 19-07
COVER HUS-516871907
...
515 77 20-09
SPRING WASHER HUS-735116401
...
731 71 16-51
FLANGE NUT HUS-731711651
...
728 63 66-00
SCREW HUS-728636600
...
516 93 39-01
SCREW HUS-516933901
...
514 02 66-00
WASHER HUS-514026600
...
531 00 75-46
THROTTLE TRIGGER HUS-531007546
...
516 93 38-00
BUSHING HUS-516933800
...
516 87 81-11
HUS-516878111
...
516 87 72-00
CHAIN WHEEL HUS-516877200
...
513 86 71-00
WHEEL HUS-513867100
...
515 79 60-19
Washer HUS-515796019
...
514 88 31-00
PAWL HUS-514883100
...
515 11 60-21
SNAP RING HUS-515116021
...
516 80 89-00
SHAFT HUS-516808900
...
513 93 75-00
SPRING HUS-513937500
...
516 62 71-01
HOLDER HUS-513076300
...
515 11 30-32
CHAIN HUS-515113032
...
515 74 50-33
HUS-729541409
...
516 49 53-01
SPACER HUS-516495301
...
516 87 05-11
CLAMP HUS-516870511
...
515 74 51-26
SCREW HUS-515745126
...
516 61 91-01
SPRING HUS-516619101
...
516 61 74-00
WHEEL HUS-516617400
...
516 86 95-11
COVER HUS-516869511
...
516 44 85-01
HOLDER HUS-516636401
...
512 79 25-68
KNOB HUS-512792568
...
516 63 11-01
BRACKET HUS-516631101
...
514 93 44-00
HUS-514934400
...
515 71 16-25
SCREW HUS-515711625
...
516 93 20-00
WASHER HUS-516932000
...
516 93 14-00
PINION LH HUS-516931400
...
725 23 81-51
SCREW M6X55 HUS-725238151
...
531 00 75-45
NEEDS DESCRIPTION HUS-531007545
...
514 71 50-00
Cable Tie HUS-514715000
...
512 79 31-68
WINGNUT HUS-512793167
...
512 78 96-64
LOOP HUS-512789664
...
516 93 33-00
BUSHING HUS-516933300
...
515 12 39-30
SCREW HUS-515123931
...
516 87 22-07
COVER HUS-516872207
...
516 88 29-00
BEARING HUS-516882900
...
513 97 48-00
DECAL HUS-513974800
...
516 88 60-64
COVER HUS-516886064
...
516 93 13-00
NEEDS DESCRIPTION RH HUS-516931300
...
514 99 86-00
DECAL HUS-514998600
...
513 95 32-00
DECAL HUS-513953200
...
512 79 14-68
Handle HUS-512791468
...
516 91 61-01
LOCK PLATE HUS-516916101
...
516 88 41-11
BRACKET HUS-516884111
...
516 88 23-09
BRACKET HUS-516882309
...
515 71 18-60
NEEDS DESCRIPTION HUS-515711860
...
516 93 37-04
BUSHING HUS-516933704
...
516 63 40-01
BRACKET HUS-516634001
...
516 93 07-01
SCREW HUS-516930701
...
510 68 47-00
NEEDS DESCRIPTION HUS-510684700
...
531 00 75-44
WIRE HUS-531007544
...
514 85 26-00
RETAINING RING HUS-514852600
...
516 93 03-01
SLEEVE HUS-516930301
...
514 99 56-01
BOLT HUS-514995601
...
516 49 97-01
SPRING HUS-516499701
...
517 77 01-62
HOUSING HUS-517770162
...
512 77 13-00
DECAL HUS-512771300
...
516 70 99-01
ROD HUS-516709901
...
516 71 03-01
SHAFT HUS-516710301
...
512 79 17-64
LOOP HUS-512791764
...
513 99 09-00
DECAL HUS-513990900
...
516 88 70-00
ADAPTER HUS-512794200
...
516 87 10-11
HANDLE HUS-516871011
...
514 93 13-00
Washer HUS-514931300
...
516 71 02-01
BRACKET HUS-516710201
...
512 79 09-02
HANDLE HUS-512790902
...
513 93 96-00
SHAFT HUS-513939600
