Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

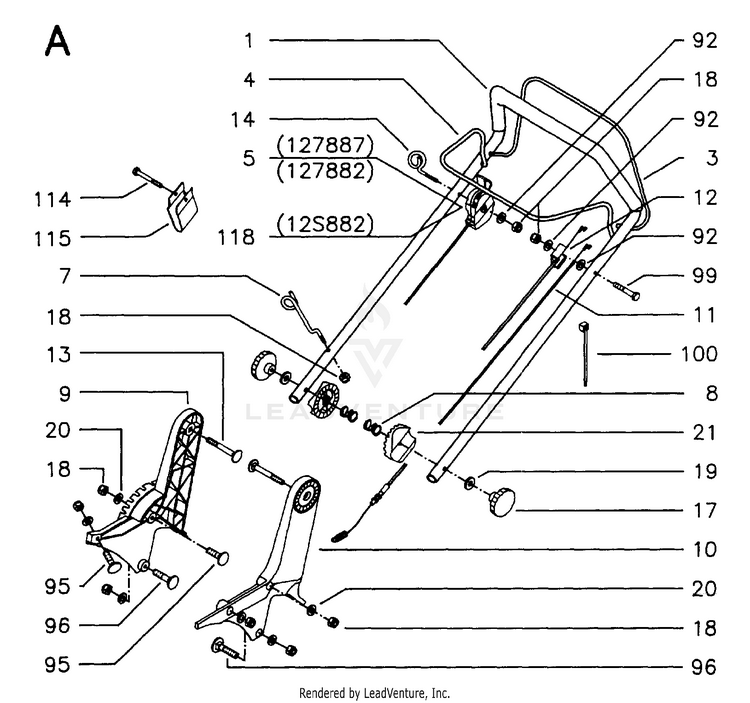

HANDLE & CONTROLS 2

...
...
95
SCREW HUS-515711620
...
18
LOCKNUT M6 HUS-732211601
...
92
Washer HUS-734115301
...
99
SCREW HUS-725237851
...
20
WASHER HUS-516449101
...
21
CLAMP HUS-516870511
...
19
WASHER HUS-515796009
...
115
HOLDER HUS-516881209
...
96
SCREW HUS-515711625
...
1
NEEDS DESCRIPTION HUS-516629325
...
13
BOLT HUS-515711865
...
17
NEEDS DESCRIPTION HUS-516870411
...
12
WIRE R 47/47S/47SE HUS-517810046
...
7
HOLDER HUS-516636301
...
10
NEEDS DESCRIPTION HUS-516870711
...
4
NEEDS DESCRIPTION HUS-516632207
...
8
SPRING HUS-516440601
...
100
Tie-Wrap HUS-516844509
...
3
NEEDS DESCRIPTION HUS-516632307
...
9
BRACKET HUS-516870611
...
114
SCREW M6X55 HUS-725238151
...
5
THROTTLE TRIGGER HUS-517810060
...
11
WIRE R 47S/SE HUS-517810044
...
118
THROTTLE TRIGGER HUS-517810032
...
14
GUIDE HUS-516623401
