Husqvarna ROYAL 47 Walk Behind Mower

Model: ROYAL 47

Back To Assemblies

Save Part Not Listed?
product name

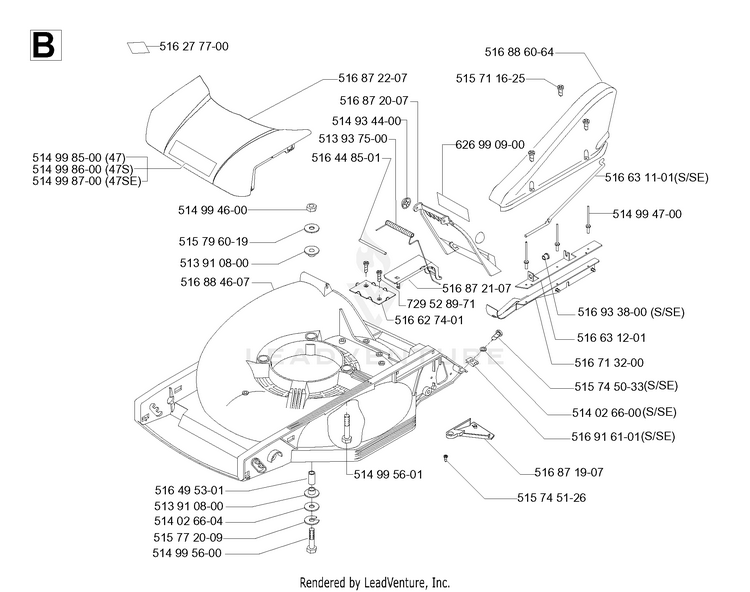

FRAME

...
...
516 93 38-00
BUSHING S/SE HUS-516933800
...
513 93 75-00
SPRING HUS-513937500
...
514 99 46-00
NUT HUS-514994600
...
516 71 32-00
BRACKET HUS-516713200
...
516 63 11-01
BRACKET S/SE HUS-516631101
...
514 02 66-00
WASHER S/SE HUS-514026600
...
514 99 47-00
RIVET HUS-514994700
...
513 91 08-00
INSULATOR HUS-513910800
...
729 52 89-71
SCREW HUS-729528971
...
514 99 86-00
DECAL 47S HUS-514998600
...
515 74 51-26
SCREW HUS-515745126
...
516 91 61-01
LOCK PLATE S/SE HUS-516916101
...
514 99 56-01
BOLT HUS-514995601
...
514 02 66-04
WASHER HUS-514026604
...
516 44 85-01
HOLDER HUS-516636401
...
514 93 44-00
HUS-514934400
...
516 87 19-07
COVER HUS-516871907
...
514 99 56-00
BOLT HUS-514995600
...
515 77 20-09
SPRING WASHER HUS-735116401
...
516 88 60-64
COVER HUS-516886064
...
516 49 53-01
SPACER HUS-516495301
...
516 87 21-07
COVER HUS-516872107
...
626 99 09-00
DECAL HUS-626990900
...
515 79 60-19
Washer HUS-515796019
...
516 87 22-07
COVER HUS-516872207
...
516 27 77-00
DECAL HUS-516277700
...
516 62 74-01
PLATE HUS-516627401
...
514 99 85-00
DECAL 47 HUS-514998500
...
514 99 87-00
DECAL 47SE HUS-514998700
...
516 88 46-07
CHASSIS HUS-516884607
...
516 63 12-01
PLATE HUS-516631201
...
516 87 20-07
COVER HUS-516872007
...
515 71 16-25
SCREW HUS-515711625
...
515 74 50-33
S/SE HUS-729541409
