Husqvarna ROYAL 46RC Walk Behind Mower

Model: ROYAL 46RC

Save Part Not Listed?
product name

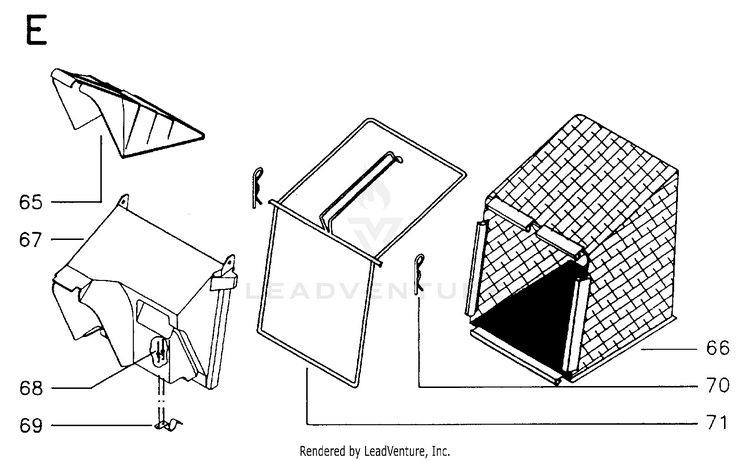

BAGGER

...
...
71
SUPPORT HUS-516702401
...
65
HUS-997008515
...
67
COVER HUS-516868600
...
69
SPRING HUS-516621001
...
66
NEEDS DESCRIPTION HUS-516883611
...
68
RIVET HUS-516912600
...
70
PIN HUS-516511901

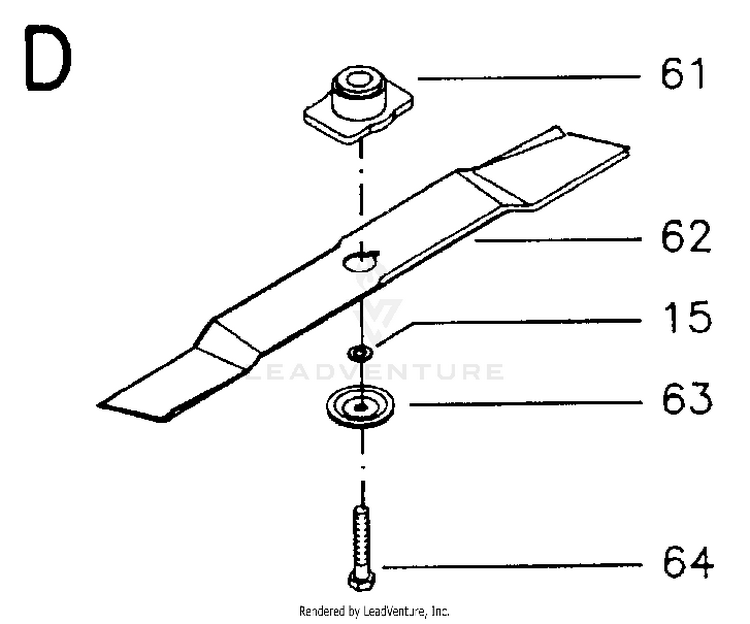

CUTTING EQUIPMENT

...
...
64
NEEDS DESCRIPTION HUS-725245353
...
63
NEEDS DESCRIPTION HUS-516635101
...
15
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
62
NEEDS DESCRIPTION HUS-516634900
...
61
NEEDS DESCRIPTION HUS-516879300

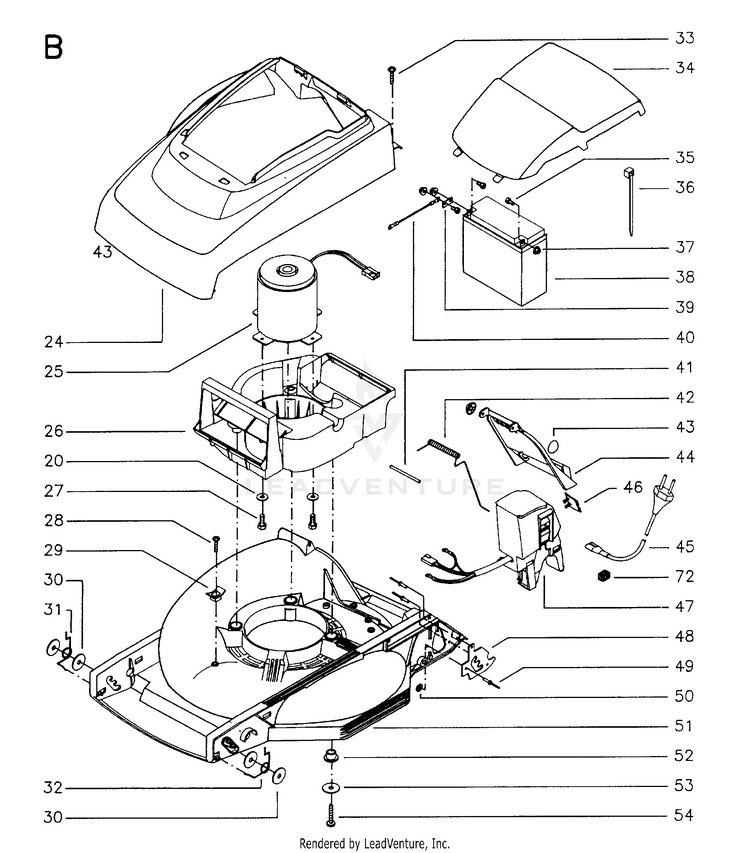

FRAME & ENGINE

...
...
36
NEEDS DESCRIPTION HUS-516886600
...
26
NEEDS DESCRIPTION HUS-516633011
...
72
NEEDS DESCRIPTION HUS-516889700
...
50
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
40
NEEDS DESCRIPTION HUS-516883900
...
39
NEEDS DESCRIPTION HUS-516889000
...
24
NEEDS DESCRIPTION HUS-516883407
...
46
NEEDS DESCRIPTION HUS-516886300
...
38
NEEDS DESCRIPTION HUS-516877400
...
30
Washer, Flat 1-1/2" x .375" x .062" HUS-734117341
...
31
SPRING HUS-516622101
...
37
NEEDS DESCRIPTION HUS-516935401
...
34
NEEDS DESCRIPTION HUS-516883307
...
27
NEEDS DESCRIPTION HUS-725236853
...
41
HOLDER HUS-516636401
...
45
NEEDS DESCRIPTION HUS-516888300
...
32
SPRING HUS-516622401
...
51
NEEDS DESCRIPTION HUS-517770282
...
44
COVER HUS-516872007
...
42
SPRING HUS-516506601
...
20
WASHER HUS-516449101
...
53
NEEDS DESCRIPTION HUS-516936501
...
33
SCREW HUS-516924701
...
54
SCREW HUS-516924701
...
48
SUPPORT HUS-516619501
...
28
SCREW HUS-729529371
...
35
NEEDS DESCRIPTION HUS-516935301
...
29
NEEDS DESCRIPTION HUS-516936800
...
25
NEEDS DESCRIPTION HUS-516890036
...
43
WASHER HUS-516922500
...
47
NEEDS DESCRIPTION HUS-517770324
...
52
WASHER HUS-516851000
...
49
RIVET HUS-516924000

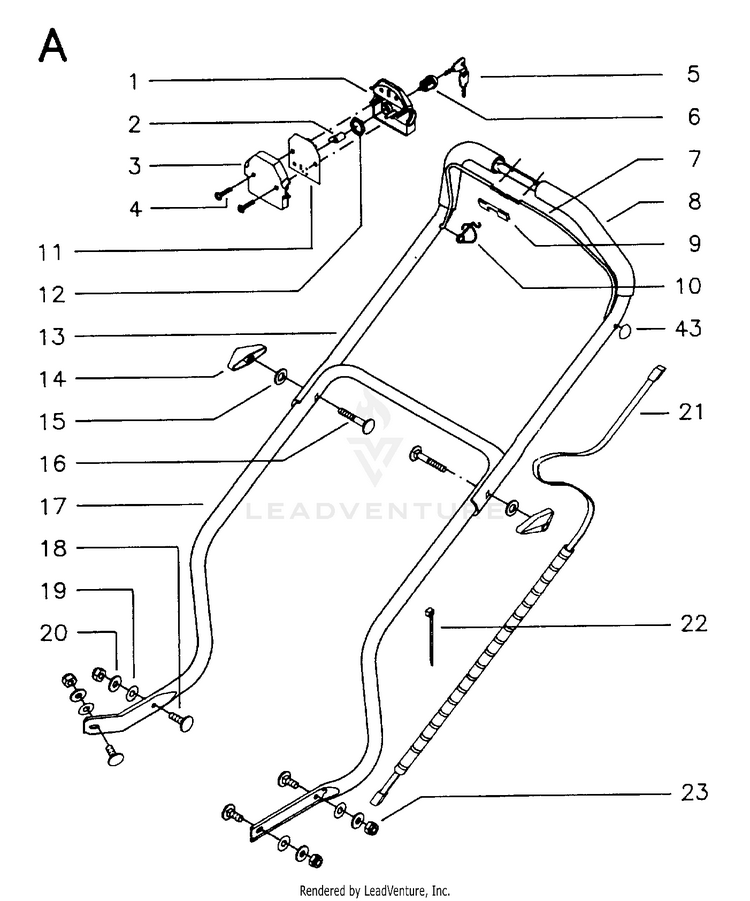

HANDLE & CONTROLS

...
...
7
NEEDS DESCRIPTION HUS-516634607
...
18
SCREW HUS-727636801
...
16
SCREW HUS-727646101
...
11
NEEDS DESCRIPTION HUS-516877800
...
14
WINGNUT HUS-512793167
...
8
VIBRATION DAMPENER HUS-516884009
...
12
NEEDS DESCRIPTION HUS-516935201
...
3
NEEDS DESCRIPTION HUS-516883211
...
9
NEEDS DESCRIPTION HUS-517770325
...
2
NEEDS DESCRIPTION HUS-516887700
...
13
NEEDS DESCRIPTION HUS-516634711
...
10
NEEDS DESCRIPTION HUS-516635201
...
22
Tie-Wrap HUS-516844509
...
6
NEEDS DESCRIPTION HUS-516883700
...
1
NEEDS DESCRIPTION HUS-516879111
...
5
NEEDS DESCRIPTION HUS-516635901
...
21
NEEDS DESCRIPTION HUS-516883800
...
43
WASHER HUS-516922500
...
15
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
20
WASHER HUS-516449101
...
17
HANDLE HUS-516448111
...
23
LOCKNUT M6 HUS-732211601
...
19
NEEDS DESCRIPTION HUS-516936401
...
4
SCREW HUS-729525971

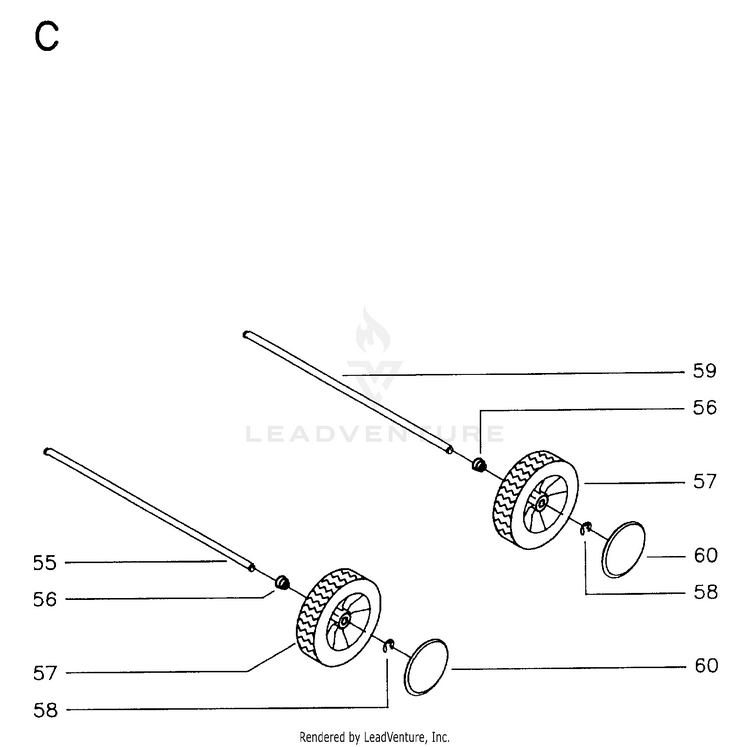

WHEELS & TIRES

...
...
57
WHEEL HUS-516827009
...
56
CONE SPRING HUS-516436801
...
58
SNAP RING HUS-515116038
...
60
HUB CAP HUS-516854910
...
55
SHAFT HUS-516512301
...
59
SHAFT HUS-516512401
