Husqvarna ROYAL 46 Walk Behind Mower

Model: ROYAL 46

Back To Assemblies

Save Part Not Listed?
product name

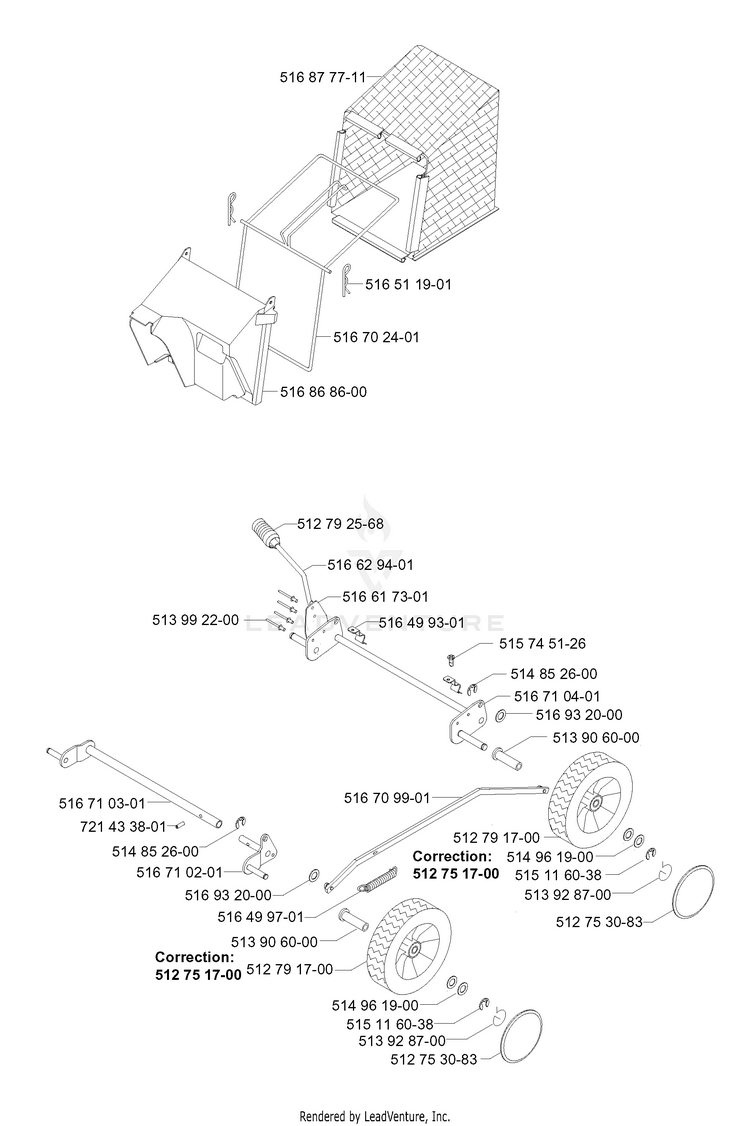

WHEELS & TIRES 6

...
...
516 49 93-01
PLATE HUS-516499301
...
516 62 94-01
LEVER HUS-516629401
...
516 70 99-01
ROD HUS-516709901
...
514 96 19-00
WASHER HUS-514961900
...
516 93 20-00
WASHER HUS-516932000
...
516 87 77-11
BAG HUS-516877711
...
513 92 87-00
SPRING HUS-513928700
...
513 99 22-00
RIVET HUS-513992200
...
513 90 60-00
SPRING HUS-513906000
...
721 43 38-01
KEY HUS-721433801
...
514 85 26-00
RETAINING RING HUS-514852600
...
512 79 25-68
KNOB HUS-512792568
...
515 74 51-26
SCREW HUS-515745126
...
515 11 60-38
SNAP RING HUS-515116038
...
516 71 04-01
SHAFT HUS-516710401
...
516 51 19-01
PIN HUS-516511901
...
516 70 24-01
SUPPORT HUS-516702401
...
516 49 97-01
SPRING HUS-516499701
...
516 71 03-01
SHAFT HUS-516710301
...
516 61 73-01
BRACKET HUS-516617301
...
516 71 02-01
BRACKET HUS-516710201
...
512 75 30-83
HUB HUS-512753083
...
512 75 17-00
WHEEL CORRECTION: HUS-512828300
...
516 86 86-00
COVER HUS-516868600
