Husqvarna ROYAL 46 Walk Behind Mower

Model: ROYAL 46

Back To Assemblies

Save Part Not Listed?
product name

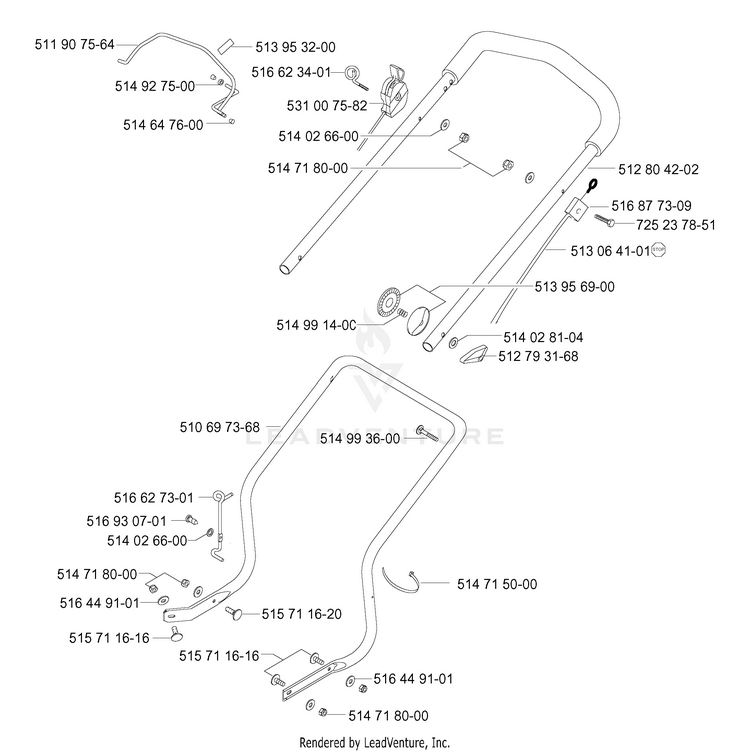

HANDLE & CONTROLS 2

...
...
514 02 66-00
WASHER HUS-514026600
...
515 71 16-16
SCREW HUS-727636801
...
514 99 36-00
BOLT HUS-514993600
...
516 93 07-01
SCREW HUS-516930701
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
512 80 42-02
NEEDS DESCRIPTION HUS-512804202
...
516 62 73-01
HOLDER HUS-516627301
...
516 44 91-01
WASHER HUS-516449101
...
515 71 16-20
SCREW HUS-515711620
...
512 79 31-68
WINGNUT HUS-512793167
...
513 06 41-01
NEEDS DESCRIPTION HUS-513064101
...
516 87 73-09
BRACKET HUS-516877309
...
725 23 78-51
SCREW HUS-725237851
...
514 71 50-00
Cable Tie HUS-514715000
...
510 69 73-68
NEEDS DESCRIPTION HUS-510697368
...
516 62 34-01
GUIDE HUS-516623401
...
513 95 32-00
DECAL HUS-513953200
...
514 64 76-00
Knob HUS-514647600
...
514 02 81-04
WASHER HUS-514028104
...
513 95 69-00
NEEDS DESCRIPTION HUS-513956900
...
514 99 14-0C
NEEDS DESCRIPTION HUS-51499140C
...
531 00 75-82
NEEDS DESCRIPTION HUS-531007582
...
514 92 75-00
NEEDS DESCRIPTION HUS-514927500
...
511 90 75-64
BAIL ARM:BRAKE HUS-511907564
