Husqvarna ROYAL 46 - 964473839 (1999-02) Walk Behind Mower

Model: ROYAL 46 - 964473839 (1999-02)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
512 75 30-83
HUB HUS-512753083
...
516 93 14-00
PINION LH HUS-516931400
...
516 93 07-01
SCREW HUS-516930701
...
516 93 13-00
NEEDS DESCRIPTION RH HUS-516931300
...
626 99 09-00
DECAL HUS-626990900
...
514 88 31-00
PAWL HUS-514883100
...
515 12 39-30
SCREW HUS-515123931
...
513 68 71-00
WHEEL HUS-513867100
...
516 61 87-11
BRACKET HUS-516618711
...
514 02 66-00
WASHER HUS-514026600
...
516 61 73-01
BRACKET HUS-516617301
...
729 53 67-71
SCREW HUS-729536771
...
516 93 33-00
BUSHING HUS-516933300
...
517 77 01-62
HOUSING HUS-517770162
...
516 64 46-07
LOOP HUS-516644607
...
514 99 45-01
Bolt HUS-514994501
...
514 71 50-00
Cable Tie HUS-514715000
...
516 88 29-00
BEARING HUS-516882900
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
513 97 48-00
DECAL HUS-513974800
...
516 87 72-00
CHAIN WHEEL CORRECTION: HUS-516877200
...
516 87 73-09
BRACKET HUS-516877309
...
516 86 80-00
PULLEY CORRECTION HUS-516868000
...
516 87 19-07
COVER HUS-516871907
...
515 79 60-01
WASHER HUS-515796001
...
516 93 37-04
BUSHING HUS-516933704
...
516 44 91-01
WASHER HUS-516449101
...
513 90 70-00
SHAFT HUS-513907000
...
516 80 93-25
HANDLE HUS-516809325
...
516 80 89-00
SHAFT HUS-516808900
...
516 51 19-01
PIN HUS-516511901
...
725 23 78-51
SCREW HUS-725237851
...
516 62 94-01
LEVER HUS-516629401
...
514 93 44-00
HUS-514934400
...
516 88 46-07
CHASSIS HUS-516884607
...
516 93 39-01
SCREW HUS-516933901
...
516 71 03-01
SHAFT HUS-516710301
...
513 86 49-00
WIRE HUS-513864900
...
515 11 60-21
SNAP RING HUS-515116021
...
514 99 56-00
BOLT HUS-514995600
...
516 70 99-01
ROD HUS-516709901
...
516 43 87-01
STEEL PLATE ADAPTER HUS-516438701
...
514 00 53-00
KEY HUS-514005300
...
517 81 00-66
WIRE HUS-517810066
...
514 85 26-00
RETAINING RING HUS-514852600
...
515 71 16-16
SCREW HUS-727636801
...
516 61 71-11
BRACKET HUS-516617111
...
516 85 10-00
WASHER HUS-516851000
...
516 87 22-07
COVER HUS-516872207
...
516 63 18-01
COVER HUS-516631801
...
513 93 75-00
SPRING HUS-513937500
...
513 95 31-00
Decal HUS-513953100
...
516 86 69-11
COVER HUS-516866911
...
517 81 00-65
THROTTLE TRIGGER HUS-517810065
...
515 77 20-09
SPRING WASHER HUS-735116401
...
516 88 70-00
ADAPTER HUS-512794200
...
516 61 91-01
SPRING HUS-516619101
...
516 71 32-00
BRACKET HUS-516713200
...
516 62 34-01
GUIDE HUS-516623401
...
516 71 02-01
BRACKET HUS-516710201
...
515 74 51-26
SCREW HUS-515745126
...
721 43 38-01
KEY HUS-721433801
...
515 13 97-54
WASHER HUS-515139754
...
514 99 54-00
RIVET HUS-514995400
...
516 90 76-00
BELT HUS-531005036
...
516 87 72-00
CHAIN WHEEL HUS-516877200
...
516 61 74-00
WHEEL HUS-516617400
...
516 44 85-01
HOLDER HUS-516636401
...
516 87 77-11
BAG HUS-516877711
...
515 11 30-32
CHAIN HUS-515113032
...
516 49 93-01
PLATE HUS-516499301
...
516 93 03-01
SLEEVE HUS-516930301
...
728 63 66-00
SCREW HUS-728636600
...
514 02 81-04
WASHER HUS-514028104
...
513 95 32-00
DECAL HUS-513953200
...
516 44 81-11
HANDLE HUS-516448111
...
512 79 31-68
WINGNUT HUS-512793167
...
531 00 50-35
BLADE HUS-531005035
...
516 86 95-11
COVER HUS-516869511
...
516 93 20-00
WASHER HUS-516932000
...
516 49 53-01
SPACER HUS-516495301
...
512 75 17-00
WHEEL HUS-512828300
...
516 64 47-07
BRAKE LEVER HUS-516644707
...
734 11 63-01
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
516 62 73-01
HOLDER HUS-516627301
...
516 86 86-00
COVER HUS-516868600
...
516 93 04-01
SCREW HUS-516930401
...
513 90 60-00
SPRING HUS-513906000
...
514 90 31-00
STARLOCK HUS-514903100
...
516 49 97-01
SPRING HUS-516499701
...
514 97 77-00
DECAL HUS-514977700
...
514 94 50-00
SCREW HUS-514945000
...
516 87 20-07
COVER HUS-516872007
...
514 99 46-00
NUT HUS-514994600
...
516 86 80-00
PULLEY HUS-516868000
...
514 91 08-00
HUS-514910800
...
516 88 57-11
COVER HUS-516885711
...
516 70 24-01
SUPPORT HUS-516702401
...
512 79 25-68
KNOB HUS-512792568

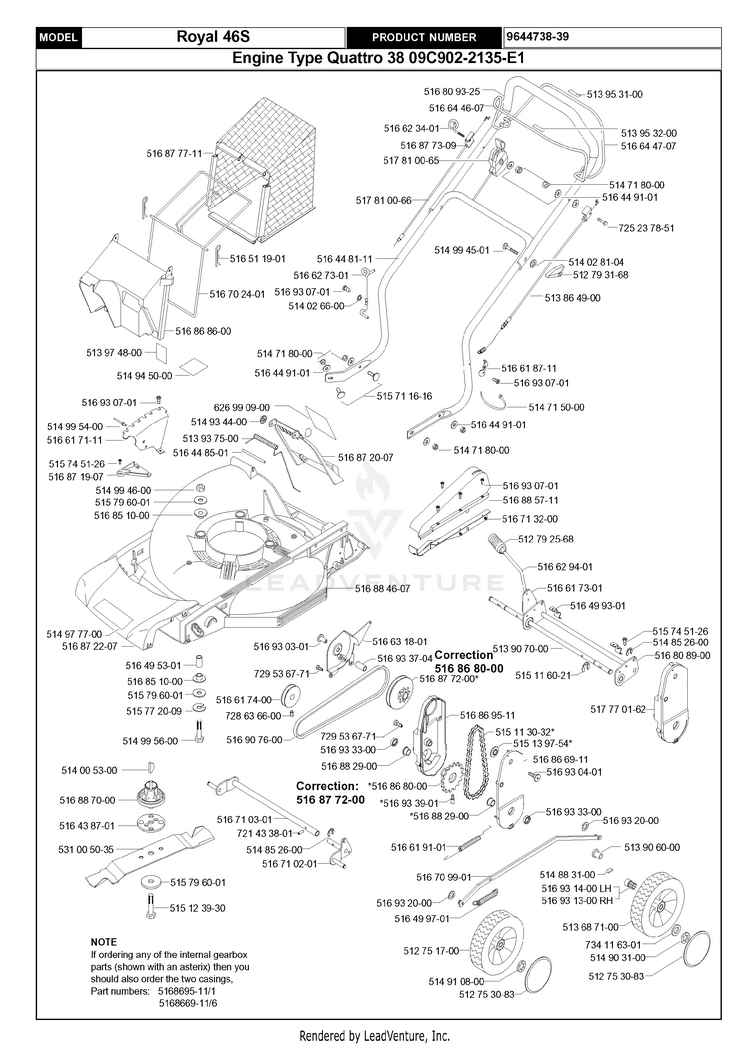

Schematic Image Zoomed
