Husqvarna ROYAL 46 (2000-04) Walk Behind Mower

Model: ROYAL 46 (2000-04)

Back To Assemblies

Save Part Not Listed?
product name

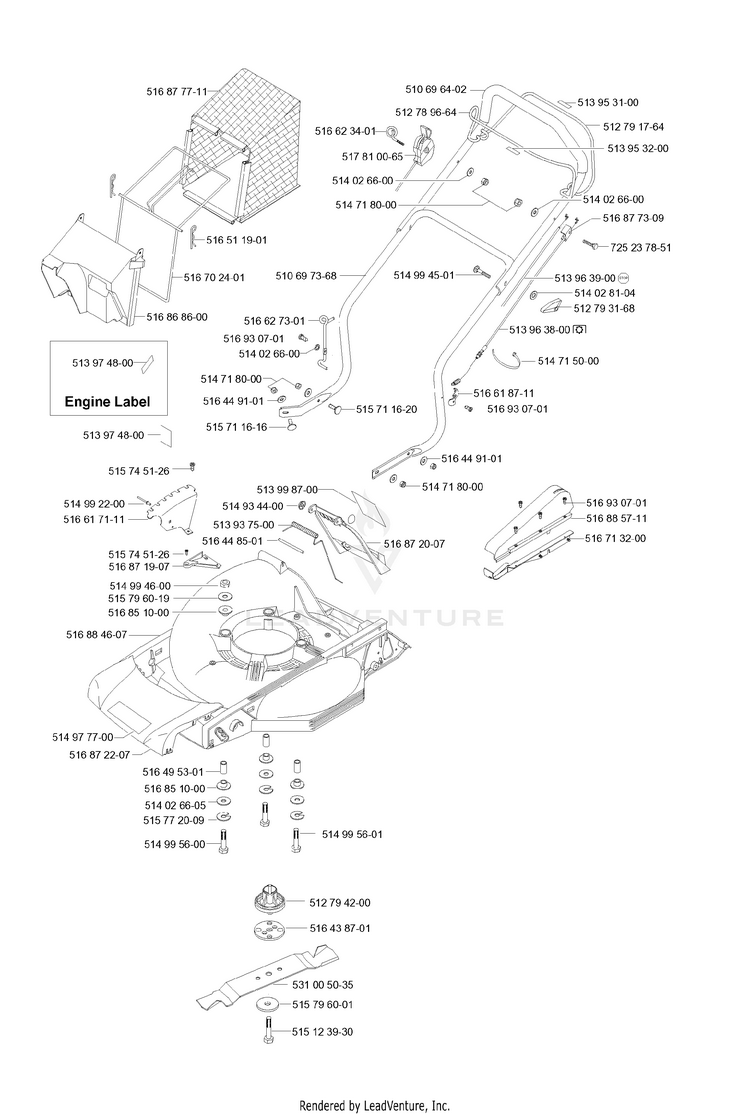

FRAME

...
...
510 69 64-02
NEEDS DESCRIPTION HUS-510696402
...
515 79 60-19
Washer HUS-515796019
...
512 79 31-68
WINGNUT HUS-512793167
...
516 44 91-01
WASHER HUS-516449101
...
510 69 73-68
NEEDS DESCRIPTION HUS-510697368
...
516 61 71-11
BRACKET HUS-516617111
...
514 02 81-04
WASHER HUS-514028104
...
531 00 50-35
BLADE HUS-531005035
...
516 44 85-01
HOLDER HUS-516636401
...
513 96 38-00
NEEDS DESCRIPTION HUS-513963800
...
516 87 22-07
COVER HUS-516872207
...
514 71 50-00
Cable Tie HUS-514715000
...
514 02 66-00
WASHER HUS-514026600
...
513 97 48-00
DECAL HUS-513974800
...
516 87 73-09
BRACKET HUS-516877309
...
515 79 60-01
WASHER HUS-515796001
...
516 70 24-01
SUPPORT HUS-516702401
...
516 49 53-01
SPACER HUS-516495301
...
514 97 77-00
DECAL HUS-514977700
...
516 62 34-01
GUIDE HUS-516623401
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
514 99 22-00
NEEDS DESCRIPTION HUS-514992200
...
514 99 45-01
Bolt HUS-514994501
...
513 95 31-00
Decal HUS-513953100
...
516 93 07-01
SCREW HUS-516930701
...
516 71 32-00
BRACKET HUS-516713200
...
513 96 39-00
NEEDS DESCRIPTION HUS-513963900
...
516 62 73-01
HOLDER HUS-516627301
...
514 93 44-00
HUS-514934400
...
516 43 87-01
STEEL PLATE ADAPTER HUS-516438701
...
516 88 57-11
COVER HUS-516885711
...
516 87 19-07
COVER HUS-516871907
...
515 77 20-09
SPRING WASHER HUS-735116401
...
512 79 17-64
LOOP HUS-512791764
...
513 99 87-00
NEEDS DESCRIPTION HUS-513998700
...
517 81 00-65
THROTTLE TRIGGER HUS-517810065
...
725 23 78-51
SCREW HUS-725237851
...
514 02 66-05
WASHER HUS-514026605
...
514 99 56-01
BOLT HUS-514995601
...
514 99 46-00
NUT HUS-514994600
...
516 87 20-07
COVER HUS-516872007
...
516 85 10-00
WASHER HUS-516851000
...
516 51 19-01
PIN HUS-516511901
...
516 61 87-11
BRACKET HUS-516618711
...
514 99 56-00
BOLT HUS-514995600
...
515 74 51-26
SCREW HUS-515745126
...
515 71 16-20
SCREW HUS-515711620
...
516 88 46-07
CHASSIS HUS-516884607
...
515 71 16-16
SCREW HUS-727636801
...
516 86 86-00
COVER HUS-516868600
...
512 78 96-64
LOOP HUS-512789664
...
513 95 32-00
DECAL HUS-513953200
...
516 87 77-11
BAG HUS-516877711
...
512 79 42-00
ADAPTER HUS-512794200
...
515 12 39-30
SCREW HUS-515123931
...
513 93 75-00
SPRING HUS-513937500
