Husqvarna RLTE1238AR (1999 & Before) Tractor

Model: RLTE1238AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

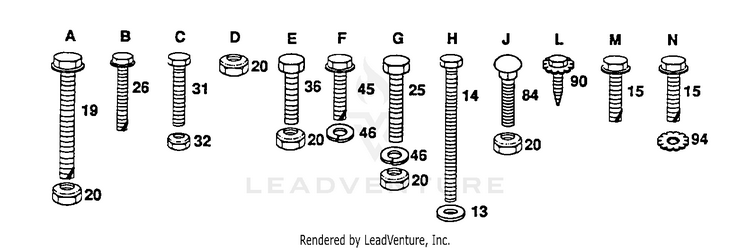

HARDWARE DRIVE

...
...
13
LOCKWASHER HUS-10040500
...
14
SCREW HEX HD CAP HUS-123528X
...
15
SCREW HUS-17490620
...
19
BOLT HUS-74760644
...
20
SUB= 73690600 HUS-73680600
...
25
BOLT HUS-74760616
...
26
SCREW HUS-17490512
...
31
BOLT HUS-74760512
...
32
SUB= 73690500 HUS-73680500
...
35
STRAP TORQUE HUS-121520X
...
45
SCREW HUS-17490612
...
46
WASHER HUS-19131312
...
84
BOLT HUS-72140606
...
90
SUB= 17030814 HUS-17030808
...
94
LOCKWASHER HUS-11050600
