Husqvarna RLTE1238AR (1999 & Before) Tractor

Model: RLTE1238AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

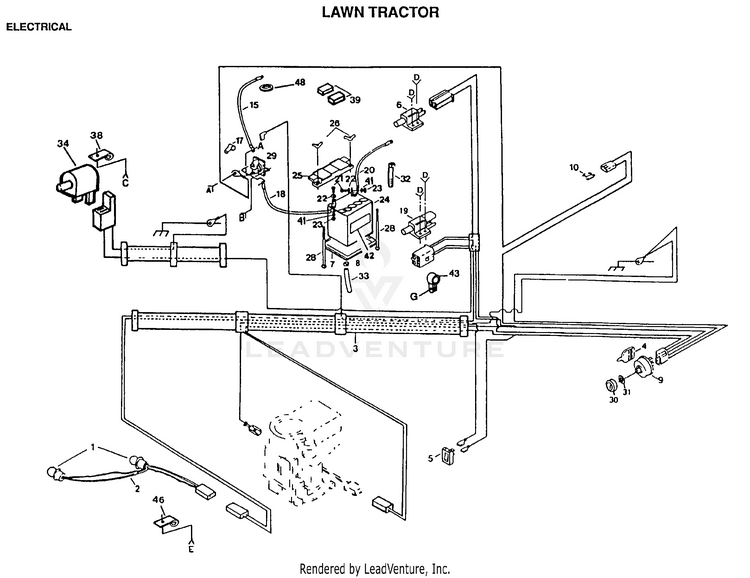

ELECTRICAL

...
...
1
SUB= 4152J HUS-7662J
...
2
HARNESS T HUS-110859X
...
3
HARNESS IGNITION HUS-126399X
...
4
SUB= STD365410 HUS-7552H
...
5
SWITCH LT HUS-110712X
...
6
SWITCH-INTER. GT HUS-104445X
...
7
"TRAY T, BATTERY" HUS-7603J
...
8
HOSE CLAMP T HUS-109596X
...
9
SUB= STD365402 HUS-4406R
...
10
FUSE HYT HUS-108824X
...
15
SUB= 2955J HUS-2033J
...
17
SUB= 154336 HUS-719J
...
18
STARTER CABLE GT HUS-5114J
...
19
SWITCH INTERLOCKT HUS-109553X
...
20
CABLE LTV HUS-105002X
...
21
BOLT LT HUS-74760412
...
22
WASHER HUS-19091016
...
23
SUB= 50675 HUS-73220400
...
24
SUB= 123899X HUS-121265X
...
25
SUB= 150109 HUS-102476X
...
26
SUB= 146525 HUS-123198X
...
28
BOLT HUS-72240460
...
29
SUB= 146154 HUS-109081X
...
30
SUB= 147626 HUS-109787X
...
31
SUB= 124211X HUS-109788X
...
32
WIRE TIE HUS-7192 J
...
33
SUB= 109238X HUS-105687X
...
34
SWITCH SEAT HUS-121305X
...
38
CLIP T HUS-4171R
...
39
"CAP,BATTERY " HUS-121264X
...
41
LOCKWASHER HUS-10040400
...
42
DECAL HUS-121549X
...
43
INSUL CLIP T HUS-5320R
...
46
CLIP T HUS-2751R
...
48
LOCKWASHER HUS-11150400
...
xx
SHEET INSTR LT HUS-101539X
...
xx
SHEET-INSTRUCTION (FRENCH) HUS-101572X
...
xx
MANUAL (ENG) HUS-126150X
...
xx
"MANUAL,OWNERS T" HUS-126151X
