Husqvarna RLTE1238AR (1999 & Before) Tractor

Model: RLTE1238AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

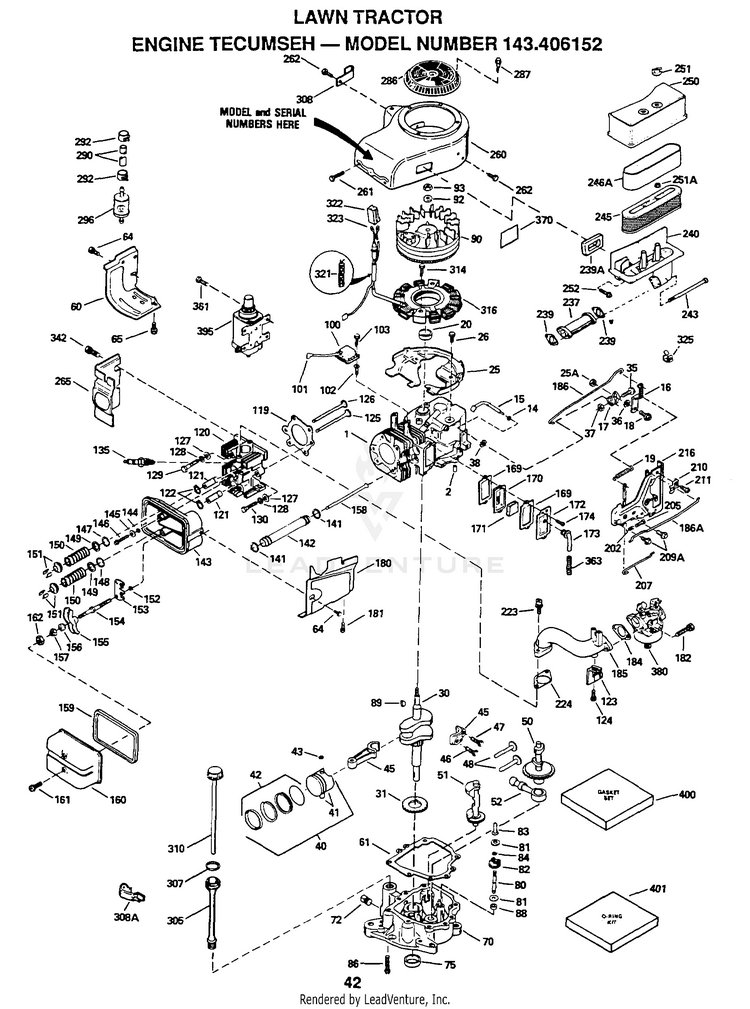

ENGINE

...
...
1
CYLINDER ASSY HUS-35323A
...
2
PIN, DOWEL HUS-27652
...
14
WASHER HUS-28277
...
15
ROD, GOVERNOR HUS-35324
...
16
LEVER, GOVERNOR HUS-35520
...
17
CLAMP, THROTTLE LEVER HUS-29916
...
18
SCREW HUS-650548
...
19
SPRING, CONTROL HUS-35521
...
20
SEAL, OIL HUS-35319
...
25
BAFFLE, BLOWER HOUSING HUS-35326
...
25A
NUT & WASHER HUS-30322
...
26
SCREW HUS-650561
...
30
CRANKSHAFT ASSY HUS-35336A
...
31
GEAR, COUNTERBALANCE HUS-35327
...
35
SCREW HUS-29826
...
36
WASHER HUS-29918
...
37
NUT, LOCK HUS-29216
...
38
RING, RETAINING HUS-29642
...
40
PISTON, PIN & RING ASSY HUS-35776
...
40A
PISTON, PIN & RING ASSY HUS-35777
...
40B
PISTON, PIN & RING ASSY HUS-35778
...
41
PISTON & PIN ASSY HUS-35773
...
41A
PISTON & PIN ASSY HUS-35774
...
41B
PISTON & PIN ASSY HUS-35775
...
42
RING SET, PISTON HUS-35779
...
42A
RING SET, PISTON HUS-35780
...
42B
RING SET, PISTON HUS-35781
...
43
RING, PISTON PIN RETAINING HUS-35772
...
45
ROD ASSY, CONNECTING HUS-35330A
...
46
BOLT, CONNECTING ROD HUS-650908
...
47
BOLT, CONNECTING ROD HUS-650882
...
48
LIFTER, VALVE HUS-35313
...
50
CAMSHAFT HUS-35314A
...
51
WEIGHT ASSY, COUNTERBALANCE HUS-35315
...
52
PUMP ASSY, OIL HUS-31356
...
60
EXTENSION, BLOWER HOUSING HUS-35316
...
61
GASKET, MOUNTING FLANGE HUS-35317
...
64
SCREW HUS-30063
...
65
SCREW HUS-650128
...
70
FLANGE, MOUNTING HUS-35711A
...
72
PLUG, OIL DRAIN HUS-31927
...
75
SEAL, OIL HUS-35319
...
80
SHAFT, GOVERNOR HUS-35712
...
81
WASHER, FLAT HUS-35479
...
82
GEAR ASSY, GOVERNOR HUS-35321
...
83
SPOOL, GOVERNOR HUS-35322
...
84
RING, RETAINING HUS-29193
...
86
SCREW HUS-650833
...
88
SPACER, GOVERNOR GEAR HUS-31707A
...
89
KEY, FLYWHEEL HUS-32589
...
90
FLYWHEEL HUS-611093
...
92
WASHER, LOCK HUS-650880
...
93
NUT, FLYWHEEL HUS-650881
...
100
SOLID STATE ASSY HUS-35135
...
101
SPARK PLUG COVER HUS-610118
...
102
STUD, SOLID STATE ASSY HUS-650872
...
103
SCREW HUS-650814
...
119
GASKET, CYLINDER HEAD HUS-35306A
...
120
HEAD ASSY, CYLINDER HUS-35307
...
121
VALVE GUIDE KIT HUS-730218
...
122
RING, RETAINER HUS-792035
...
123
BRACE, INTAKE PIPE HUS-35288
...
124
SCREW HUS-650738
...
125
VALVE, EXHAUST HUS-35308
...
125A
VALVE, EXHAUST HUS-35433
...
126
VALVE, INTAKE HUS-35309
...
126A
VALVE, INTAKE HUS-35432
...
127
WASHER, FLAT HUS-650691
...
128
WASHER, BELLEVILLE HUS-650690
...
129
SCREW HUS-650746
...
130
SCREW HUS-650692
...
135
RESISTOR SPARK PLUG HUS-34046
...
141
O RING HUS-33481
...
142
TUBE, PUSH ROD HUS-35475
...
143
HOUSING, ROCKER ARM HUS-35310
...
144
O-RING HUS-33484
...
145
WASHER, FLAT HUS-650168
...
146
CONNECTING ROD BOLT HUS-32610A
...
147
O-RING HUS-33509
...
148
O-RING HUS-34410
...
149
CAP, VALVE SPRING HUS-33510
...
150
SPRING, VALVE HUS-33507
...
151
CAP, VALVE SPRING KEEPER HUS-33508
...
152
O-RING HUS-35295
...
153
GUIDE, PUSH ROD HUS-35296
...
154
STUD, ROCKER ARM HUS-650878
...
155
ARM, ROCKER HUS-35297
...
156
BEARING, ROCKER ARM HUS-35298
...
157
NUT ASSY, LOCK HUS-28264
...
158
ROD, PUSH HUS-35466
...
159
O-RING ASSY HUS-35299B
...
160
COVER, ROCKER ARM HOUSING HUS-35300
...
161
SCREW HUS-650879
...
162
NUT, HEX JAM HUS-650903
...
169
GASKET, VALVE COVER HUS-27896A
...
170
BODY, BREATHER HUS-28423
...
171
ELEMENT, BREATHER HUS-28424
...
172
COVER, VALVE SPRING BOX HUS-28425
...
173
TUBE, BREATHER HUS-35350
...
174
SCREW HUS-650128
...
180
EXTENSION, BLOWER HOUSING HUS-35301
...
181
SCREW HUS-650128
...
182
SCREW HUS-650517
...
184
GASKET, CARBURETOR TO INTAKE PIPE HUS-33263
...
185
PIPE, INTAKE HUS-35304
...
186
LINK, GOVERNOR HUS-35522
...
186A
LINK, CHOKE HUS-35523
...
202
SPRING, COMPRESSION HUS-33802
...
205
SCREW HUS-650777
...
207
LINK, CONTROL BRACKET HUS-35525
...
209A
SCREW HUS-650902
...
210
CLIP, CONDUIT HUS-27793
...
211
SCREW HUS-28942
...
216
BRACKET ASSY HUS-35524
