Husqvarna RLTE1238AR (1999 & Before) Tractor

Model: RLTE1238AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

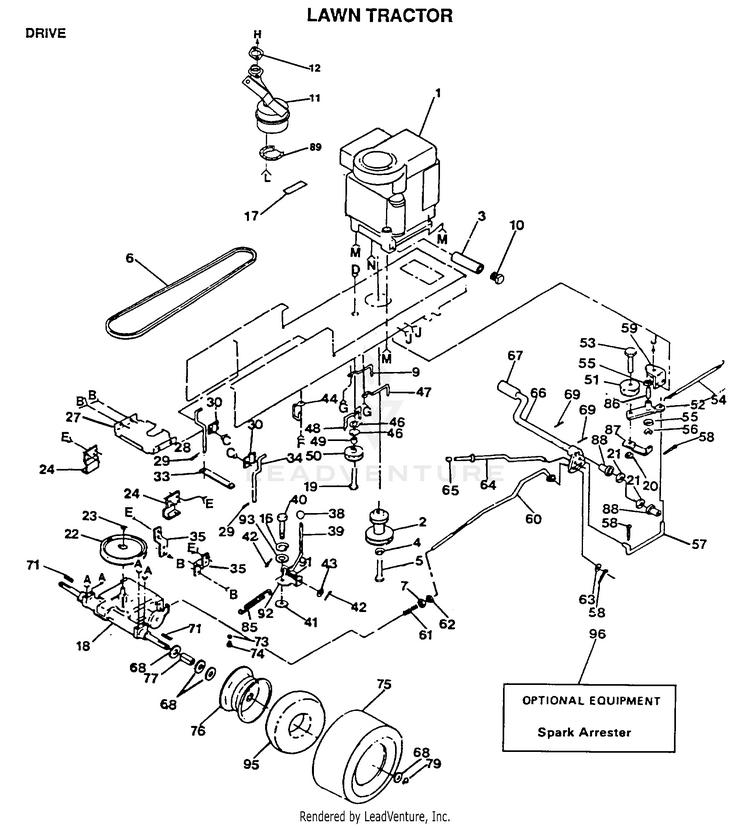

DRIVE

...
...
1
SUB= 122073X HUS-126126X
...
2
SUB= 137326 HUS-105731X
...
3
"PIPE, DRAIN OIL" HUS-123995X
...
4
LOCKWASHER HUS-10040700
...
5
SUB= 71130720 HUS-74770720
...
6
BELT-V.90.0.GD.DR HUS-125907X
...
7
NUT HUS-73800600
...
9
KEEPER BELT ENGLH HUS-121218X
...
11
SUB= 134874 HUS-122983X
...
12
SUB= 272293 HUS-125593X
...
16
LOCKWASHER HUS-10040400
...
17
DECAL HUS-121120X
...
18
SUB= 142594 HUS-120896X
...
19
BOLT HUS-74760644
...
20
SUB= 73690600 HUS-73680600
...
21
WASHER LT HUS-19211616
...
22
PULLEY TRANS HUS-123666X
...
23
SUB= 2267J HUS-12000028
...
24
BRACKET LT HUS-109167X
...
27
BRKT SUPPORT LT HUS-108171X
...
28
KEEPER BELT LH HUS-123662X
...
29
SPRING.RETAINER HUS-4921H
...
30
CLAMP LT HUS-106190X
...
33
STRAP LOCATOR HUS-123770X
...
34
KEEPER BELTRH HUS-123663X
...
35
STRAP TORQUE HUS-121520X
...
36
SUB= 74780612 HUS-74760612
...
38
CONTROL KNOB LT HUS-106279X
...
39
ROD SHIFTER HUS-124461X
...
40
SUB= 74550412 HUS-71040412
...
41
WASH-SHFT PLT LT HUS-105701X
...
42
PIN COTTER 1/8 HUS-76020416
...
43
WASHER HUS-19151216
...
44
SUB= 140312 HUS-104777X
...
46
WASHER HUS-19131312
...
47
"KEEPER,BLT ENG LT" HUS-105730X
...
48
BELT KEEPER LT HUS-109070X
...
49
SPACER T HUS-4470J
...
50
PULLEY.IDLER.FLAT HUS-123674X
...
51
SUB= 139245 HUS-123766X
...
52
ARM IDLER HUS-123789X
...
53
SUB= 74930624 HUS-74760624
...
54
"SPRING, RETURN LT" HUS-105709X
...
55
WASHER LT HUS-110812X
...
56
KLIP RING HUS-12000039
...
57
"LINK, CLUTCH T" HUS-105710X
...
58
COTTER PIN HUS-76020412
...
59
BRKT ASM HUS-123102X
...
60
BRAKE ROD LT HUS-110437X
...
61
SPRING ROD LT HUS-106888X
...
62
NUT HUS-73350600
...
63
WASHER HUS-19131316
...
64
SUB= 128904 HUS-125638X
...
65
SUB= 71673 HUS-7733J
...
66
SUB= 149001 HUS-122424X
...
67
PEDAL COVER T HUS-8883R
...
68
WASHER HUS-121749X
...
69
SUB= 2882J HUS-1572H
...
71
SQUARE KEY HUS-123583X
...
73
VALVE CAP HUS-59192
...
74
VALVE STEM LT HUS-65139
...
75
TIRE.TS2.18X8.5 HUS-123969X
...
76
SUB= 106108X427 HUS-106108X311
...
77
SPACER LT HUS-109502X
...
79
E-RING LT HUS-12000001
...
85
SUB= 146682 HUS-110422X
...
86
"LY, BEARING" HUS-105706X
...
87
RETAIN BELT HUS-123205X
...
88
NYLON BEARING HUS-120183X
...
89
DEFLECTOR.222573 HUS-101326L
...
91
SPRING LT HUS-105700X
...
92
PLATE SHIFT LT HUS-106919X
...
93
WASHER LT HUS-19091210
...
95
TUBE.18X9.5-8 HUS-7152J
...
96
SPARK ARRESTER HUS-122137X
