Husqvarna RLTE1238AR (1999 & Before) Tractor

Model: RLTE1238AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
223
SCREW HUS-792028
...
224
GASKET, INTAKE PIPE HUS-33515A
...
237
ADAPTER, AIR CLEANER HUS-35286
...
239
GASKET, AIR CLEANER ELBOW HUS-33629
...
239A
GASKET, AIR CLEANER-TO-HOUSING HUS-35408
...
240
BODY ASSY, AIR CLEANER HUS-35402B
...
243
SCREW HUS-650875
...
245
ELEMENT, AIR CLEANER HUS-35403
...
246A
FILTER, POLY PRE-CLEANER HUS-35404
...
250
COVER, AIR CLEANER HUS-35405
...
251
NUT, WING HUS-650886
...
251A
NUT & LOCKWASHER HUS-650825
...
252
SCREW HUS-650887
...
260
HOUSING, BLOWER HUS-35793
...
261
SCREW HUS-30063
...
262
SCREW HUS-29747B
...
265
COVER, CYLINDER HEAD HUS-35290
...
286
SCREEN, DEBRIS HUS-35792
...
287
SCREW HUS-650936
...
290
LINE, FUEL HUS-29774
...
292
FUEL LINE CLAMP HUS-26460
...
296
FILTER, FUEL HUS-34279B
...
305
TUBE, OIL FILL HUS-35574
...
307
O-RING HUS-35499
...
308
CLIP, OIL FILL TUBE HUS-33997
...
308A
CLIP, OIL FILL TUBE HUS-35437
...
310
DIPSTICK, OIL HUS-35576
...
314
SCREW HUS-650873
...
316
COIL ASSY, ALTERNATOR HUS-611113
...
321
DIODE HUS-610935
...
322
CONNECTOR, BODY HUS-610921
...
323
TERMINAL, FEMALE HUS-610922
...
325
CLIP, WIRE HUS-27275
...
342
SCREW HUS-650273
...
361
SCREW HUS-30063
...
363
SPRING, COIL HUS-34148
...
370
DECAL, INSTRUCTION HUS-34346
...
380
CARBURETOR HUS-632490
...
395
STARTER MOTOR HUS-35763
...
400
GASKET SET HUS-35331B
...
401
O-RING KIT HUS-35332

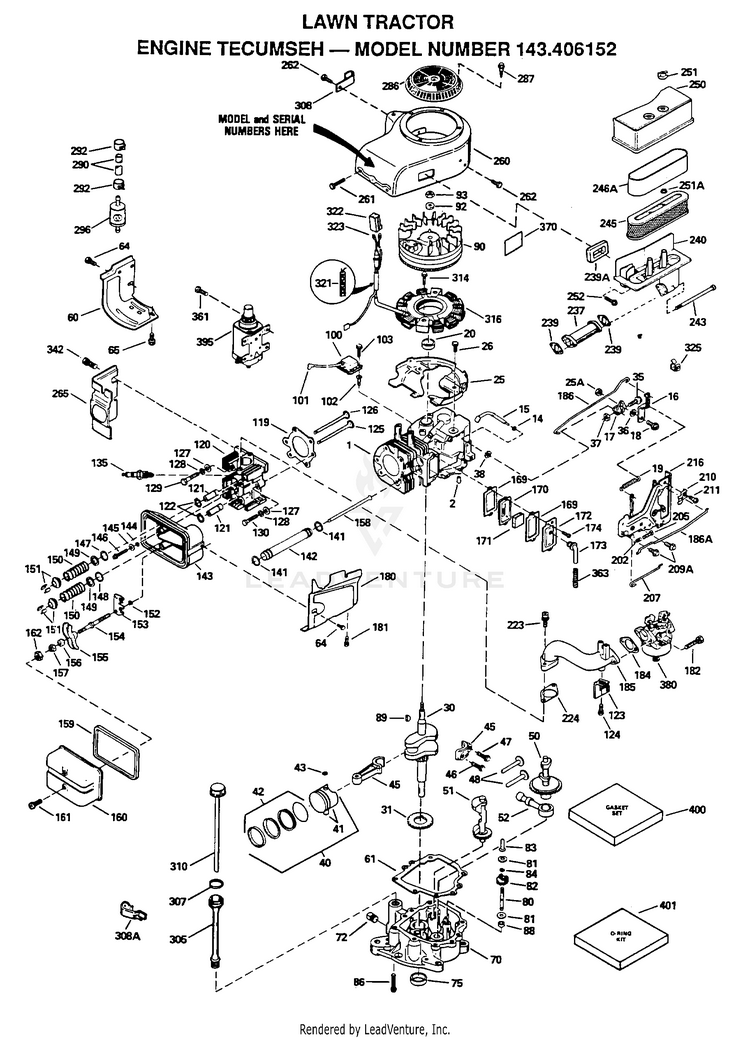

Schematic Image Zoomed
