Husqvarna RLT12R38A (1992) Tractor

Model: RLT12R38A (1992)

Back To Assemblies

Save Part Not Listed?
product name

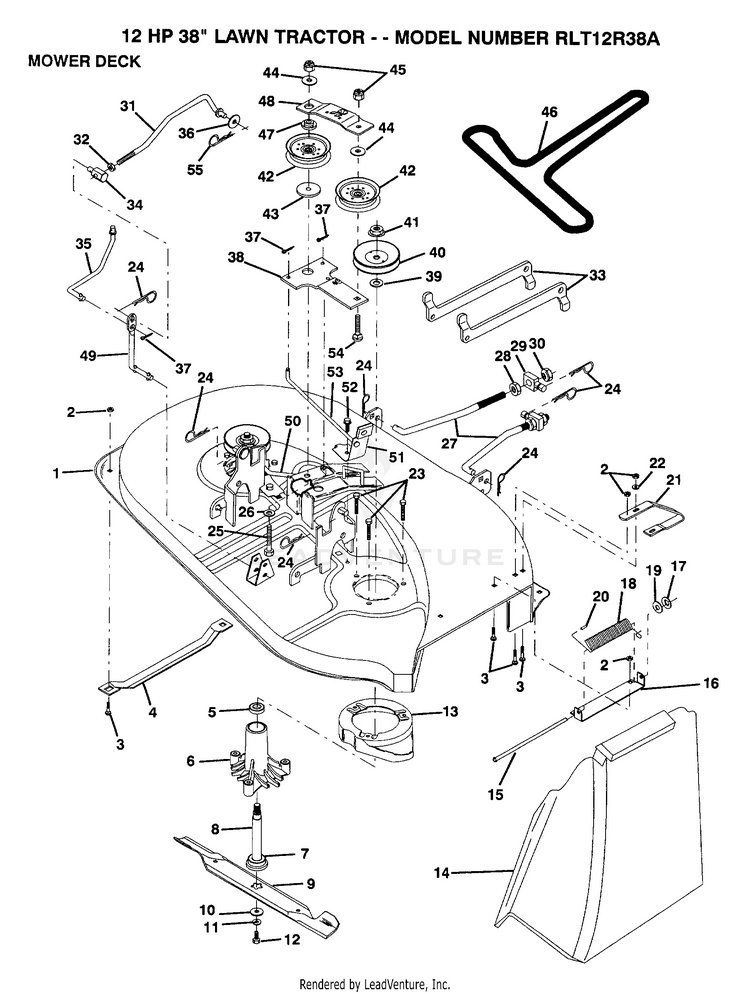

MOWER DECK

...
...
1
MOWER DECK ASSY HUS-132564
...
2
SUB= 73690500 HUS-73680500
...
3
BOLT HUS-72140506
...
4
RUNNER-LH M HUS-7631J
...
5
BEARING HUS-110485X
...
6
HSG ASM MANDREL HUS-128774
...
7
BEARING.BALL HUS-129895
...
8
SUB= 137646 HUS-133172
...
9
SUB= 138497 HUS-127842
...
10
WASHER BLADE HUS-129962
...
11
SUB= 10040600 HUS-10030600
...
12
BLADE BOLT HUS-850857
...
13
SUB= 140329 HUS-128961
...
14
DEFLECTOR-SHLD T HUS-106736X
...
15
ROD-HINGE T HUS-106735X
...
16
SUB= 137607 HUS-105896X
...
17
NUT PUSH M HUS-110452X
...
18
SUB= 123713X HUS-106734X
...
19
WASHER HUS-19111016
...
20
CAP-SLEEVE LT HUS-105304X
...
21
RUNNER RH HUS-128772
...
22
WASHER M HUS-19111216
...
23
SUB= 17580520 HUS-78158
...
24
SUB= 85902 HUS-4939M
...
25
BOLT HUS-74600636
...
26
WASHER GT HUS-19131612
...
27
SEAL.COVER.BAGGER HUS-132256
...
28
NUT HUS-73350800
...
29
TRUNION HUS-130171
...
30
NUT.LK.W/WSH.1/2. HUS-73800800
...
31
CLUTCH ROD PRI HUS-132553
...
32
NUT HUS-73350600
...
33
SUSP ARM REAR HUS-132559
...
34
TRUNNION HUS-133604
...
35
CLUTCH ROD SEC HUS-132554
...
36
WASHER HUS-19131316
...
37
SUB= 3145 HUS-76020312
...
38
IDLER ARM ASSY HUS-133840
...
39
WASHER HUS-129963
...
40
SUB= 153532 HUS-129206
...
41
SUB= 139729 HUS-73050900
...
42
FLAT IDLER PULLEY HUS-131494
...
43
SPACER RETAINER HUS-122052X
...
44
WASHER GT HUS-19131612
...
45
SUB= 73690600 HUS-73680600
...
46
BELT-V.88.12.MW HUS-131290
...
47
RETAINER SPACER HUS-133502
...
48
IDLER ARM STIFF HUS-133503
...
49
PIVOT ROD HUS-133551
...
50
BRAKE ROD LH HUS-131289
...
51
BRAKE ASM HUS-130840
...
52
SCREW HUS-17490512
...
53
BRAKE ROD RH HUS-131288
...
54
BOLT HUS-72110614
...
55
RETAINER M HUS-4497H
...
xx
SUB= 142862 HUS-135499
...
xx
MANDREL ASM HUS-130794
