Husqvarna RLT12R38A (1992) Tractor

Model: RLT12R38A (1992)

Back To Assemblies

Save Part Not Listed?
product name

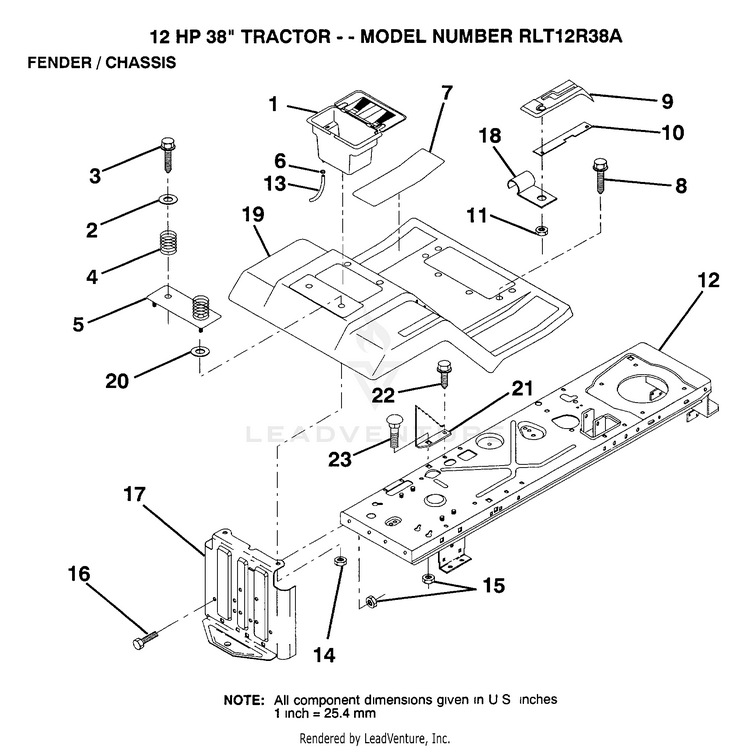

FENDER/CHASSIS

...
...
1
SUB= 156417 HUS-129965
...
2
WASHER HUS-19132012
...
3
SCREW HUS-17490612
...
4
SPRING COMPRESSIO HUS-124181X
...
5
"PLATE, BATTERY" HUS-127115X419
...
6
HOSE CLAMP T HUS-109596X
...
7
PAD FOOTREST HUS-124144X
...
8
SCREW HUS-17490512
...
9
SUB= 126995X428 HUS-126995X
...
10
"SHIFT LOCK, BAR" HUS-124307X
...
11
NUT HUS-124346X
...
12
SUB= 139893 HUS-133384
...
13
SUB= 109238X HUS-105687X
...
14
NUT HUS-73510400
...
15
SUB= 73690500 HUS-73680500
...
16
BOLT HUS-74760512
...
17
DRAWBAR HUS-127880
...
18
"CLIP,INSULATOR" HUS-126470X
...
19
SUB= 140956X419 HUS-132650X419
...
20
WASHER HUS-19091413
...
21
SUB= 140297 HUS-132562
...
22
SCREW LT HUS-17490508
...
23
SUB= 72270506 HUS-72110506
