Husqvarna RL1844B (1991) Tractor

Model: RL1844B (1991)

Back To Assemblies

Save Part Not Listed?
product name

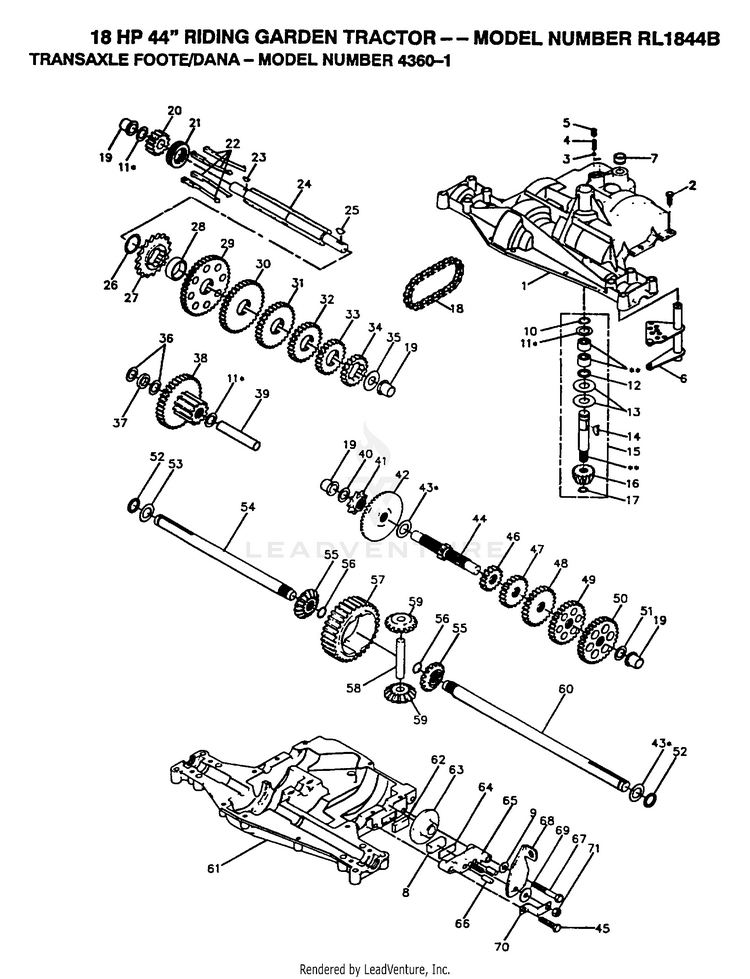

TRANSAXLE

...
...
1
HOUSING UPPER HUS-124643X
...
2
SUB= 74760412 HUS-2274J
...
3
"DETENT, BALL(68003)" HUS-68003
...
4
"SPRING, DETENT LT" HUS-105904X
...
5
"SCREW, SET LT" HUS-105905X
...
6
SUB= 134788 HUS-124637X
...
7
SUB= 108776X HUS-108727X
...
8
PUCK T HUS-120951X
...
9
WASHER T HUS-120993X
...
10
RETAINING RING LT HUS-2267J
...
11
WASHER HUS-3413J
...
xx
WASHER 020 HUS-2233J
...
xx
WASHER 025 HUS-2232J
...
xx
WASHER 031 HUS-2231J
...
xx
WASHER 035 HUS-2230J
...
xx
WASHER 040 HUS-2229J
...
xx
WASHER 045 HUS-2228J
...
xx
WASHER 050 HUS-2227J
...
xx
WASHER 060 HUS-2226J
...
xx
"WASHER, PLAIN LT" HUS-105906X
...
12
O-RING T HUS-6725J
...
13
WASHER T HUS-120415X
...
14
WOODRUFF KEY HUS-2257J
...
15
SUB= 167148 HUS-106846X
...
16
SUB= 95-8060-6F HUS-106095X
...
17
"RING,RETAINING LT" HUS-105909X
...
18
"CHAIN,24 PTCH LT" HUS-105910X
...
19
BEARING.FLNG.5510 HUS-105911X
...
20
"GEAR, SPUR LT" HUS-105912X
...
21
SUB= 138246 HUS-105913X
...
22
KEY T HUS-120468X
...
23
KEY HUS-2242J
...
24
SHAFT INTERMEDIAT HUS-124638X
...
25
WOODRUFF KEY HUS-2244J
...
26
"RING,RETAINING LT" HUS-105916X
...
27
SPROCKET 18T T HUS-120470X
...
28
SPACER YT HUS-110070X
...
29
GEAR SPUR 40T HUS-109253X
...
30
SUB= 144893 HUS-109254X
...
31
GEAR SPUR 30T HUS-124644X
...
32
GEAR 25T LT HUS-108980X
...
33
GEAR SPUR 22 TT HUS-120406X
...
34
SUB= 134796 HUS-108455X
...
35
"WASHER, PLAIN LT" HUS-105925X
...
36
WASHER 025 HUS-2232J
...
37
SPACER HUS-108978X
...
38
GEAR COMB LT HUS-108981X
...
39
SUB= 124639X HUS-124369X
...
40
WASHER HUS-3422J
...
41
SPROCKET 9T LT HUS-105928X
...
42
SUB= 167148 HUS-106605X
...
43
WASHER LT HUS-108983X
...
xx
"WASHER, PLAIN LT" HUS-105930X
...
xx
"WASHER, PLAIN LT" HUS-105931X
...
xx
"WASHER, PLAIN LT" HUS-105932X
...
xx
WASHER HUS-3417J
...
xx
"WASHER, PLAIN LT" HUS-106097X
...
xx
WASHER 031 HUS-2264J
...
xx
"WASHER, PLAIN LT" HUS-106098X
...
xx
WASHER 040 HUS-2265J
...
xx
WASHER PLAIN HUS-106586X
...
xx
"WASHER, PLAIN LT" HUS-106587X
...
44
SHAFT DRIVE HUS-124640X
...
45
"SCREW, TAPPING LT" HUS-106596X
...
46
SUB= 144893 HUS-106151X
...
47
GEAR SPUR 20T HUS-124641X
...
48
"GEAR, SPUR 25T LT" HUS-106589X
...
49
GEAR 28T T HUS-120408X
...
50
"GEAR, SPUR 31T LT" HUS-105937X
...
51
WASHER 060 HUS-2226J
...
52
SUB= 134401 HUS-2272J
...
53
WASHER 062 HUS-2263J
...
54
SUB= 154658 HUS-120474X
...
55
GEAR LT HUS-120409X
...
56
"RING,RETAINING LT" HUS-105941X
...
57
SUB= 120478X HUS-110071X
...
58
SHAFT T HUS-120952X
...
59
"GEAR,MITER 15T YT" HUS-106592X
...
60
SUB= 154659 HUS-120475X
...
61
"HOUSING, LOWER" HUS-124642X
...
62
PUCK T HUS-120961X
...
63
BRAKE DISC. T HUS-7294J
...
64
SPACER LT HUS-108989X
...
65
SUB= 918120953X HUS-120953X
...
66
PIN T HUS-120954X
...
67
SCREW T HUS-120955X
...
68
LEVER ACTUATOR HUS-108992X
...
69
WASHER LT HUS-108996X
...
70
NLA HUS-120956X
...
71
NUT.LOCK.5/16-24 HUS-73810500
...
72
SUB= 126976X HUS-120416X
