Husqvarna RL1844B (1991) Tractor

Model: RL1844B (1991)

Back To Assemblies

Save Part Not Listed?
product name

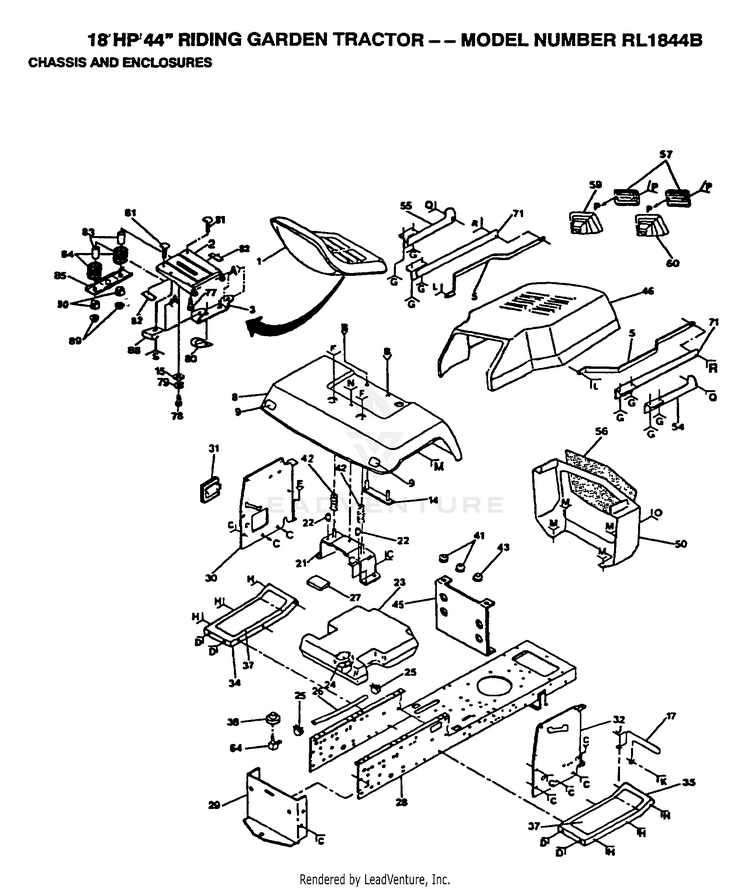

CHASSIS AND ENCLOSURES

...
...
1
SUB= 140121 HUS-127433
...
2
SUB= 155925 HUS-124294X
...
3
SUB= 140551 HUS-126656X
...
4
SUB= 139888 HUS-105529X
...
5
NLA HUS-109587X
...
6
SUB= 73690500 HUS-73680500
...
7
SUB= 73690600 HUS-73680600
...
8
FENDER HUS-121642X419
...
9
REFLECTOR-TAIL YT HUS-106202X
...
11
SCREW HUS-17490612
...
12
WASHER HUS-19131312
...
13
SUB= 74780612 HUS-74760612
...
15
SUB= 140675 HUS-105511X
...
17
GUARD MUFFLER HYT HUS-108885X
...
18
NUT HUS-73510600
...
20
WASHER HUS-19131614
...
21
SUB= 137113 HUS-105509X
...
22
NUT-PUSH YT HUS-105531X
...
23
SUB= 151346 HUS-127334X
...
24
"BOLT,SHOULDER" HUS-124549X
...
25
HOSE CLAMP HUS-123487X
...
26
SUB= 8543R HUS-5277J
...
28
CHASSIS HUS-127166X
...
29
DRAWBAR LT/YT HUS-127866
...
30
SUB= 532132072 HUS-109665X
...
31
COVER ACCESS HUS-121794X
...
32
PANEL DASH RH YT HUS-106976X
...
33
BOLT LT HUS-74760412
...
35
FOOTREST RH HUS-105464X419
...
36
BOLT HUS-72140606
...
37
"PAD,FOOTREST" HUS-128866
...
38
BUSHING OUTLET T HUS-3645J
...
39
LOCKWASHER HUS-10040400
...
41
SNAP BUSHING T HUS-9151R
...
42
SPRING COMPRESSIO HUS-124181X
...
43
SUB= 9151R HUS-110436X
...
44
WASHER HUS-19090816
...
45
NLA HUS-104920X
...
46
SUB= 3607J419 HUS-3607J366
...
48
SUB= 73690400 HUS-73680400
...
49
SCREW LT HUS-17490608
...
50
GRILL T HUS-5351J419
...
54
STRAP ASSY T HUS-677A876
...
55
STRAP ASSY T HUS-677A875
...
56
SCREEN GRILL GTV HUS-101235L
...
57
LENS T HUS-109671X
...
58
SCREW HUS-17990808
...
59
SUB= 7606J361 HUS-7606J366
...
60
SUB= 7607J361 HUS-7607J366
...
63
BOLT HUS-74760616
...
64
FUEL TANK STEM GT HUS-8710J
...
66
SCREW GTV HUS-17490616
...
67
WASHER HYT HUS-19131616
...
68
WASHER HUS-19131316
...
69
SCREW HUS-17511208
...
70
SUB= 19071018 HUS-8019J
...
71
STRAP ASSY-REAR T HUS-677A432
...
72
SUB= 17521312 HUS-17411310
...
73
BOLT T HUS-7605J
...
74
SUB= 50675 HUS-73220400
...
75
"BOLT,SHOULDER" HUS-124549X
...
77
"BOLT,SHOULDER" HUS-127018X
...
78
BOLT HUS-74780814
...
79
LOCKWASHER HUS-10040800
...
80
CLIP T HUS-2751R
...
81
BOLT HUS-72170410
...
82
STRIP FORM HUS-121251X
...
83
SPACER SPLIT HUS-121249X
...
84
SPRING COMPRESSED HUS-123740X
...
85
BRKT SWITCH HUS-121246X
...
86
SUB= 71031008 HUS-74641008
...
87
"NUT,KEPS" HUS-73951000
...
88
CLIP T HUS-4171R
...
89
SUB= 73900400 HUS-123976X
...
90
BUSHING HUS-121248X
...
xx
NLA HUS-127043
...
xx
DECAL PANEL T HUS-127042
...
xx
NLA HUS-127041
...
xx
NLA HUS-127040
...
xx
NLA HUS-127036
...
xx
"DECAL,FENDER" HUS-127037
...
xx
SUB= 146046 HUS-109199X
...
xx
DECAL HUS-120822X
...
xx
DECAL T HUS-101892X
...
xx
DECAL DASH HUS-121892X
