Husqvarna RL1844B (1991) Tractor

Model: RL1844B (1991)

Back To Assemblies

Save Part Not Listed?
product name

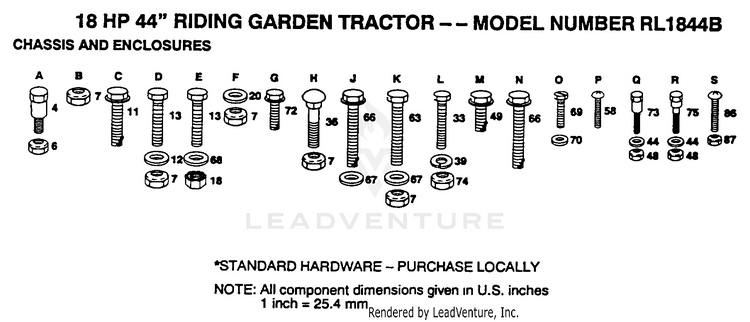

HARDWARE (CHASSIS AND ENCLOSURES)

...
...
4
SUB= 139888 HUS-105529X
...
6
SUB= 73690500 HUS-73680500
...
7
SUB= 73690600 HUS-73680600
...
11
SCREW HUS-17490612
...
12
WASHER HUS-19131312
...
13
SUB= 74780612 HUS-74760612
...
18
NUT HUS-73510600
...
20
WASHER HUS-19131614
...
33
BOLT LT HUS-74760412
...
36
BOLT HUS-72140606
...
39
LOCKWASHER HUS-10040400
...
44
WASHER HUS-19090816
...
48
SUB= 73690400 HUS-73680400
...
49
SCREW LT HUS-17490608
...
58
SCREW HUS-17990808
...
63
BOLT HUS-74760616
...
66
SCREW GTV HUS-17490616
...
67
WASHER HYT HUS-19131616
...
68
WASHER HUS-19131316
...
69
SCREW HUS-17511208
...
70
SUB= 19071018 HUS-8019J
...
72
SUB= 17521312 HUS-17411310
...
73
BOLT T HUS-7605J
...
74
SUB= 50675 HUS-73220400
...
75
"BOLT,SHOULDER" HUS-124549X
...
86
SUB= 71031008 HUS-74641008
...
87
"NUT,KEPS" HUS-73951000
