Husqvarna RL1844B (1991) Tractor

Model: RL1844B (1991)

Back To Assemblies

Save Part Not Listed?
product name

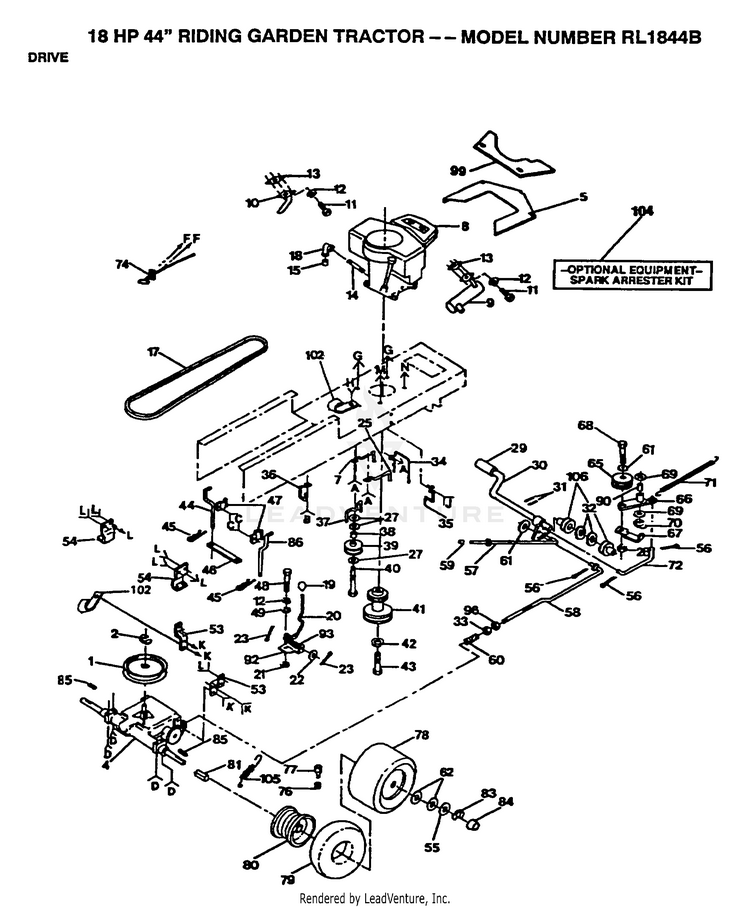

DRIVE

...
...
1
"PULLEY,TRANSAXLE" HUS-123667X
...
2
RING HUS-12000004
...
4
SUB= 137367 HUS-124162X
...
5
SHIELD HEAT FRT HUS-123190X
...
6
WASHER HUS-19131314
...
7
KEEPER BELT ENGLH HUS-121218X
...
8
ENGINE HUS-110928X
...
9
MUFFLER HYT HUS-108373X
...
10
EXHAUST TUBE T HUS-100229L
...
11
SUB= 74780414 HUS-74780412
...
12
LOCKWASHER HUS-10040400
...
13
SUB= 272250 HUS-8545J
...
14
PIPE NIPPLE LT HUS-13280336
...
15
COUPLING LT HUS-13300300
...
17
BELT-V HUS-125908X
...
18
ELBOW HUS-13200300
...
19
KNOB T (1/2-HOLE) HUS-106933X
...
20
ROD SHIFTER HUS-124461X
...
21
WASH-SHFT PLT LT HUS-105701X
...
22
WASHER HUS-19151216
...
23
PIN COTTER 1/8 HUS-76020416
...
24
SCREW HUS-17490612
...
25
"KEEPER,BLT ENG LT" HUS-105730X
...
26
BOLT HUS-74760616
...
27
WASHER HUS-19131312
...
28
SUB= 73690600 HUS-73680600
...
29
PEDAL COVER T HUS-8883R
...
30
SUB= 149001 HUS-122424X
...
31
SUB= 2882J HUS-1572H
...
32
WASHER LT HUS-19211616
...
33
NUT HUS-73800600
...
34
BELT GUIDE HUS-121440X
...
35
BELT GUIDE HUS-121441X
...
36
SUB= 140312 HUS-104777X
...
37
BELT KEEPER LT HUS-109070X
...
38
SPACER T HUS-4470J
...
39
PULLEY.IDLER.FLAT HUS-123674X
...
40
BOLT HUS-74760644
...
41
SUB= 137326 HUS-105731X
...
42
LOCKWASHER HUS-10040700
...
43
BOLT HUS-71130720
...
44
KEEPER BELT HUS-122067X
...
45
SPRING.RETAINER HUS-4921H
...
46
STRAP LOCATOR HUS-122066X
...
47
CLAMP LT HUS-106190X
...
48
SUB= 74550412 HUS-71040412
...
49
WASHER LT HUS-19091210
...
50
BOLT HUS-74760512
...
51
SUB= 73690500 HUS-73680500
...
52
SUB= 74780544 HUS-74760544
...
53
STRAP TORQUE HUS-121520X
...
54
BRACKET LT HUS-109167X
...
55
WASHER HUS-121748X
...
56
COTTER PIN HUS-76020412
...
57
ROD BRAKE PARK HUS-125637X
...
58
BRAKE ROD LT HUS-110437X
...
59
PLUNGER CAP T HUS-71673
...
60
SPRING ROD LT HUS-106888X
...
61
WASHER HUS-19131316
...
62
WASHER HUS-121749X
...
65
SUB= 139245 HUS-123766X
...
66
ARM IDLER HUS-123789X
...
67
RETAIN BELT HUS-123205X
...
68
SUB= 74930624 HUS-74760624
...
69
WASHER LT HUS-110812X
...
70
KLIP RING HUS-12000039
...
71
"SPRING, RETURN LT" HUS-105709X
...
72
"LINK, CLUTCH T" HUS-105710X
...
74
SUB= 133439 HUS-121732X
...
75
SCREW LT HUS-17720410
...
76
VALVE CAP HUS-59192
...
77
VALVE STEM LT HUS-65139
...
78
SUB= 918122082X HUS-122082X
...
79
TUBE.18X9.5-8 HUS-7152J
...
80
RIM HUS-108457X311
...
81
SPACER LT HUS-109502X
...
83
E-RING LT HUS-12000001
...
84
HUB CAP HUS-104757X
...
85
SQUARE KEY HUS-123583X
...
86
KEEPER BELT HUS-122068X
...
87
SCREW LT HUS-17490624
...
89
SUB= 74780612 HUS-74760612
...
90
"LY, BEARING" HUS-105706X
...
92
PLATE SHIFT LT HUS-106919X
...
93
SPRING LT HUS-105700X
...
94
LOCKWASHER HUS-11050600
...
95
NUT HUS-73510600
...
96
NUT HUS-73350600
...
98
WASHER HUS-19132012
...
99
REAR BAFFLE T HUS-109740X
...
101
SCREW HUS-17490512
...
102
CLIP T HUS-2751R
...
104
SUB= 132922 HUS-100091M
...
105
SUB= 146682 HUS-110422X
...
106
NYLON BEARING HUS-120183X
...
xx
DECAL HUS-121120X
