Husqvarna RL1444B (1991) Tractor

Model: RL1444B (1991)

Back To Assemblies

Save Part Not Listed?
product name

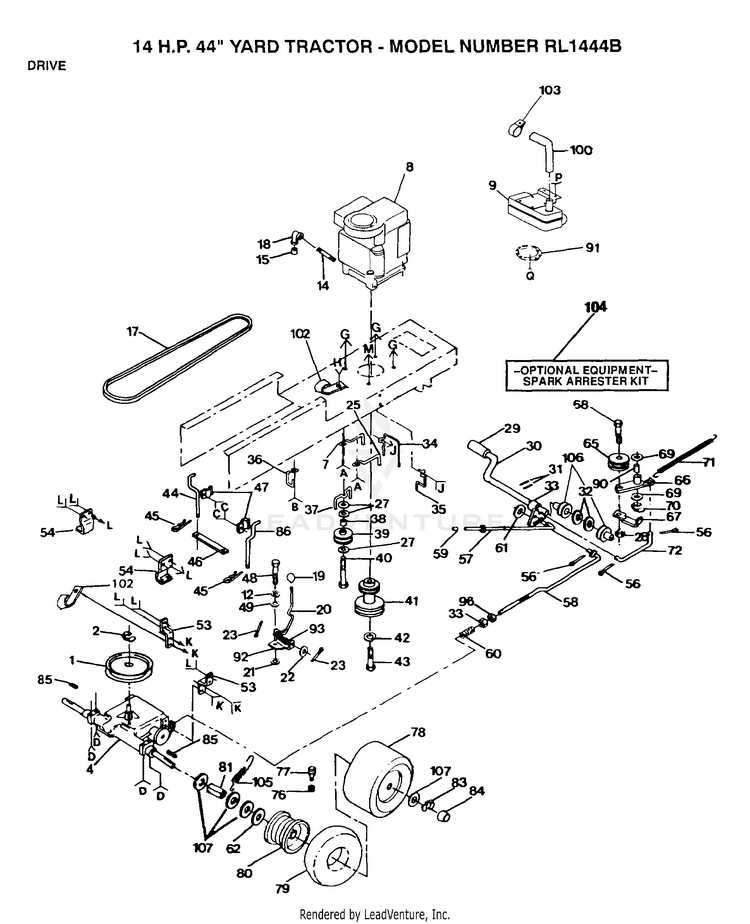

DRIVE

...
...
1
PULLEY TRANS HUS-123666X
...
2
SUB= 2267J HUS-12000028
...
4
SUB= 137367 HUS-120898X
...
7
KEEPER BELT ENGLH HUS-121218X
...
8
ENGINE HUS-124401X
...
9
MUFFLER HUS-123941X
...
12
LOCKWASHER HUS-10040400
...
14
PIPE NIPPLE HUS-13280324
...
17
BELT-V.90.0.GD.DR HUS-125907X
...
19
CONTROL KNOB LT HUS-106279X
...
21
WASH-SHFT PLT LT HUS-105701X
...
22
WASHER HUS-19151216
...
23
PIN COTTER 1/8 HUS-76020416
...
25
"KEEPER,BLT ENG LT" HUS-105730X
...
27
WASHER HUS-19131312
...
28
SUB= 73690600 HUS-73680600
...
29
PEDAL COVER T HUS-8883R
...
30
SUB= 149001 HUS-122424X
...
31
SUB= 2882J HUS-1572H
...
32
WASHER LT HUS-19211616
...
33
NUT HUS-73800600
...
34
BELT GUIDE HUS-121440X
...
35
BELT GUIDE HUS-121441X
...
36
SUB= 140312 HUS-104777X
...
37
BELT KEEPER LT HUS-109070X
...
38
SPACER T HUS-4470J
...
39
PULLEY.IDLER.FLAT HUS-123674X
...
40
BOLT HUS-74760644
...
41
SUB= 137326 HUS-105731X
...
42
LOCKWASHER HUS-10040700
...
43
BOLT HUS-71130720
...
44
KEEPER BELT LH HUS-123662X
...
45
SPRING.RETAINER HUS-4921H
...
46
STRAP LOCATOR HUS-123770X
...
47
CLAMP LT HUS-106190X
...
48
SUB= 74550412 HUS-71040412
...
49
WASHER LT HUS-19091210
...
53
STRAP TORQUE HUS-121520X
...
54
BRACKET LT HUS-109167X
...
56
COTTER PIN HUS-76020412
...
57
SUB= 128904 HUS-125638X
...
58
BRAKE ROD LT HUS-110437X
...
59
SUB= 71673 HUS-7733J
...
60
SPRING ROD LT HUS-106888X
...
61
WASHER HUS-19131316
...
62
WASHER HUS-121748X
...
65
SUB= 139245 HUS-123766X
...
66
ARM IDLER HUS-123789X
...
67
RETAIN BELT HUS-123205X
...
69
WASHER LT HUS-110812X
...
70
KLIP RING HUS-12000039
...
71
"SPRING, RETURN LT" HUS-105709X
...
72
"LINK, CLUTCH T" HUS-105710X
...
76
VALVE CAP HUS-59192
...
77
VALVE STEM LT HUS-65139
...
78
SUB= 122074X HUS-106268X
...
79
TUBE.18X9.5-8 HUS-7152J
...
80
SUB= 106108X427 HUS-106108X311
...
81
SPACER LT HUS-109502X
...
83
E-RING LT HUS-12000001
...
84
HUB CAP HUS-104757X
...
85
SQUARE KEY HUS-123583X
...
86
KEEPER BELTRH HUS-123663X
...
90
"LY, BEARING" HUS-105706X
...
91
DEFLECTOR.222573 HUS-101326L
...
92
PLATE SHIFT LT HUS-106919X
...
93
SPRING LT HUS-105700X
...
98
WASHER HUS-19132012
...
100
"TUBE,EXHAUST" HUS-123920X
...
102
CLIP T HUS-2751R
...
103
"CLAMP,MUFFLER" HUS-125589X
...
104
SPARK ARREST KIT HUS-123110X
...
105
SUB= 146682 HUS-110422X
...
106
NYLON BEARING HUS-120183X
...
107
WASHER HUS-121749X
