Husqvarna RL1444B (1991) Tractor

Model: RL1444B (1991)

Back To Assemblies

Save Part Not Listed?
product name

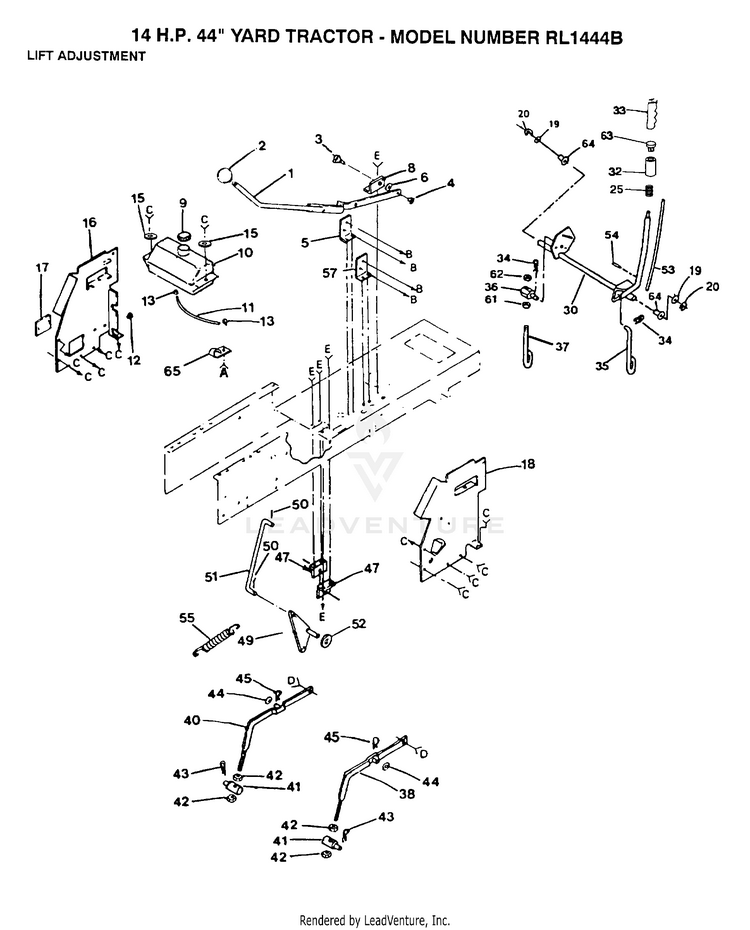

LIFT ADJUSTMENT

...
...
1
SUB= 532124429 HUS-124429X
...
2
SUB= 106932X HUS-7803J
...
3
"BOLT, SHOULDER LT" HUS-106451X
...
4
SUB= 73690600 HUS-73680600
...
5
"BRACKET,SWITCH LT" HUS-106452X
...
6
WASHER T HUS-19171516
...
8
"SUP,LVR,CLUTCH LT" HUS-106447X
...
9
SUB= 158990 HUS-123549X
...
10
TANK.FUEL.LT. HUS-109202X
...
11
FUEL LINE T HUS-8548R
...
12
SUB= 532124028 HUS-124028X
...
13
HOSE CLAMP HUS-123487X
...
15
WASHER HUS-19091416
...
16
PANEL DASH LH HUS-122795X
...
17
COVER ACCESS HUS-121794X
...
18
SUB= 155934X010 HUS-124031X
...
19
WASHER HUS-19211416
...
20
SUB= 2225J HUS-12000002
...
25
SUB= 532122512 HUS-122512X
...
30
"SHAFT,LIFT" HUS-122516X
...
32
SUB= 125925X HUS-122364X
...
33
GRIP HUS-109413X
...
34
SUB= 85902 HUS-4939M
...
35
LIFT LINK LT HUS-110029X
...
36
SUB= 132793 HUS-110447X
...
37
PIVOT PIN T HUS-110448X
...
38
RH SUSP ARM ASM HUS-121598X
...
40
LH SUSP ARM ASM HUS-121599X
...
41
SUB= 130171 HUS-106308X
...
42
NUT HUS-73220800
...
43
SPRING H HUS-9135R
...
44
WASHER T HUS-19171516
...
45
SPRING.RETAINER HUS-4921H
...
47
"BRKT,BELLCRAN T" HUS-106444X
...
49
"T, BELLCRANK" HUS-109728X
...
50
COTTER PIN HUS-76020412
...
51
SUB= 532124444 HUS-124444X
...
52
WASHER HUS-19131410
...
53
SUB= 136973 HUS-122514X
...
54
PIN-GROOVE LT HUS-105767X
...
55
SUB= 532124446 HUS-124446X
...
57
BRACKET LT HUS-108236X
...
62
NUT LOCK YTH HUS-73710700
...
63
SUB= 125925X HUS-124385X
...
64
NYLON BEARING HUS-120183X
...
65
INSUL CLIP T HUS-5320R
