Husqvarna RL1444AR (1999 & Before) Tractor

Model: RL1444AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

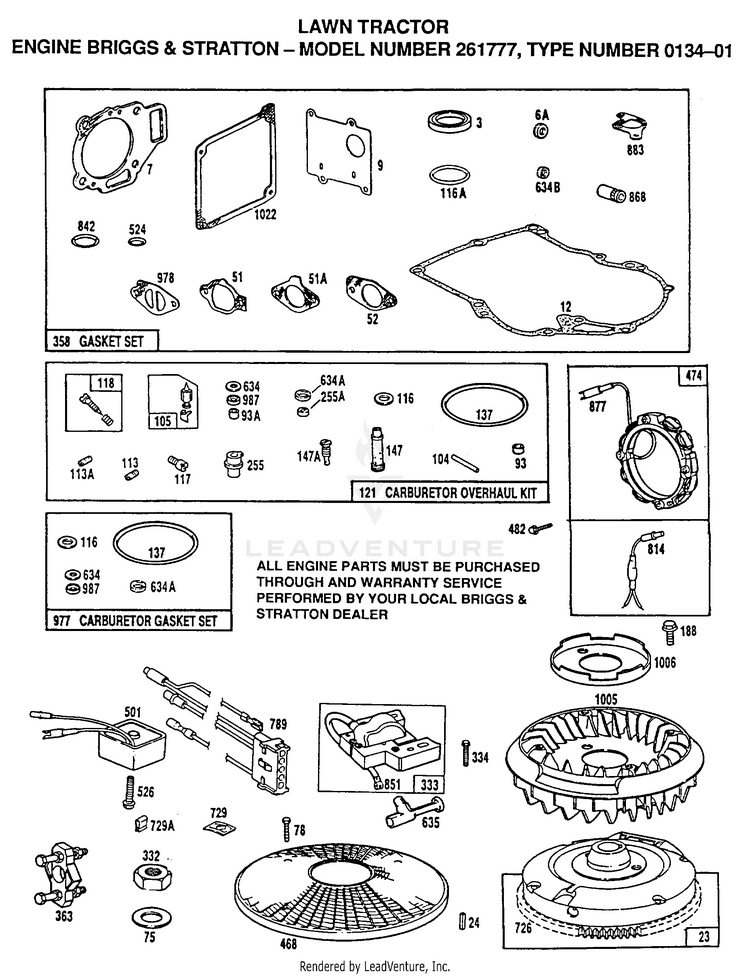

ENGINE/B&S

...
...
1
CYLINDER ASSY HUS-492034
...
2
BEARING HUS-492036
...
3
SEAL HUS-492029
...
5
HEAD-CYLINDER HUS-492154
...
6
WASHER HUS-94340
...
6A
WASHER & SEAL HUS-492063
...
7
GASKET HUS-272126
...
8
BREATHER ASSY HUS-492180
...
9
GASKET HUS-272120
...
10
SCREW HUS-810050
...
10A
SCREW HUS-810057
...
11
TUBE HUS-492422
...
12
GASKET HUS-272124
...
13
SCREW HUS-94335
...
15
PLUG, OIL DRAIN HUS-94239
...
15A
PLUG HUS-260022
...
16
CRANKSHAFT HUS-262486
...
18
BASE ASSY HUS-492203
...
22
SCREW HUS-810081
...
23
FLYWHEEL & RING GEAR ASSY HUS-491156
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON ASSY HUS-492110
...
xx
PISTON ASSY HUS-492933
...
xx
PISTON ASSY HUS-492934
...
xx
PISTON ASSY HUS-492935
...
26
RING SET HUS-492111
...
xx
RING SET HUS-492936
...
xx
RING SET HUS-492937
...
xx
RING SET HUS-492938
...
27
LOCK HUS-262457
...
29
ROD ASSY HUS-4922113
...
31
WASHER HUS-94465
...
32
SCREW HUS-94327
...
33
VALVE HUS-492117
...
34
VALVE HUS-492116
...
35
SPRING HUS-262501
...
40
RETAINER HUS-262381
...
42
RETAINER HUS-492231
...
45
TAPPET HUS-262373
...
46
GEAR HUS-491619
...
51
GASKET HUS-272121
...
51A
GASKET HUS-272028
...
52
GASKET HUS-272029
...
75
WASHER HUS-224079
...
78
SCREW HUS-94417
...
84
PLUG HUS-492199
...
84A
PLUG HUS-94379
...
84B
PLUG, PIPE HUS-94497
...
93
BUSHING - THROTTLE SHAFT HUS-280926
...
93A
BUSHING - THROTTLE SHAFT HUS-280931
...
95
SCREW, VALVE MOUNTING HUS-94457
...
95A
SCREW, VALVE MOUNTING HUS-94466
...
98
SCREW HUS-492276
...
104
PIN, FLOAT HINGE HUS-231652
...
105
VALVE HUS-492188
...
108
VALVE HUS-224223
...
113
NOZZLE HUS-231696
...
113A
NOZZLE HUS-231697
...
116A
SEAL O-RING HUS-280801
...
xx
JET MAIN HUS-231669
...
118
VALVE ASSY HUS-492277
...
121
CARBURETOR OVERHAUL KIT HUS-492282
...
122
ADAPTER & GASKET ASSY HUS-491784
...
125
CARBURETOR ASSY HUS-492915
...
130
VALVE HUS-224224
...
131
SHAFT ASSY HUS-492278
...
133
FLOAT, BOWL HUS-492283
...
141
SHAFT ASSY HUS-492279
...
147
NOZZLE HUS-231719
...
147A
NOZZLE HUS-231659
...
164
MANIFOLD HUS-491876
...
166
STUD HUS-94342
...
166A
STUD HUS-94333
...
166B
STUD HUS-262471
...
171
NUT HUS-810056
...
186
CONNECTOR, IMPULSE PUMP HUS-230318
...
187
HOSE (CUT TO SUIT) HUS-393815
...
188
SCREW HUS-93659
...
189
WASHER HUS-810093
...
189A
WASHER HUS-810091
...
192
NUT HUS-491511
...
201
LINK HUS-262495
...
204
BUSHING, GOVERNOR LEVER, FLAT HUS-222962
...
206
ADJUSTER HUS-280847
...
208
ROD HUS-94393
...
209
SPRING HUS-262607
...
209A
SPRING HUS-262504
...
215
SPRING HUS-262506
...
216
LINK HUS-262494
...
219
GEAR HUS-492195
...
223
LEVER HUS-223940
...
224
RIVET, GOVERNOR CONTROL LEVER MOUNTING HUS-93491
...
227
LEVER ASSY HUS-491057
...
230
WASHER HUS-94423
...
232
SPRING HUS-262500
...
238
CAP HUS-262499
...
240
FILTER, FUEL HUS-394358
...
243
OIL PUMP SCREEN HUS-491722
...
248
DISC HUS-66504
...
249
VALVE HUS-491388
...
249A
VALVE HUS-492198
...
250
RETAINER HUS-223966
...
254
DRAIN, CARBURETOR BOWL HUS-492274
...
255
RETAINER HUS-280916
...
255A
RETAINER HUS-280910
...
265
CLAMP HUS-221535
...
277
WASHER HUS-810017
...
277A
WASHER HUS-94398
...
284
SCREW HUS-94505
...
294
SCREW HUS-810045
...
304
HOUSING BLOWER HUS-224239
...
305
SCREW HUS-810037
...
306
SHIELD HUS-223944
...
309
MOTOR & DRIVE ASSY HUS-490753
...
310
BOLT HUS-94169
...
311
SCREEN ROTATING HUS-490311
...
332
NUT HUS-810055
...
333
ARMATURE, MAGNETO HUS-492341
...
334
SCREW HUS-810035
...
337
PLUG, SPARK HUS-491055
...
346
SCREW HUS-810047
...
353
WASHERLOCK HUS-92791
...
354
NUT, HEX HUS-90576
...
358
GASKET SET HUS-492271
...
363
PULLER, FLYWHEEL HUS-19203
...
367
SCREW HUS-810036
...
387
PUMP, FUEL HUS-491922
...
436
ELBOW HUS-213669
...
445
CARTRIDGE HUS-491021
...
467
KNOB, AIR CLEANER HUS-491875
...
468
SCREEN HUS-491793
...
474
STATOR, ALTERNATOR HUS-392595
...
482
SCREW HUS-810071
...
501
REGULATOR HUS-491546
...
510
DRIVE ASSY HUS-491836
...
513
CLUTCH ASSY HUS-398879
...
520
TERMINAL, SPADE HUS-93722
...
523
DIPSTICK HUS-491794
...
524
SEAL, FILLER TUBE HUS-280860
...
525
TUBE HUS-492398
...
526
SCREW HUS-810084
...
527
CLAMP HUS-221428
...
535
ELEMENT HUS-492947
...
544
ARMATURE ASSY HUS-492359
...
552
BUSHING HUS-231592
...
562
BOLT HUS-810072
...
573
PLATE HUS-491926
...
592
NUT HUS-810011
...
601
CLAMP HOSE HUS-93807
...
601A
CLAMP HUS-94487
...
613
SCREW HUS-810041
...
614
PIN HUS-94424
...
615
RING HUS-94400
...
615A
RING HUS-94392
...
615B
RING HUS-94399
...
616
CRANK HUS-491874
...
618
SPRING HUS-262563
...
621
SWITCH HUS-280979
...
634B
SEAL HUS-491880
...
635
ELBOW HUS-280897
...
657
SCREW HUS-94443
...
718
PIN HUS-231589
...
718A
PIN, DOWEL HUS-230192
...
725
SHIELD HUS-223943
...
725A
SHIELD HUS-491983
...
726
GEAR HUS-492230
...
728
SCREW HUS-810040
...
729
CLIP HUS-262617
...
729A
CLIP HUS-262616
...
729B
CLIP, DEBRIS HUS-224356
...
741
GEAR HUS-262370
...
758
COUNTERWEIGHT ASSY HUS-492187
...
759
PIN HUS-231608
...
783
GEAR HUS-280875
...
788
BRACKET HUS-224148
...
789
HARNESS HUS-491780
...
801
DRIVE END CAP ASSY HUS-490754
...
802
CAP ASSEMBLY, COMMUTATOR END HUS-490310
...
803
HOUSING ASSEMBLY HUS-399172
...
819
SCREW HUS-94337
...
832
GUARD HUS-224068
...
832A
COVER ASSY HUS-491980
...
842
SEAL, OIL FILLER CAP HUS-270920
...
847
DIPSTICK TUBE ASSY HUS-493232
...
851
TERMINAL, IGNITION CABLE HUS-221798
...
868
SEAL HUS-491020
...
869
SEAT HUS-262406
...
870
SEAT HUS-262405
...
871
BUSHING HUS-262378
...
872
COVER HUS-280975
...
876
RETAINER & PIN HUS-492360
...
877
CONNECTOR ASSEMBLY, TRI-CIRCUIT HUS-393537
...
883
GASKET HUS-272123
...
896
ROLL PIN HUS-94192
...
916
RACK, GEAR CONTROL HUS-280321
...
955
SCREW HUS-94460
...
975
BOWL ASSY HUS-492272
...
977
GASKET SET HUS-492281
...
978
GASKET HUS-272122
...
979
COVER HUS-492197
...
982
SCREW HUS-810040
...
985
INSULATOR ASSEMBLY HUS-398525
...
987
SEAL HUS-492172
...
1003
BRUSH SPRING SET HUS-490316
...
1005
FAN HUS-491792
...
1006
RETAINER FAN HUS-223726
...
1011
HOSE HUS-281001
...
1012
RETAINER HUS-280869
...
1022
GASKET HUS-272010
...
1023
COVER HUS-213303
...
1024
OIL PUMP ASSY HUS-492196
...
1026
ROD HUS-491695
...
1027
FILTER, OIL HUS-491056
...
1028
ADAPTER HUS-492251
...
1029
ARM HUS-223928
