Husqvarna RL1444AR (1999 & Before) Tractor

Model: RL1444AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

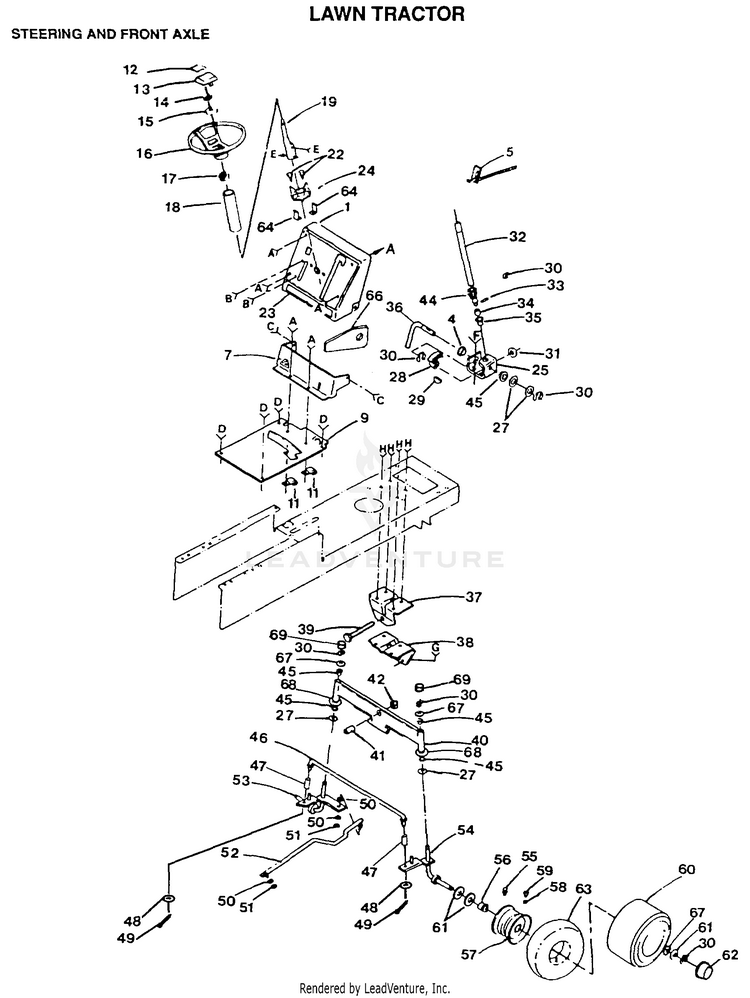

STEERING AND FRONT AXLE

...
...
1
DASH HUS-109283X016
...
4
NYLINER T HUS-109816X
...
5
SUB= 132771 HUS-124426X
...
7
DASH-LOWER LT HUS-105621X
...
9
SADDLE HUS-124464X013
...
11
CLIP T HUS-2751R
...
12
SUB= 127075 HUS-109325X
...
13
INSERT-WHEEL LT HUS-100710L
...
14
SUB= 73360800 HUS-73940800
...
15
WASHER HUS-100712K
...
16
SUB= 150547 HUS-100713N
...
17
ADAPTER LT HUS-100711L
...
18
SLEEVE T HUS-109285X
...
19
STEERING SHAFT HUS-123136X
...
22
SUB= 98000165 HUS-17431008
...
23
SUB= 138956 HUS-109821X
...
24
BUSHING T HUS-109284X
...
25
SUB= 110150X HUS-109432X
...
27
WASHER .T HUS-6266H
...
28
GEAR.SECTOR.HYT HUS-108684X
...
29
KEY-WOODRUFF LT HUS-106126X
...
30
RING HUS-12000029
...
31
WASHER YTV HUS-101930X
...
32
STEERING SHAFT T HUS-109068X
...
33
DRIVE PIN HUS-2882J
...
34
SHAFT SPACER LT HUS-74580
...
35
BUSHING HUS-71208
...
36
ROD STEERING T HUS-108683X
...
37
SUPPORT-SADDL T HUS-105663X
...
38
SUPPORT.SADDLE.FT HUS-105664X
...
39
BOLT LT HUS-74761060
...
40
SUB= 108075X HUS-105669X
...
41
BEARING HUS-110438X
...
42
"NUT-LOC,FLANGE LT" HUS-73901000
...
44
GEAR PINION T HUS-108685X
...
45
COL. SRTG. BEAR. HUS-3366R
...
46
ROD-TIE LT HUS-105715X
...
47
SUB= 126847X HUS-120754X
...
48
WASHER HUS-19131416
...
49
COTTER PIN HUS-76020412
...
50
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
51
SUB= 7810H HUS-73610600
...
52
LINK-DRAG LT HUS-105727X
...
53
SPINDLE-LH LT HUS-105656X
...
54
SUB= 130524 HUS-105654X
...
55
FITTING LT HUS-278H
...
56
"FLANGE, BEARING" HUS-9040H
...
57
SUB= 106732X427 HUS-106732X311
...
58
VALVE CAP HUS-59192
...
59
VALVE STEM LT HUS-65139
...
60
SUB= 122073X HUS-106222X
...
61
WASHER HUS-121749X
...
62
HUB CAP HUS-104757X
...
63
TUBE.5.3/4.5/6 HUS-59904
...
64
RETAINER T HUS-110130X
...
66
SUB= 110553X HUS-110307X
...
67
WASHER HUS-121748X
...
68
WASHER HUS-19272016
...
69
CAP HUS-121232X
