Husqvarna RL1442A (1992) Tractor

Model: RL1442A (1992)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
SUB= 132771 HUS-132772
...
2
SCREW LT HUS-17720410
...
3
ENGINE HUS-131956
...
4
"TUBE,EXHAUST" HUS-123920X
...
5
"CLAMP,MUFFLER" HUS-125589X
...
6
DEFLECTOR.222573 HUS-101326L
...
7
SUB= 17030814 HUS-17030808
...
9
PIPE NIPPLE HUS-13280324
...
10
ELBOW HUS-13200300
...
11
LOCKWASHER HUS-11050600
...
12
SCREW HUS-17490620
...
13
MUFFLER HUS-123941X
...
25
HEAT SHIELD HUS-128953
...
26
SCREW HUS-17021008
...
29
SPARK ARREST KIT HUS-123110X
...
30
TANK.FUEL.LT. HUS-109202X
...
31
HOSE CLAMP HUS-123487X
...
32
SUB= 158990 HUS-123549X
...
33
FUEL LINE T HUS-8548R
...
34
SUB= 532124028 HUS-124028X
...
35
SCREW HEX CRT HUS-17490412
...
36
WASHER HUS-19091416

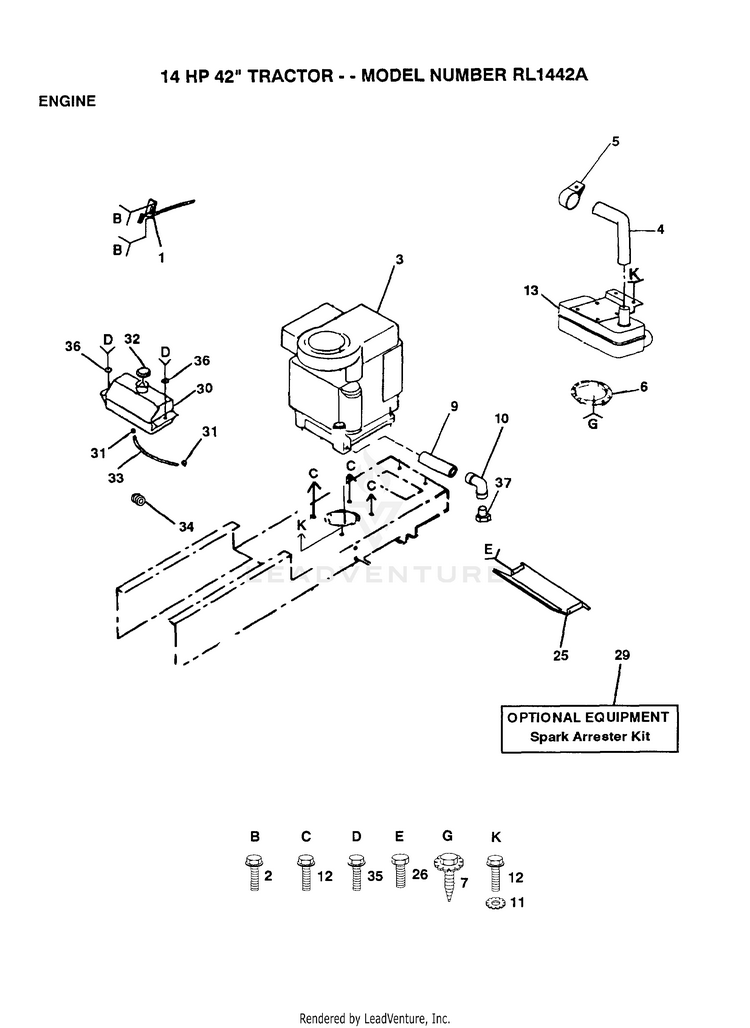

Schematic Image Zoomed
